114
Creating and Transmitting Screen Data
Section 4-1
Select “Tool Settings”.

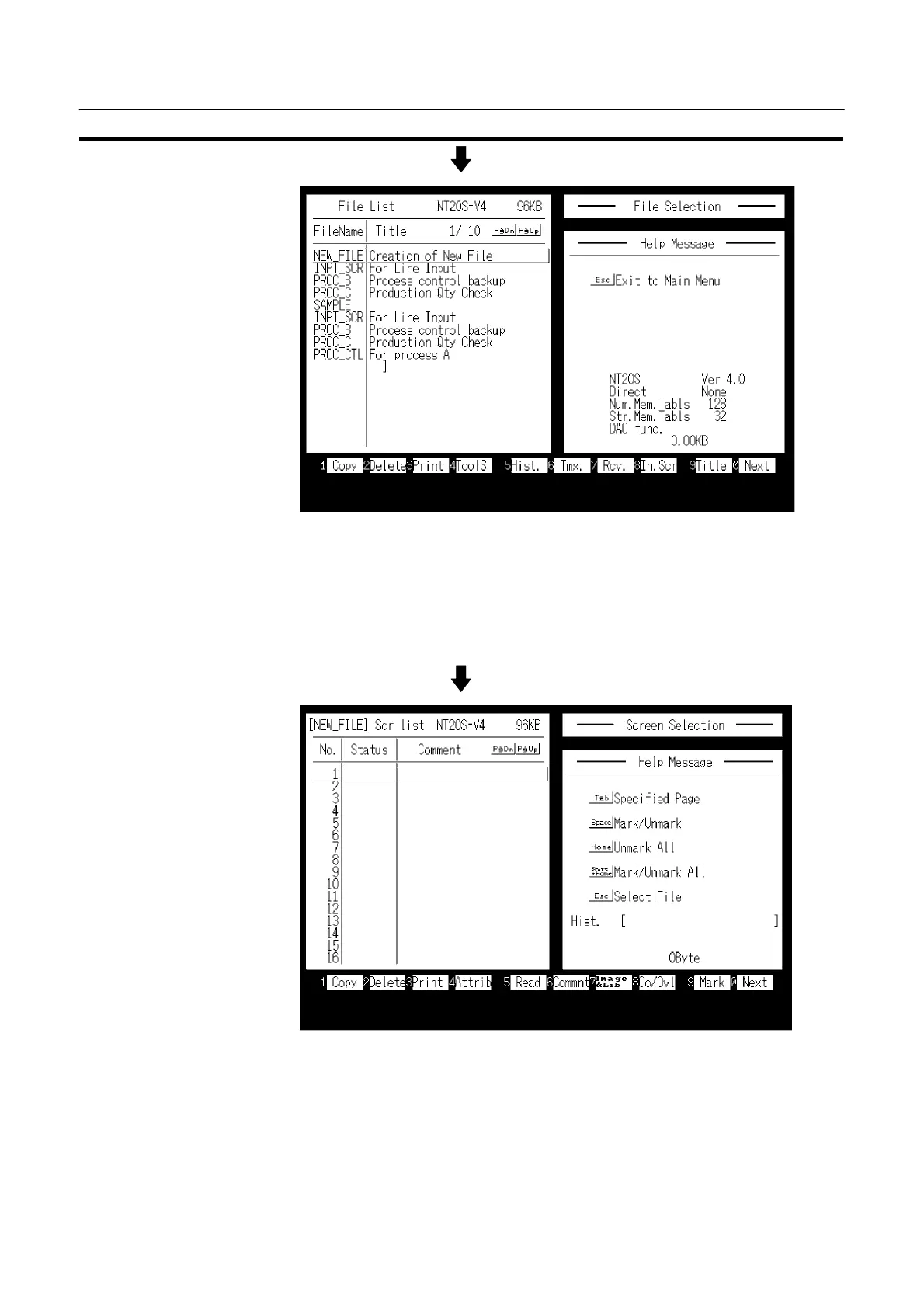

' Select a file used for storing the screen data for the NT20S in the “File List”
screen.
To create a new file, select “New File”.
To edit an existing file, select a file to edit.
Select “New File” and press [Enter]. Enter filename on completion of creation.
Select “Screen Creation”.
Select a screen number to edit in the selected file in the “Screen List” screen.
Note that when using the host link, NT link, or C200H direct communication, the PT
status control area and PT status notify area must be set as described below be-
fore selecting the screen number.
To read the screen data from other file, press the [F5] (Read) function key.
To Next Page
