30
Installation
Section 2-2

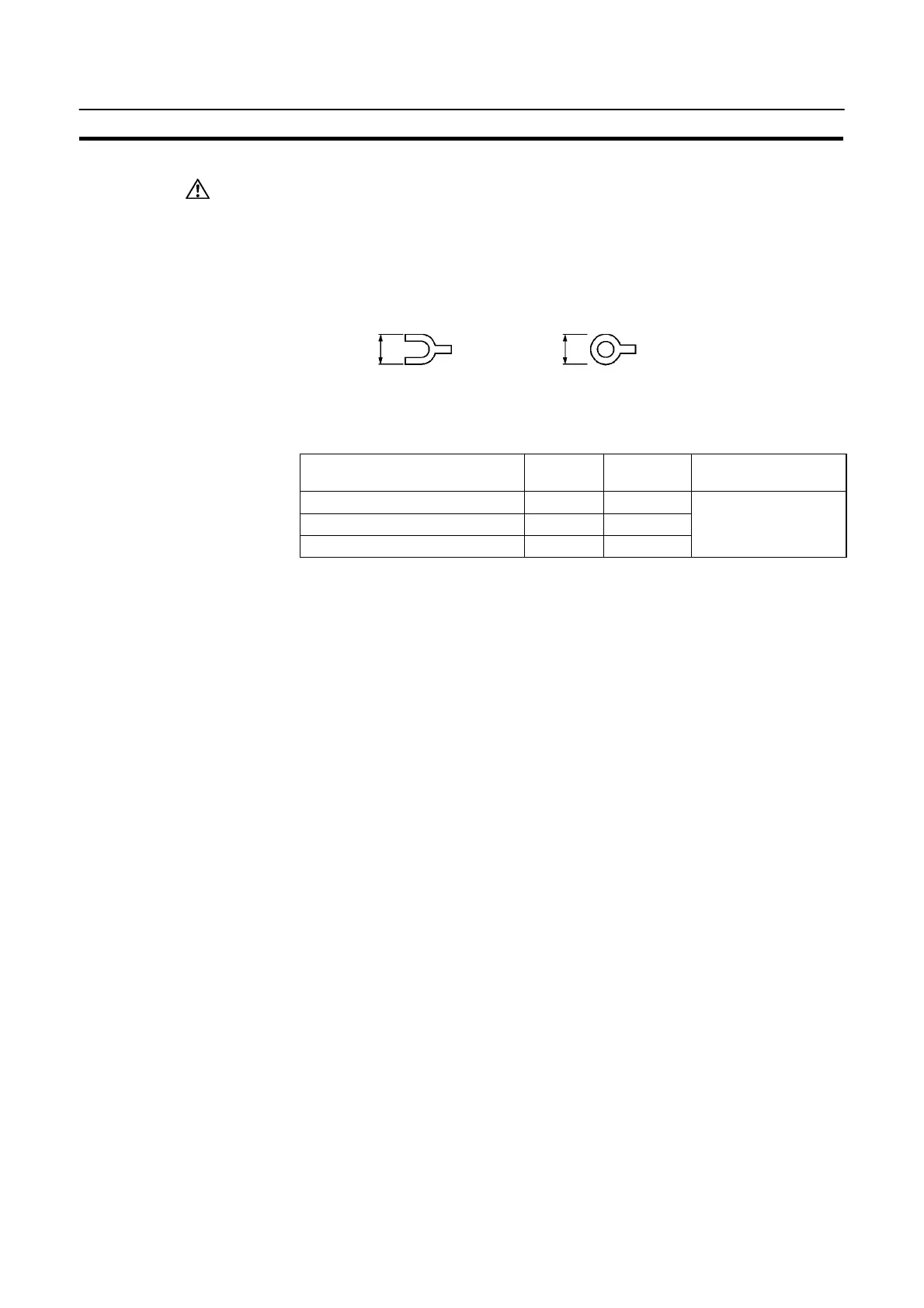

S Parts used for connection
Caution: For the connection to the power supply terminal block, twisted wires of 2 mm
2
or
greater cross sectional area and M3.5 size crimp terminals must be used.
Tighten the screws on the terminal block to a torque of 0.8N·m.
Otherwise fire may occur.
Fork type Round type
7 mm or less 7 mm or less
[Recommended terminals]
Maker
Type
(fork type)
Type
(round type)
Applicable Wire
(stranded wire)
Japan Solderless Terminal MFG 2-YS3A 2-3.5
Fuji Terminal 2-YAS3.5 V2-S3.5
2.00 to 2.63 mm
2
Nichifu Terminal 2Y-3.5 2-3.5
