Additional Information

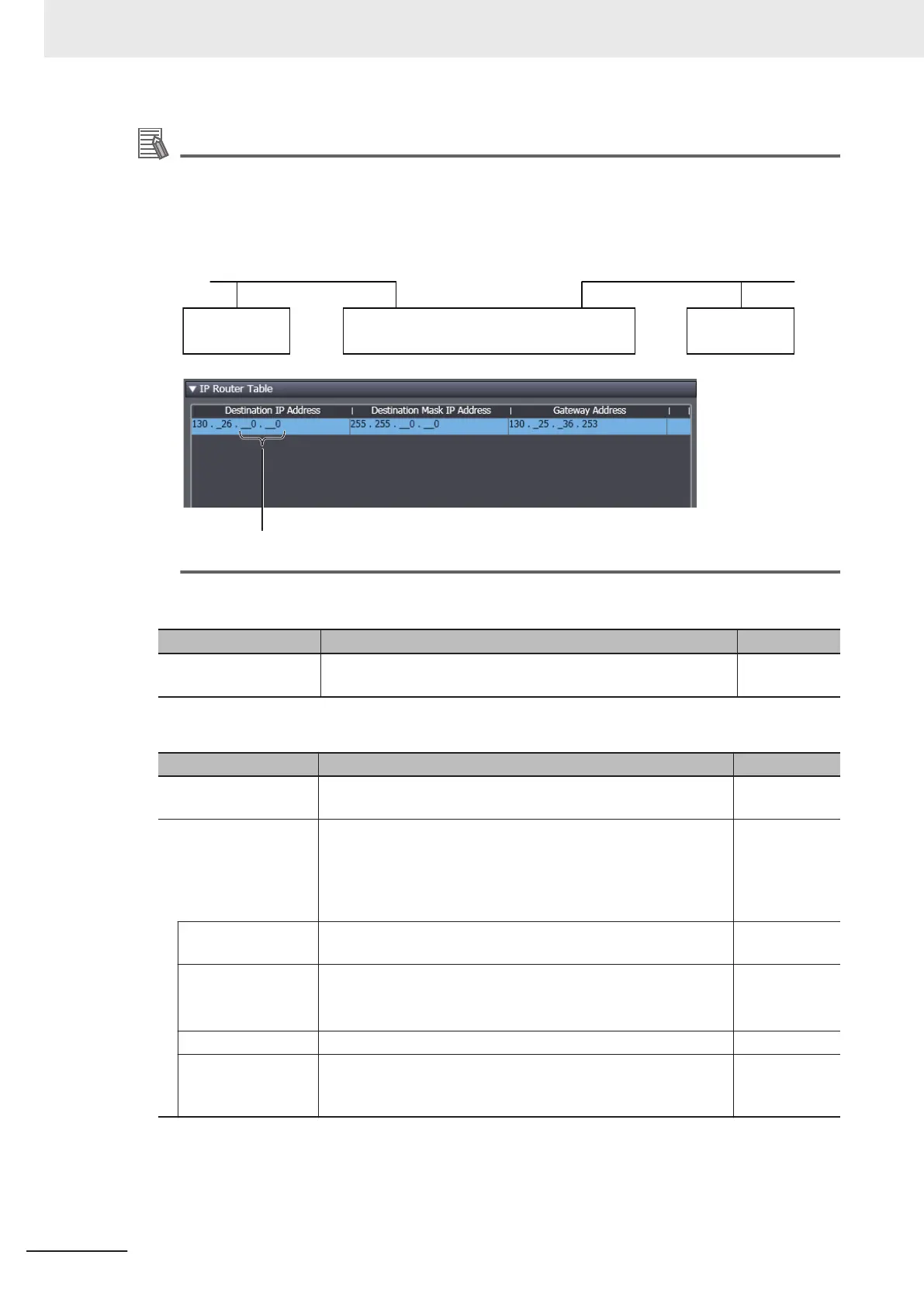

IP Router Table Setting Example
Set the following IP router table in node A to use tag data links or CIP message communica-
tions between node A and node B through the IP router
.
If you set the IP router table and execute a communications instruction from node A to node B,
node A sends packets addressed to the gateway IP address (130.25.36.253).
Node A
IP router or NX-series CPU Unit
Node B
The host fields are set to 0 in the destination IP address.
130. 25. XX. XX 130. 26. XX. XX
130.25.36.253 130.26.2.254

Port Forward (NX102 CPU Unit)
Setting Description Default
IP Forward Select whether to transfer IP packets between communications
ports.
Use

Packet Filter (NX102 CPU Unit)
Setting Description Default
Packet Filter Select whether or not to set conditions of IP packets to be re-
ceived at the communications port.
Do not use
Pass Frame Set the following items as the conditions of IP packets to be re-
ceived at the communications port. Y
ou can set the conditions
under which up to 32 packets are allowed to be received.
This setting is valid only when the Use Option is selected for
Packet Filter.
---
Port Select the communications port for which the Packet Filter is
used.
No. 1: Port 1
No. 2: Port 2
Specification Meth-
od
Method for specifying IP packets to be received.
IP address specification
any
*1
No. 1: any
No. 2: any
IP Address Specify an IP address that is allowed to be received. None
Mask Set the mask for the IP address allowed to be received. If you
select IP address specification for Specification Method,
255.255.255.255 is automatically set.
None
*1. If you select any, packets from any IP addresses will be received.
5 Sysmac Studio Settings for the Built-in EtherNet/IP Port
5-6
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
