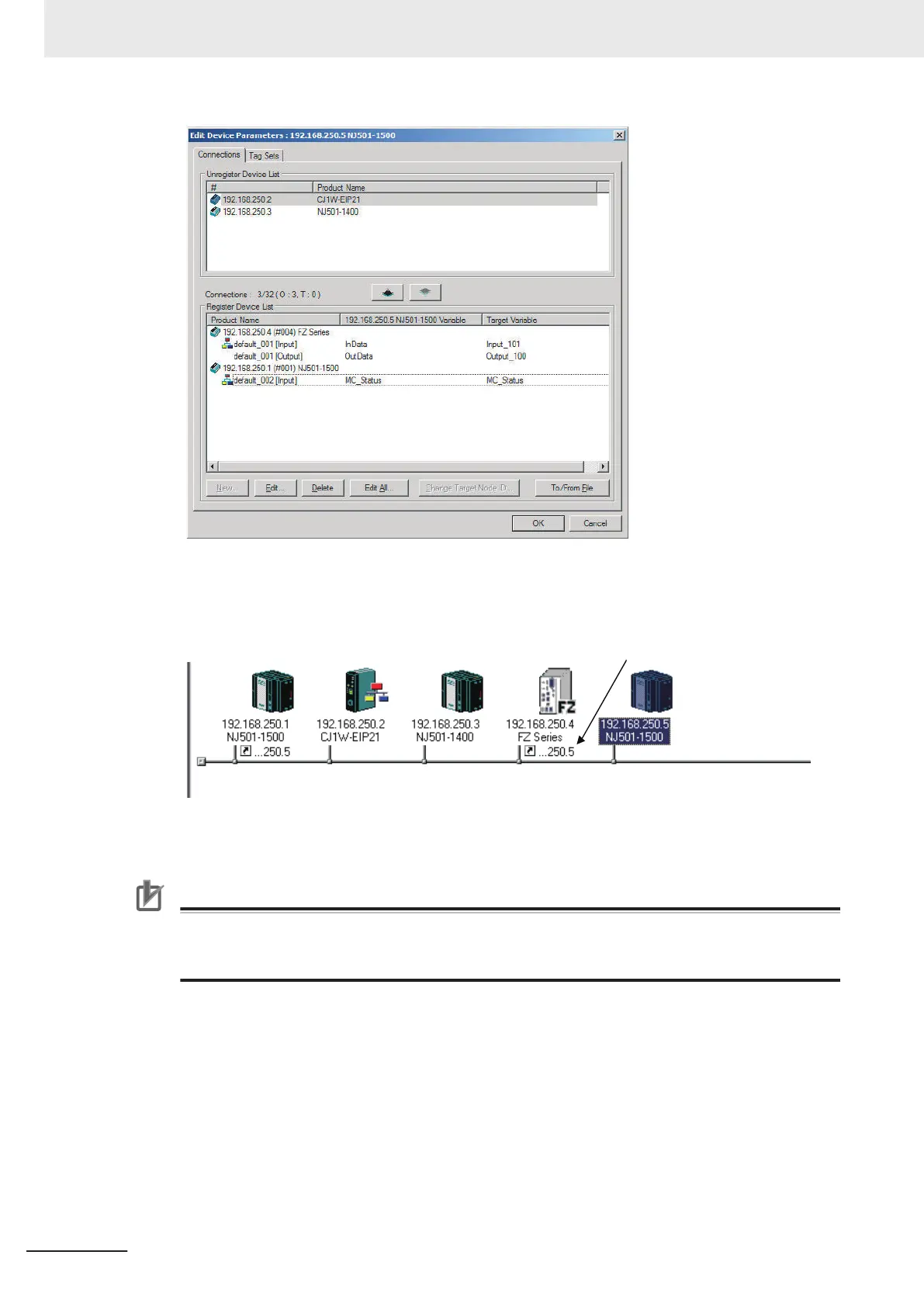

2 Click the OK Button. The following figure is displayed.
Indicates the IP address of the
originator where the connection
was set.
3 Repeat the connections setting procedure until all of the connections are set.
Precautions for Correct Use
After you have made all of the settings, always click the OK Button before you close the Edit
Device Parameters Dialog Box. If the Cancel
Button is clicked and the dialog box is closed, all
the settings you made here are discarded.
4 If you change the size of a tag set for the originator or a target node after the connection set-
tings, a parameter data mismatch will occur due to the size difference between them.
if you change the connection settings, be sure to check the connections. (Refer to
7-2-16 Checking Connections on page 7-76 for details.)
7 Tag Data Link Functions
7-42
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
