Device name Remarks
CJ1W-EIP21 (NJ) CJ1W-EIP21 mounted to NJ-series Controller
CJ1W-EIP21 CJ1W-EIP21 mounted to CJ1 CPU Unit
CJ1W-EIP21 (CJ2) CJ1W-EIP21 mounted to CJ2 CPU Unit
CJ2B-EIP21 Built-in EtherNet/IP port in CJ2H CPU Unit
CJ2M-EIP21 Built-in EtherNet/IP port in CJ2M CPU Unit
CS1W-EIP21 CS1W-EIP21 mounted to CS1 CPU Unit
NX701 Built-in EtherNet/IP port on NX-series CPU Unit
NX102-££££
NX1P2
NJ501-££££
NJ301-££££
NJ101
Built-in EtherNet/IP port on NJ-series CPU Unit
Use the following procedure to create connections (i.e., tag data links) by dragging and dropping devi-
ces.
1 Set the tags and tag sets for the target device that will be dragged.
•
Refer to 7-2-4 Creating Tags and Tag Sets on page 7-23 for information on the settings if the
target is one of the OMRON EtherNet/IP devices given above.
• If the target is another EtherNet/IP device, refer to the manual of that device and perform
settings as required.

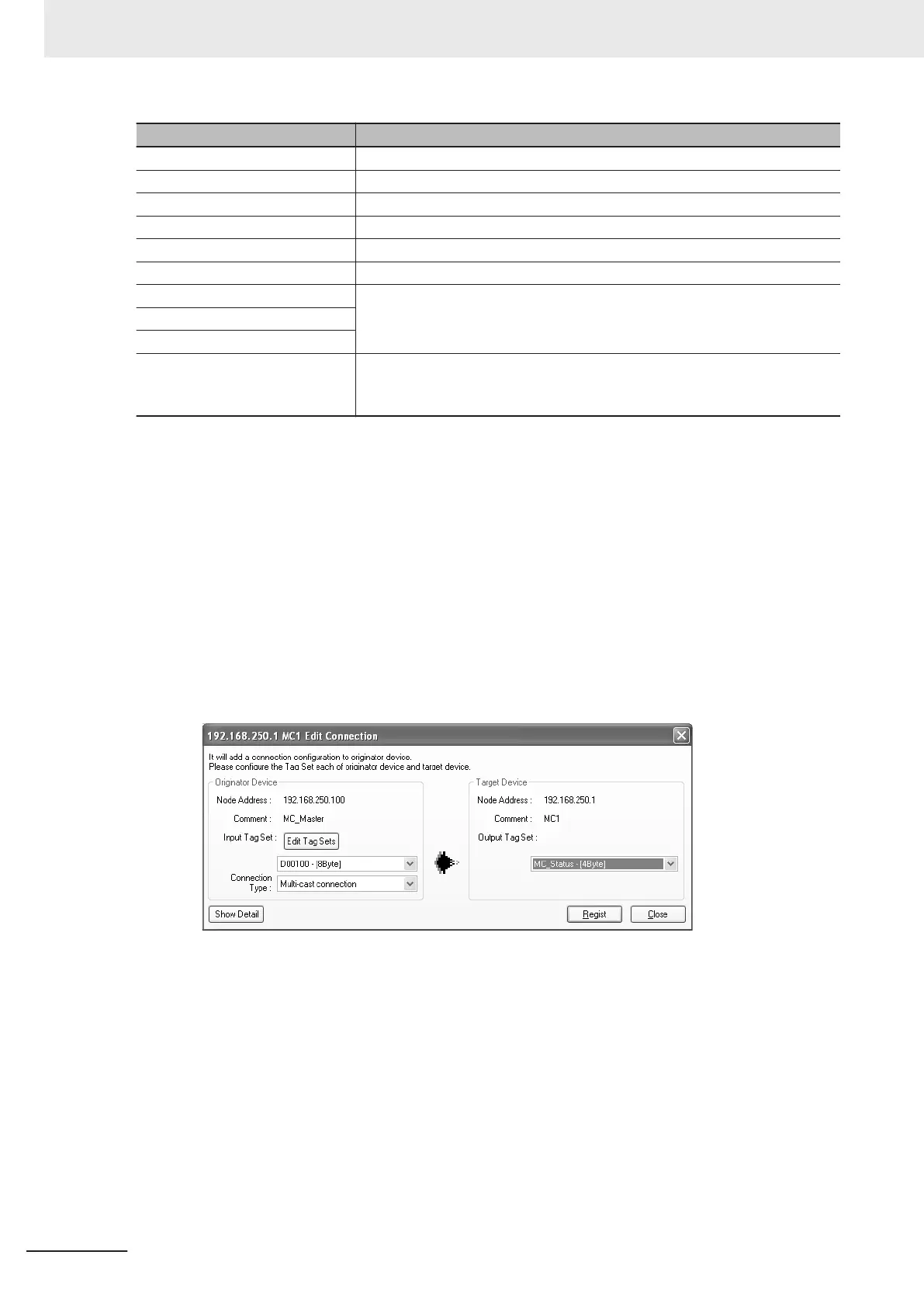

2 A dialog box as in the following figure for connection allocation will be displayed when you drag
the target device and drop it at the OMRON EtherNet/IP device.
•
Using One of the Above OMRON EtherNet/IP Devices As Target
Select an output tag set from the T
arget Device Area on the right side of the Edit
Connection Dialog Box, and then select an input tag set to receive the output tag set in the
Originator Device Area on the left.
• If there is no applicable input tag set at the originator, you can create a new one by using
the Edit Tag Sets Button and the Edit Tag Button.
• Using Other EtherNet/IP Devices as Target
7 Tag Data Link Functions
7-50
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
