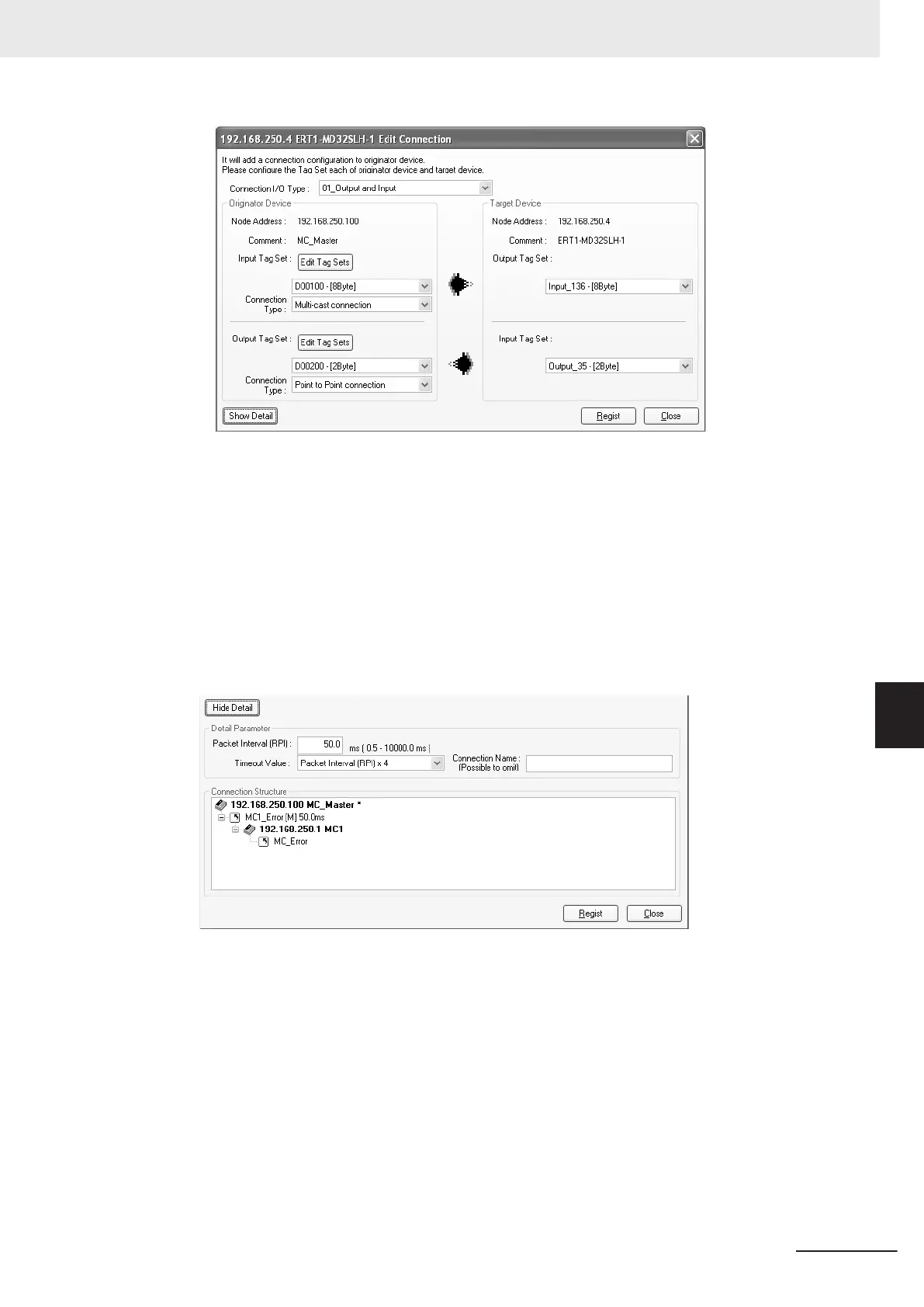

The Connection I/O T
ype list box in the upper part of the Edit Connection Dialog Box lists
connection I/O types. Select a connection I/O type according to your application.
• The connection I/O types that can be selected depend on the target device.
• Items that can be selected depend on the connection I/O type that is selected.
• Select the output, input, or both output and input tag sets at the target and specify the cor-
responding input, output, or both input and output tag sets at the originator.
• If there is no applicable tag set at the originator, you can create a new one by using the
Edit Tag Sets Button and the Edit Tag Button.
The following view will appear when you click the Show Detail Button.
The specified values for detailed parameters will be displayed. Change the values as required.
Connection names are automatically created using the following rule.
default_N (where N is a 3-digit number (001, 002, etc.) starting from 1)
7 Tag Data Link Functions
7-51
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-7 Creating Connections by Dragging and Dropping Devices
