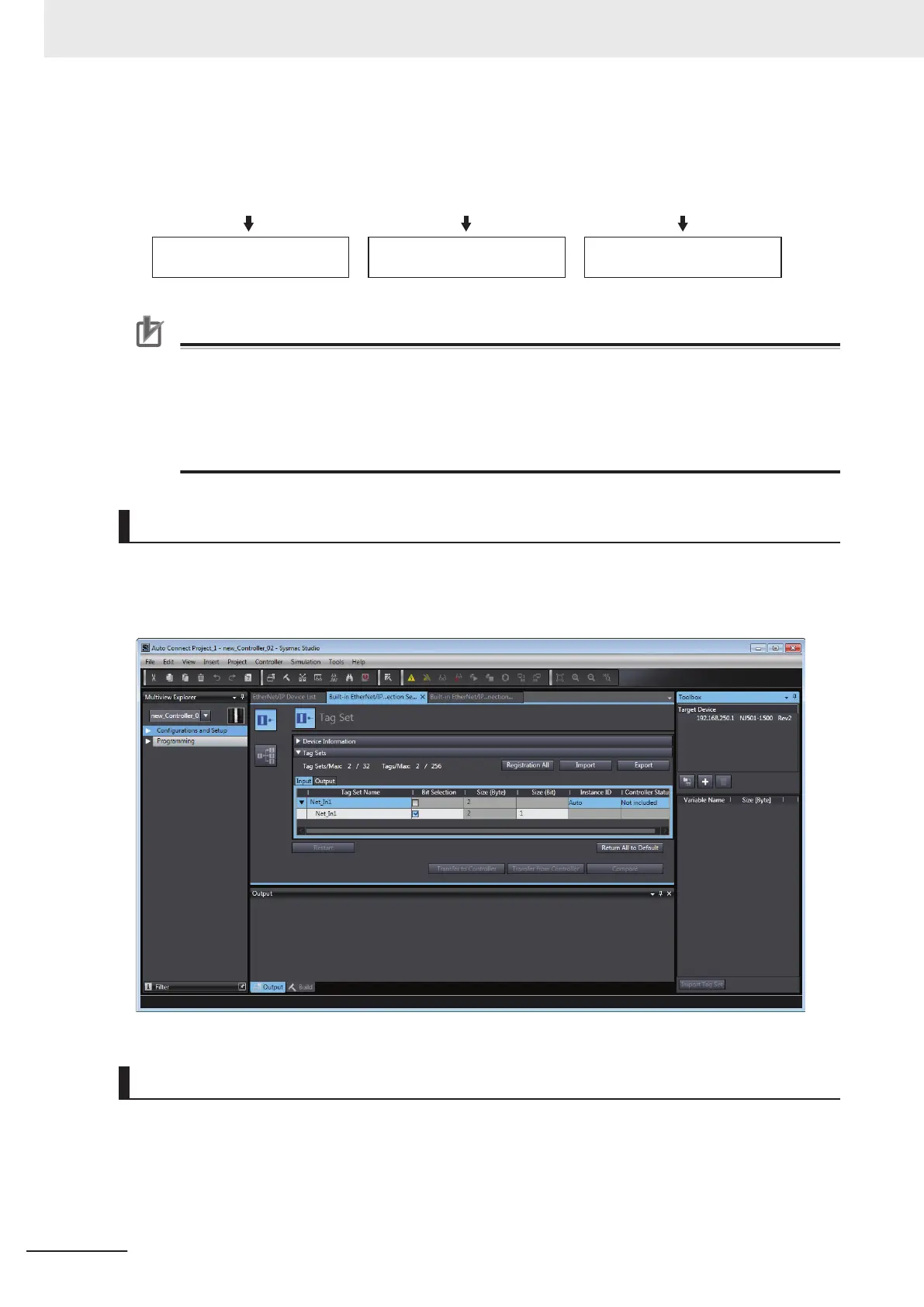

Select Sy
nchronization
from the Controller Menu.
Select Transfer - To Controller
from the Controller Menu.
Select EtherNet/IP Connection
Settings from the Tools Menu to
display the device list. Right-
click the device and select Edit
from the menu.
Synchronization Window
Transfer to Controller Dialog
Box
EtherNet/IP Connection
Setting Tab Page
Precautions for Correct Use
To transfer only the connection settings, execute Transfer from the EtherNet/IP Connection Set-
ting T
ab Page.
Even if you clear the Do not transfer the connection setting Check Box, the connection set-
tings are not transferred from the Synchronization Window, the Transfer to the Controller Dia-
log Box, or the Transfer from the Controller Dialog Box as long as the data in the computer is
synchronized with the data in the Controller.
EtherNet/IP Device List Tab Page
The list indicates the devices to which EtherNet/IP connections can be set.
For information on how to access this tab page, refer to the Registering the T
ag and Tag Set on page
A-11.
EtherNet/IP Connection Settings (Tag Set Display)
Register tag sets required to create connections.
Each tag set represents the data that is sent and received through a connection. Y
ou can register up
to eight tags in one tag set.
Appendices
A-6
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
