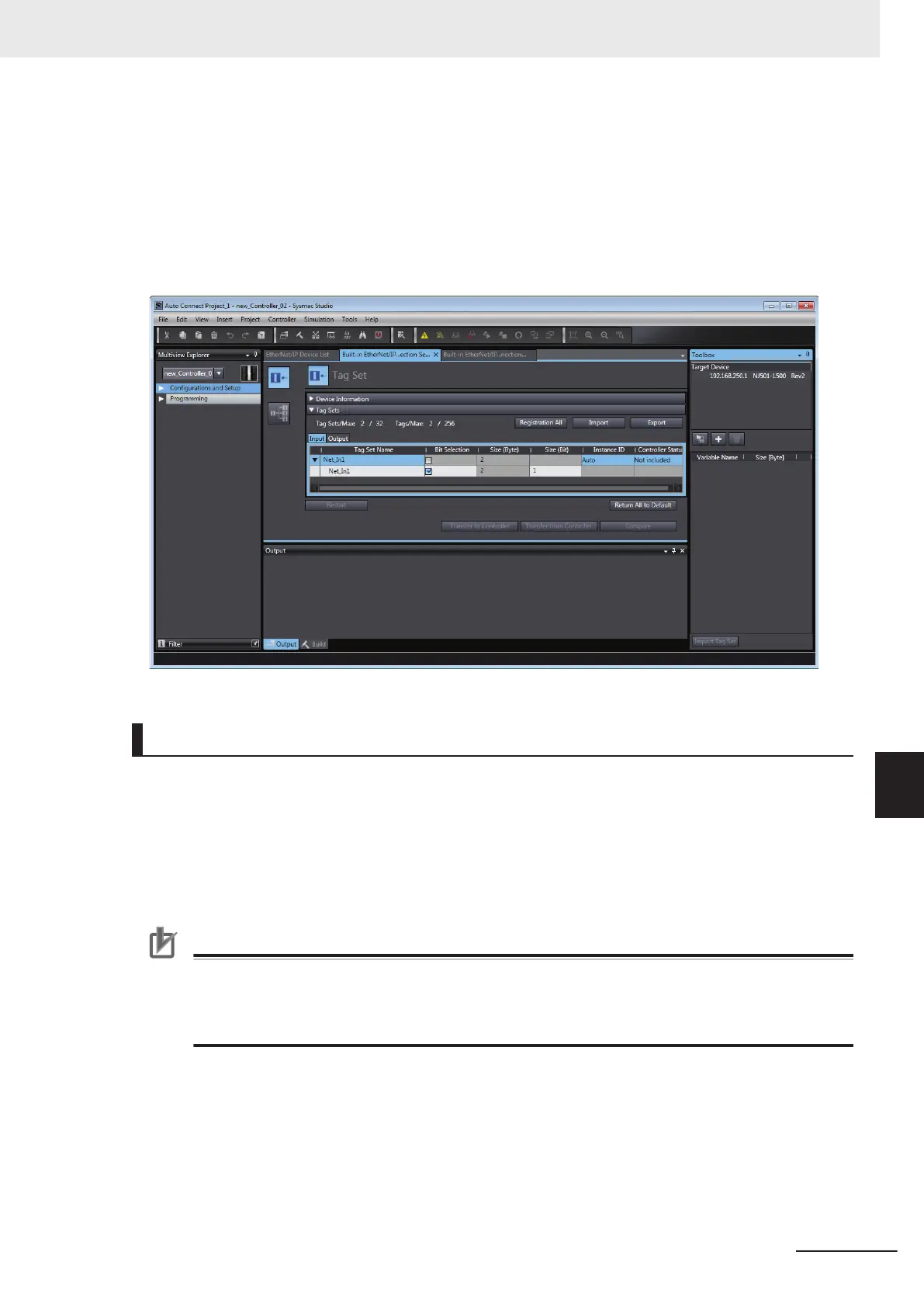

The name and size of the tag must be the same as those of the network variable
*1
. Set whether to
include the Controller status information in tags for the tag sets. Y
ou can also set the data output
operation at a fatal error occurrence for output tags.
Refer to Registering the Tag and Tag Set on page A-11 for information on how to register tags and
tag sets.
*1. A variable with its Network Publish attribute
set to Output or Input in the Global Variable Table is called a
network variable.
EtherNet/IP Connection Settings (Connection Display)
Specify the target devices and set their connections.
For each connection, set the following information: Connection Name, Connection I/O T
ype, I/O, target
device tag set (target variable), originator device tag set (originator variable), Packet Interval (RPI),
and Timeout Value.
Refer to Setting Connections for the Originator Device on page A-14 for information on how to make
connection settings.
Precautions for Correct Use
If you changed the IP address, model or revision of the target device after making the connec-
tion settings, perform the following.
With the Sysmac Studio version 1.1
1 or higher, change the connection settings entirely.
With the Sysmac Studio version 1.10 or lower, create the connections again.
Appendices
A-7
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-3 EtherNet/IP Connection Settings
