Precautions for Correct Use
If you change the IP address, model, or revision of the target device after making the connec-
tion settings, you must also change the target device settings that are included in the connec-
tion settings.
For information on how to change the target device settings in the connection settings, refer to
Changing the T
arget Device Settings after Making Connection Settings on page A-20.

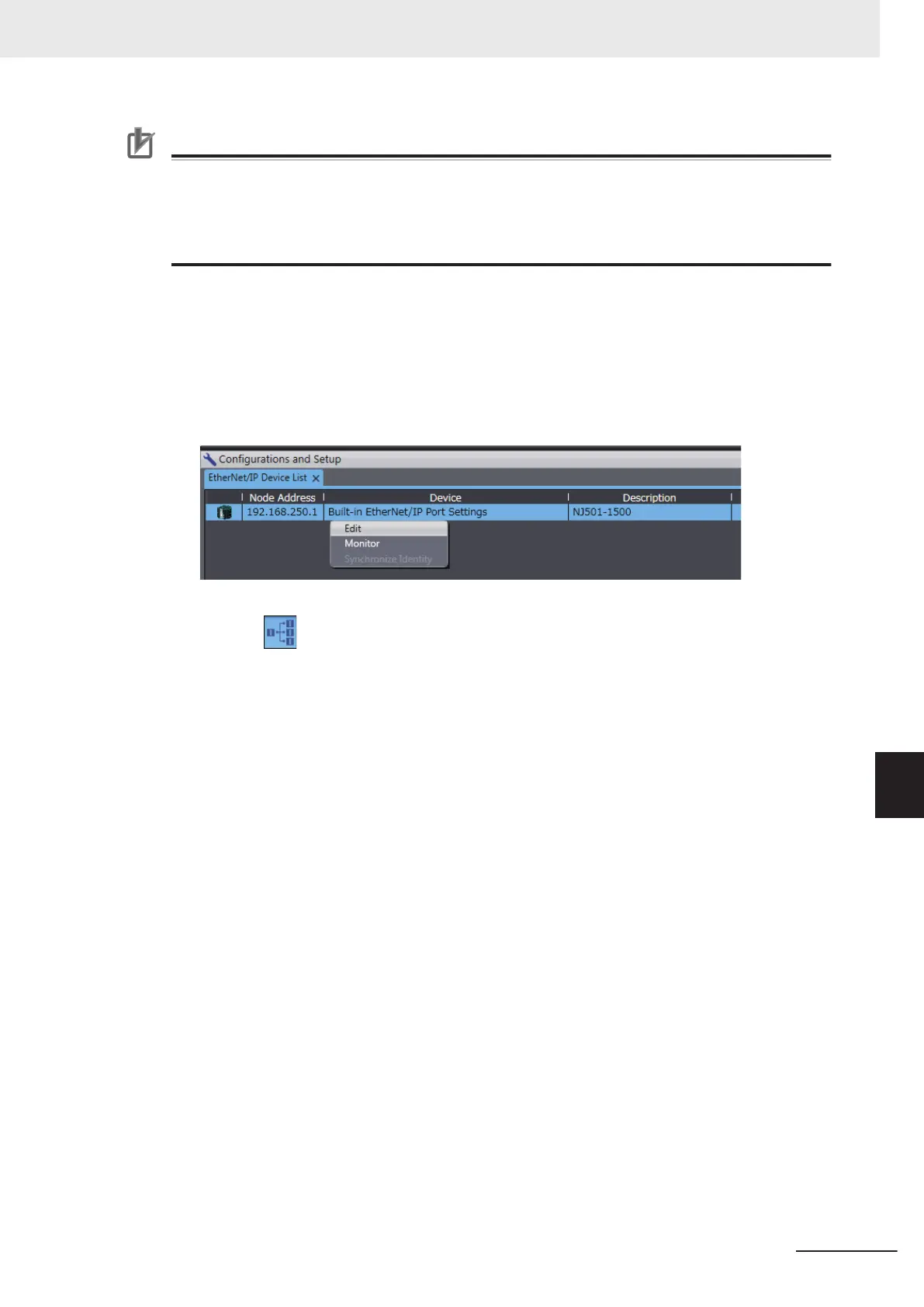

1 Select EtherNet/IP Connection Settings from the T
ools Menu to display the EtherNet/IP De-
vice List Tab Page.
2 Right-click Built-in EtherNet/IP Port Settings for Controller 1 (originator device in this exam-
ple), and select Edit from the menu.
The EtherNet/IP Connection Setting T
ab Page is displayed.
3 Click the (Show Connection Display) icon in the EtherNet/IP Connection Setting Tab
Page.
4 Select CJ1W
-EIP21(NJ) from Target Device in the Toolbox on the right of the tab page.
When you select CJ1W-EIP21(NJ), the target device tag set (Net_Out1) for Controller 2 is dis-
played in the Variable Name column in the Toolbox.
5 Drag the target device tag set Net_Out1 from the V
ariable Name column in the Toolbox to the
Connection List.
As you enter characters (or immediately after you press the Ctrl + Space Keys), a list of target
device variables that can be set for the connection is provided. Select the value from the list.
Appendices
A-15
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-4 Making the EtherNet/IP Connection Settings with the Sysmac Stu-
dio
