Precautions for Correct Use
• Changeable target devices are limited to ones that have "OMRON" in the Vendor ID and is an
EDS device of the Communications Adapter in the Device T
ype.
• To display a device in the list of selectable new target devices, the device must be registered
as the target device in the Toolbox.
3 To apply the same change to other connections, select the Apply the change to other
connections Check Box.
4 Click the OK Button.
Registering the Network Variable for the Target Device
1 Assign the network variable to the tag used for the EtherNet/IP connection for Controller 2 (tar-
get device).
This network variable stores data to send to Controller 1 (originator device).

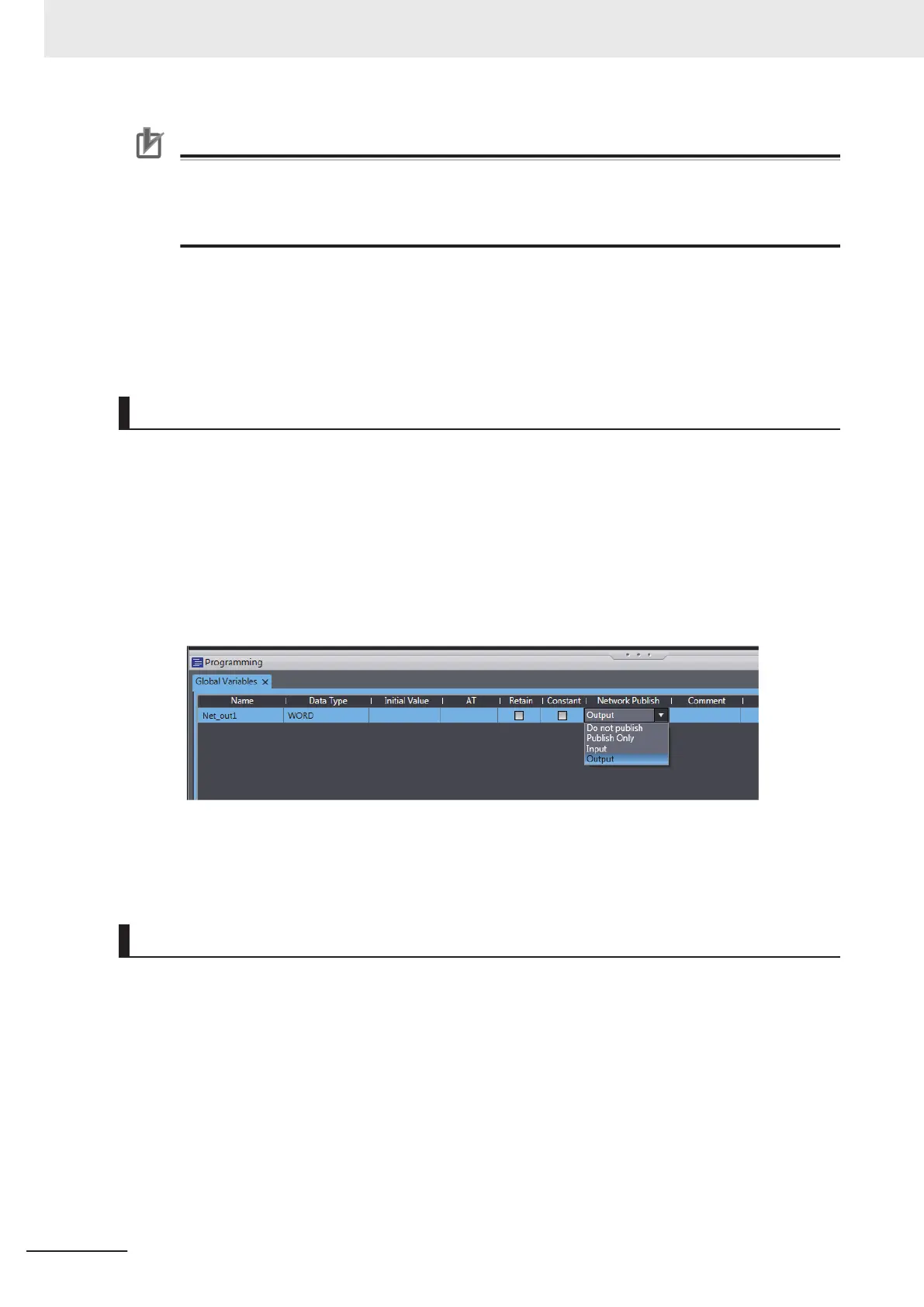

Set the Network Publish attribute to Input or Output
in the Global Variable Table for the varia-
ble so that the variable serves as a network variable, i.e., the variable can be used for the
EtherNet/IP connections. In this example, set the network variable for Controller 1 as shown
below.
• Name: Net_Out1
•
Data type: WORD
• Network Publish attribute: Output
Registering the Tag and Tag Set for the Target Device
Set the tag and tag set for the target device.
1 Select EtherNet/IP Connection Settings
from the Tools Menu.
The EtherNet/IP Device List Tab Page is displayed.
2 Right-click CJ1W
-EIP21, the EtherNet/IP Unit connected to the Controller 2 (originator device
in this example), and select Edit from the menu.
The EtherNet/IP Connection Setting Tab Page is displayed.
Appendices
A-22
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
