Menu Description

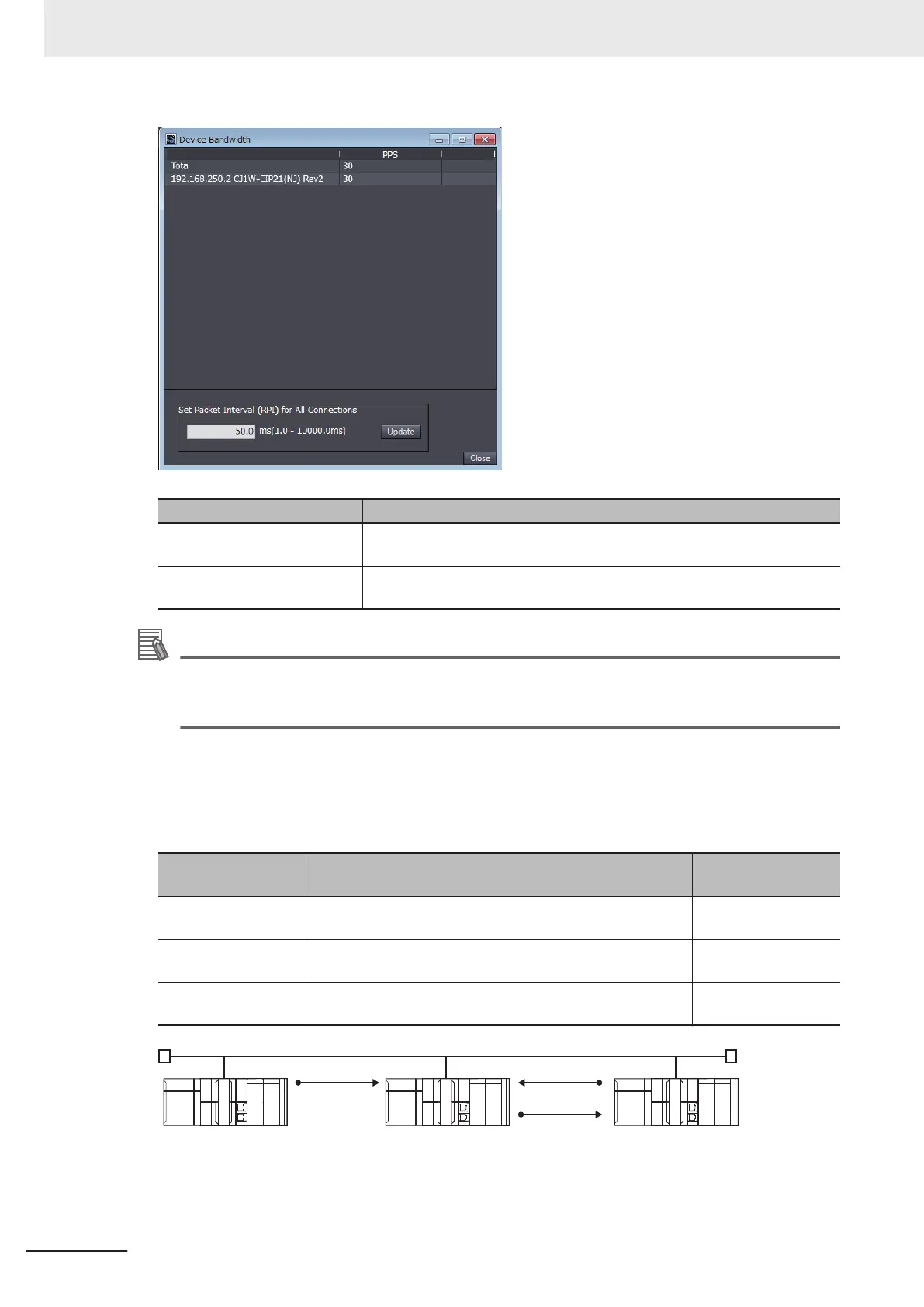

PPS Gives the bandwidth used for each target device and total bandwidth used
for all target devices.
Set Packet Interval (RPI) for
All Connections
Changes all Packet Interval (RPI) values for all target devices.
Additional Information
You can specify a value in Set Packet Interval (RPI) for All Connections and click the Update
Button to change packet interval (RPI) values set in the connection settings for all target devi-
ces to the specified value.

Calculation Example for Bandwidth Used (PPS) for Each Device by the
EtherNet/IP Connections
Establishing following three EtherNet/IP connections between Controllers (1) to (3) in the
EtherNet/IP network
Connection type Relevant devices in the EtherNet/IP connections
Device bandwidth
usage (PPS)
Connection (1) NJ-series Controller 2 (target device)
to NJ-series Controller 1 (originator device)
50 pps
Connection (2) NJ-series Controller 1 (target device)
to NJ-series Controller 2 (originator device)
10 pps
Connection (3) NJ-series Controller 3 (target device)
to NJ-series Controller 1 (originator device)
210 pps
NJ-series Controller 1
(192.168.250.1)
NJ-series Controller 2
(192.168.250.2)
NJ-series Controller 3
(192.168.250.3)
Connection (1)
EtherNet/IP network
Connection (3)
Connection (2)
Bandwidth used (PPS) for each EtherNet/IP device is as given below.
Appendices
A-24
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
