If you make other settings than above, transferring and monitoring the EtherNet/IP connection settings
may not be properly performed even if the online connection is successfully established between the
Sysmac Studio version 1.10 or higher and the Controller
.
If the above problem occurs, take the following corrective method 1 or 2.

Problems
• The connection setting data cannot be transferred.

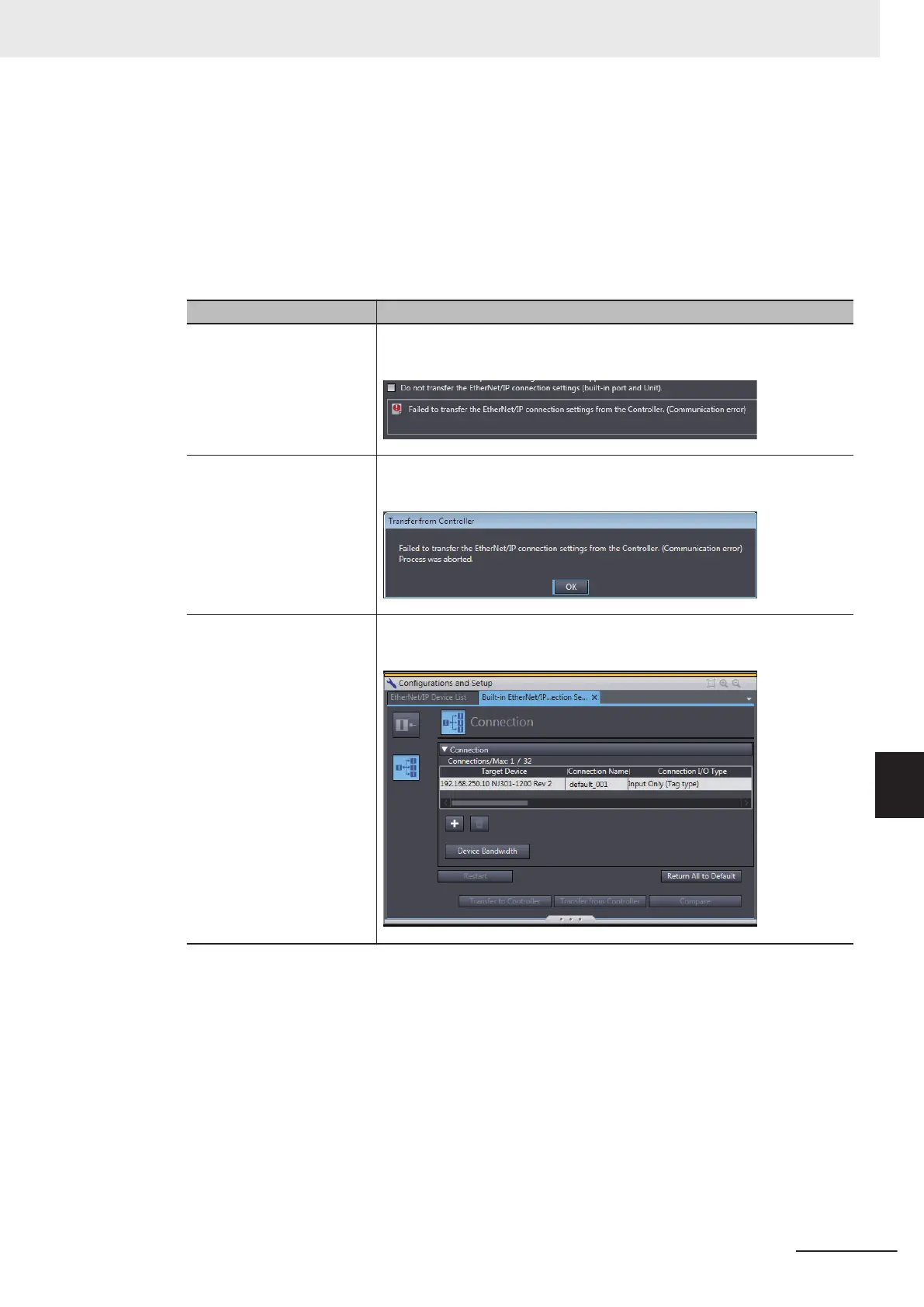

Data Transmission Screen Problem
Synchronization Window The Sysmac Studio displays the following error message and the data will
not be transferred.
Transfer to Controller
Dia-
log Box
The Sysmac Studio displays the following error dialog box and the data will
not be transferred.
EtherNet/IP Connection Set-
ting T
ab Page
The Transfer to Controller and Transfer from Controller Buttons are
grayed out and the data cannot be transferred/compared.
• Monitoring cannot be performed
Monitor results in the EtherNet/IP Connection Monitor T
ab Page remain as "---".
Appendices
A-35
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
A-2 Use the Sysmac Studio to Set the Tag Data Links (EtherNet/IP Connections)
A
A-2-6 Troubleshooting
