Temperature Input Units Section 6-4

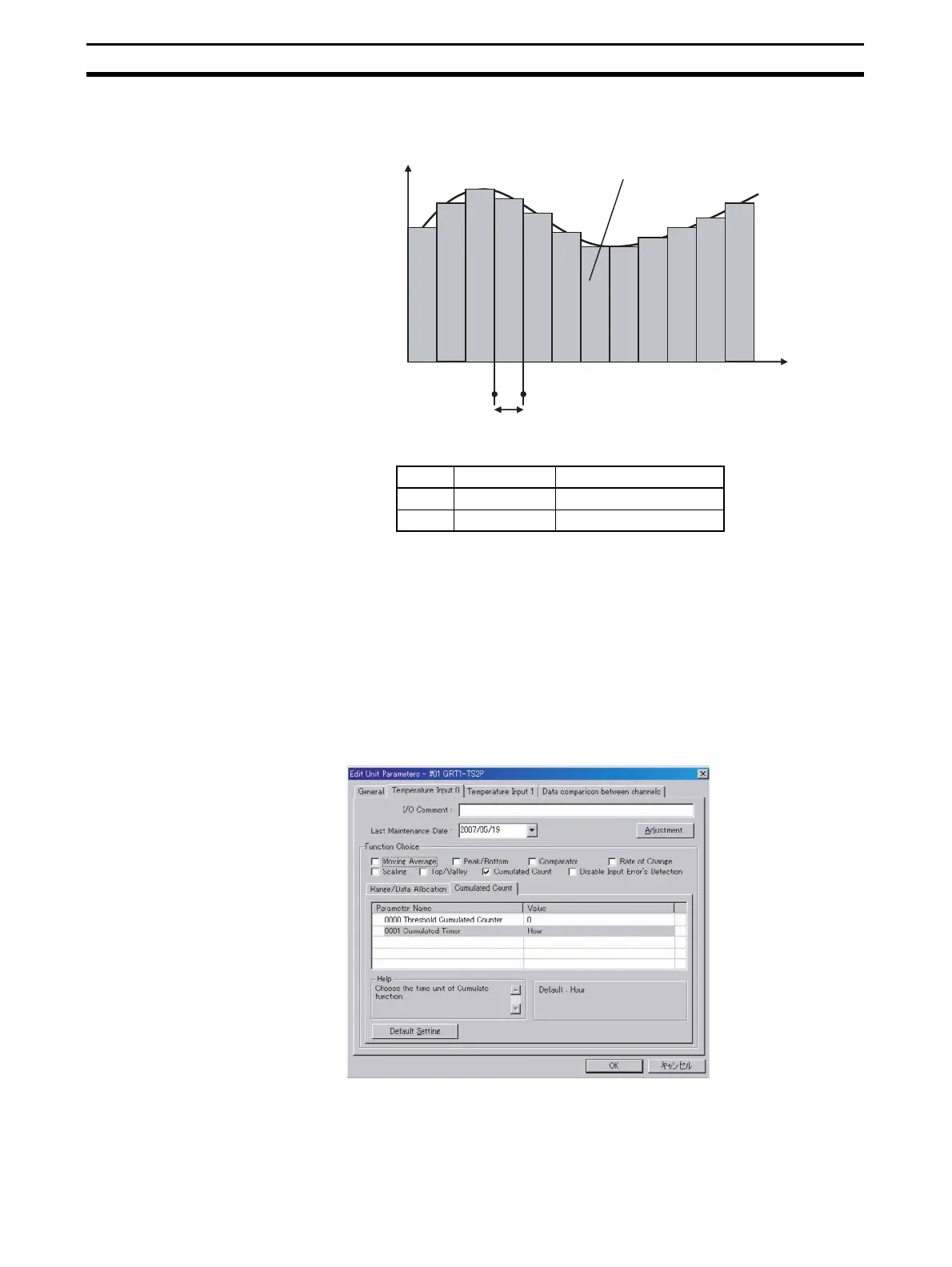

(3) The meaning of the cumulated count depends on the decimal point posi-
tion of the temperature value.
Note The following table shows the divisions for the cumulative counter.
Setting Procedure (Example: DeviceNet Configurator)
1,2,3... 1. In the Network Configuration Window, double-click the icon of the Slice I/O
Terminal that is to be set. Alternatively, right-click the icon and select Pa-
rameters - Edit. The Edit Device Parameters Window will be displayed.
2. Select the Temperature Input Unit to be edited from the I/O Module Tab
Page.
3. Click the Edit Button on the I/O Module Tab Page. The Edit Unit Parame-
ters Window will be displayed.
4. Select the tab page for the input where the cumulative counter is to be set,
and select the Cumulated Count Check Box in the Function Choice Area.
Unit Divisions Number of integrations
Hour 12 s 300 times
Minute 200 ms 300 times
Temperature input value
Cumulated value
(°C × hours or °C × minutes)
Time
Division width (See note.)
