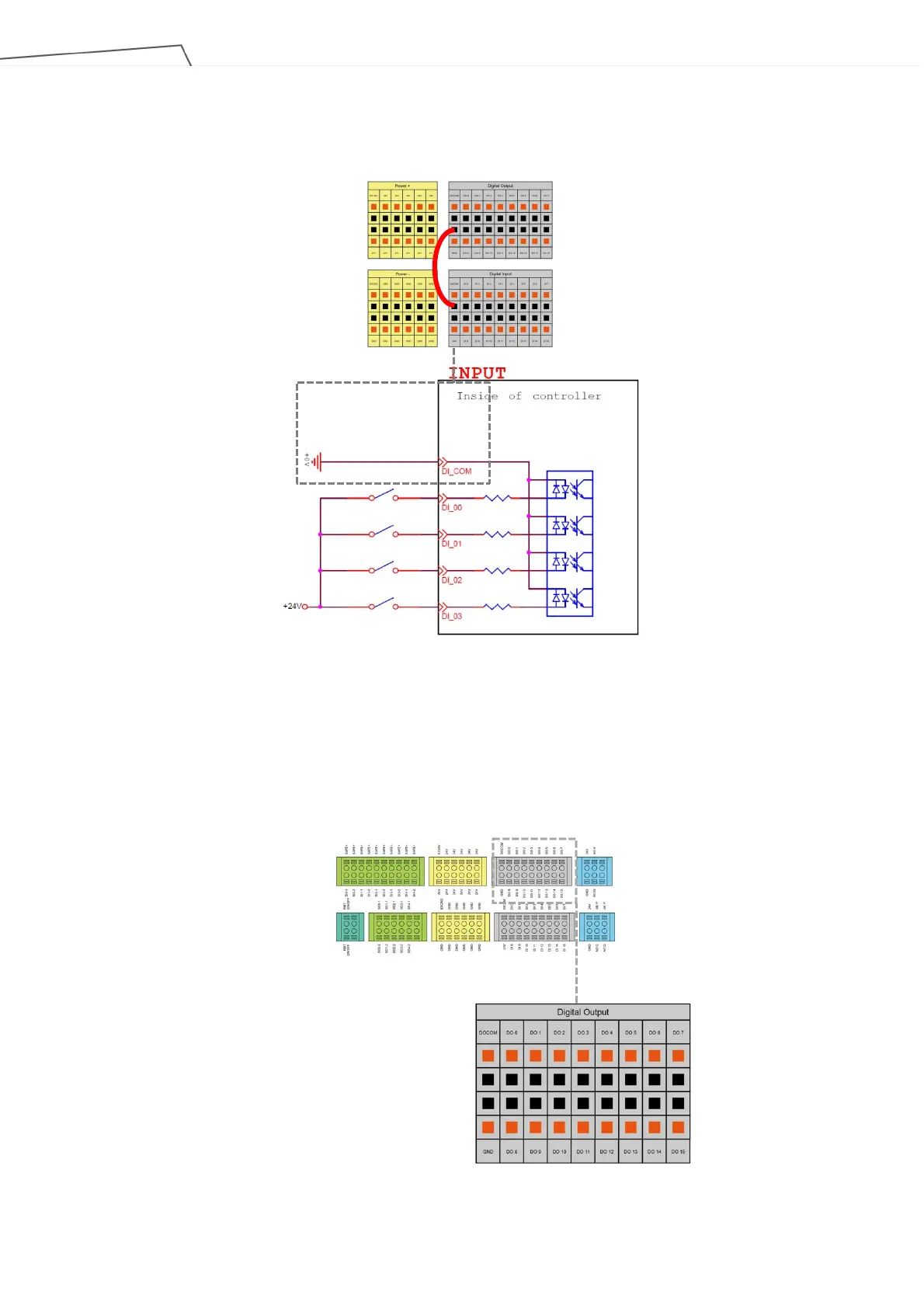

TM5-700 / TM5-900 electrical specifications:
TM5M-700/ TM5M-900 Series electrical specifications:
*If using DC22~47V power supply, the Robot will automatically limit the total output power
Parameters Minimum value Typical value Maximum value Unit
Input voltage 100 - 240 VAC
External mains fuse
(100V~120V)
- - 15 A
External mains fuse
(220V~240V)
- - 8 A
Input frequency 43 - 63 Hz
Parameters Minimum Value Typical value Maximum value Unit
Input voltage 22 - 60 V (DC)
Power consumption 200 1500 W
DANGER:
1. Ensure that the robot is correctly grounded (electrical grounding).
2. Ensure that the input current of the control box is protected by the Residual Current
Device (RCD) and appropriate fuses.
3. Ensure that all cables are correctly connected before the control box is energized.
Always use genuine power cables correctly.
