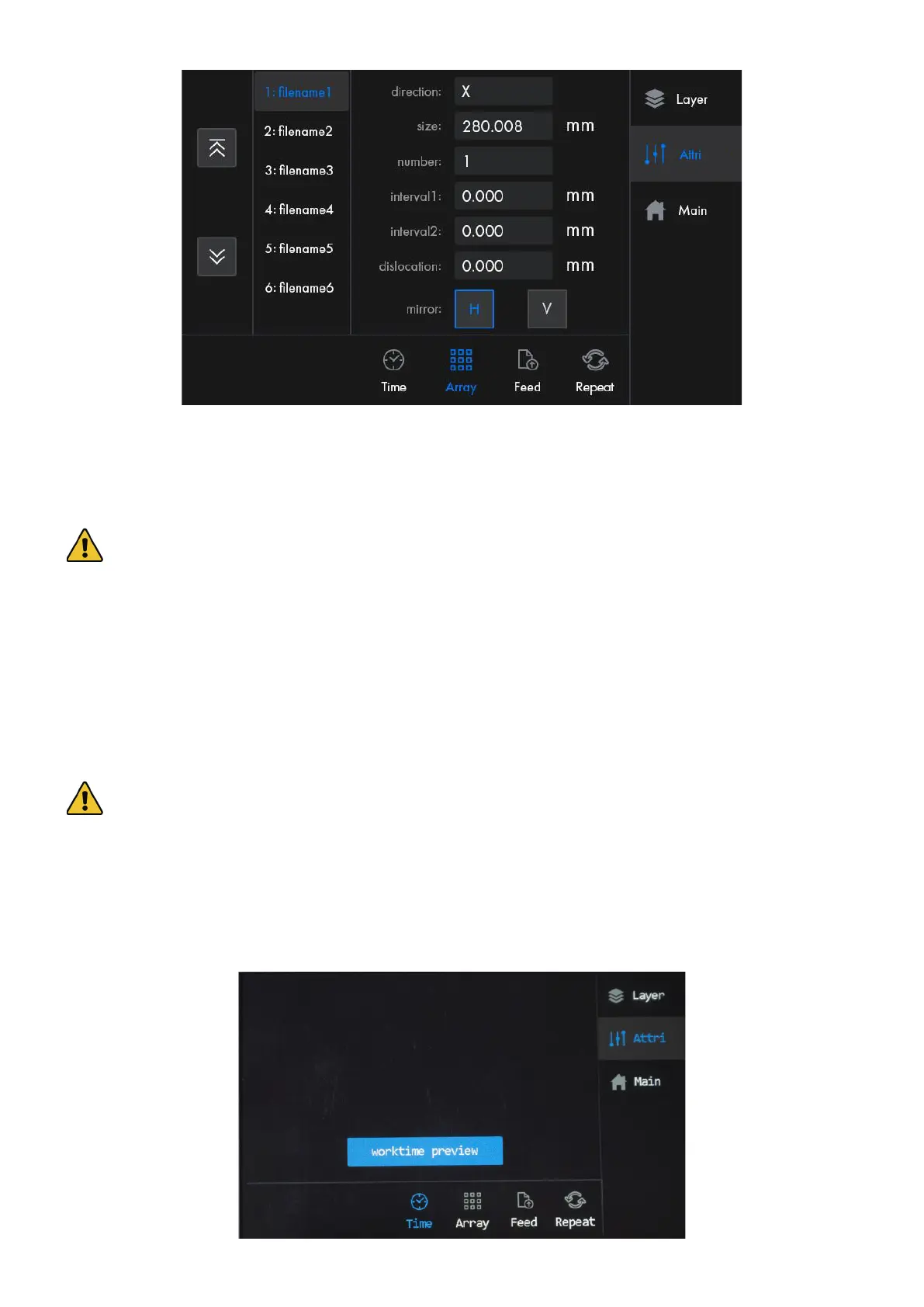

Listed on the left are all the array names for this le. Use the up and down button to scroll through all the array names
if there are many of them. After being tapped, the information of the selected array is displayed as shown
direction: Determines how an array is formed, along the X or Y axis.
Changes to this parameter automatically change other parameter values in this menu.
size: Determines the size of array elements. The alteration is disabled.
number: Controls the number of array elements along the X/Y axis.
interval 1: Controls the graphic element interval value of the odd-numbered rows of the array.
interval 2: Controls the graphic element interval value of the even-numbered rows of the array.
dislocation: Controls the dislocation value of the array graphics along the X/Y axis.
mirror: H selected, even-numbered rows are mirrored in the X/Y direction; V selected, even-numbered columns are
mirrored in the X/Y direction. Tap the icon blue to enable this feature.
The array information of a le that contains multiple array names is not modiable.
5.7 Engraving Time Estimation
Tapping “Time” sets the system to estimate the time that the system will take to nish the task. The estimation time
depends on the complexity of the le.
