Connecting Playback Devices
Connecting an AV Component with HDMI Jack Mounted

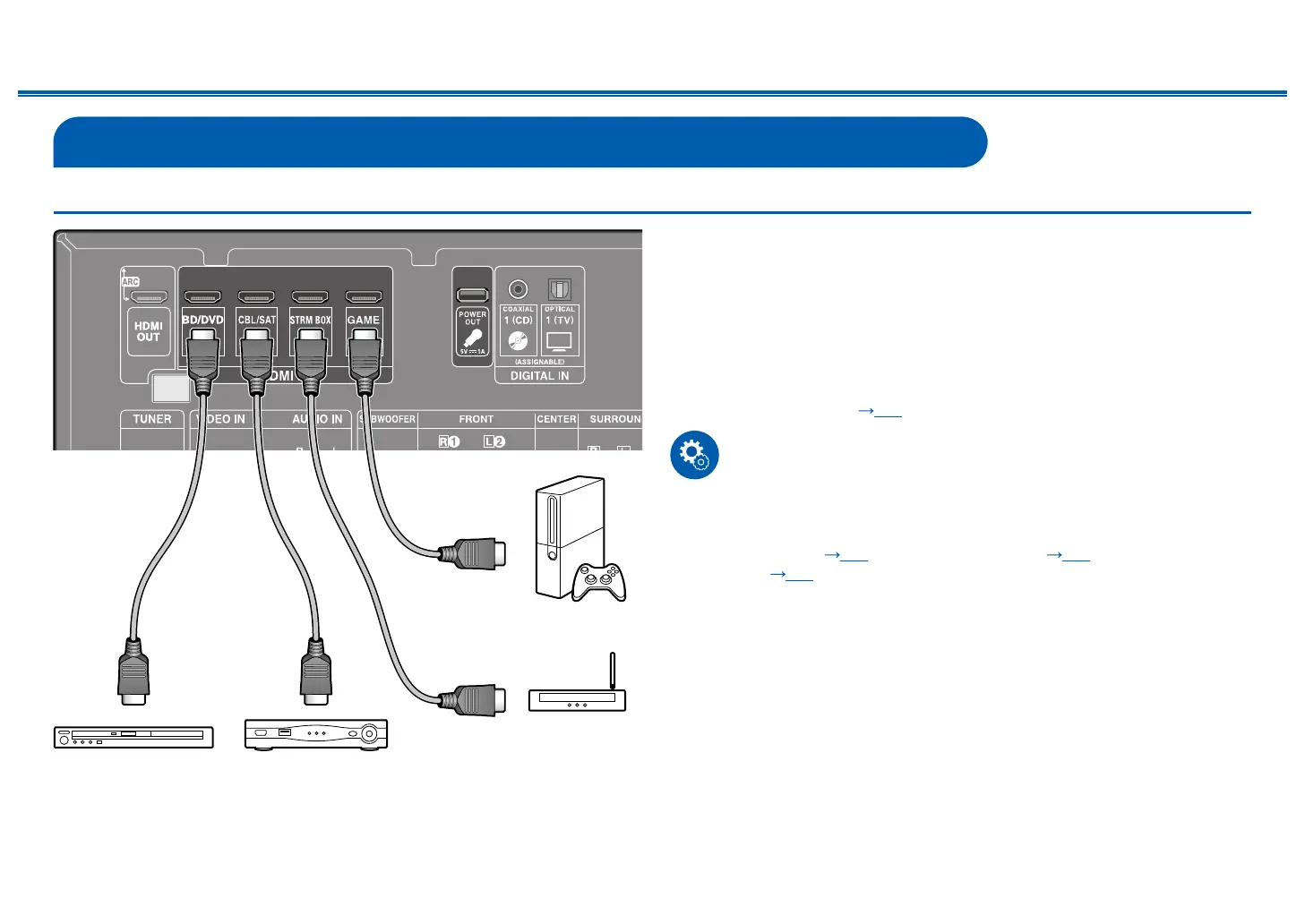

This is a connection example of an AV component equipped with an HDMI jack.
To play 4K or 1080p video, use a high speed HDMI cable.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the "Control" function(*) that enables
linking with input selectors, etc. and the "Standby Through" function that can
transmit video and audio signals of the AV component to the TV even if this unit
is in standby mode. Also, the POWER OUT jack on the rear panel can supply
power (5 V/1 A) to a streaming media player, etc. using a USB cable. To supply
power even when this unit is in standby mode, change the setting value of
"POWER OUT Standby" ( p65) to "ON".
Setup
• Settings are required to use the "Control" function and "Standby Through"
function. After all the connections are completed, check the setting method on
Menu operations ( p60), and refer to "Control" ( p64) and "Standby
Through" ( p65) respectively to make the settings.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*)"Control" function: This function enables various linking operations with CEC-
compliant devices, such as switching input selectors interlocking with a CEC-
compliant player, switching audio output between TV and this unit or adjusting
the volume using the remote controller of a CEC-compliant TV, and automatically
switching this unit to standby when the TV is turned o󰀨.
a
Streaming media
player
GAME
BD/DVD Cable/Satellite
set-top box
a HDMI cable
