OnRobot RG2-FT - Mountings; Quick Changer - Robot Side

8.2.3. Mountings

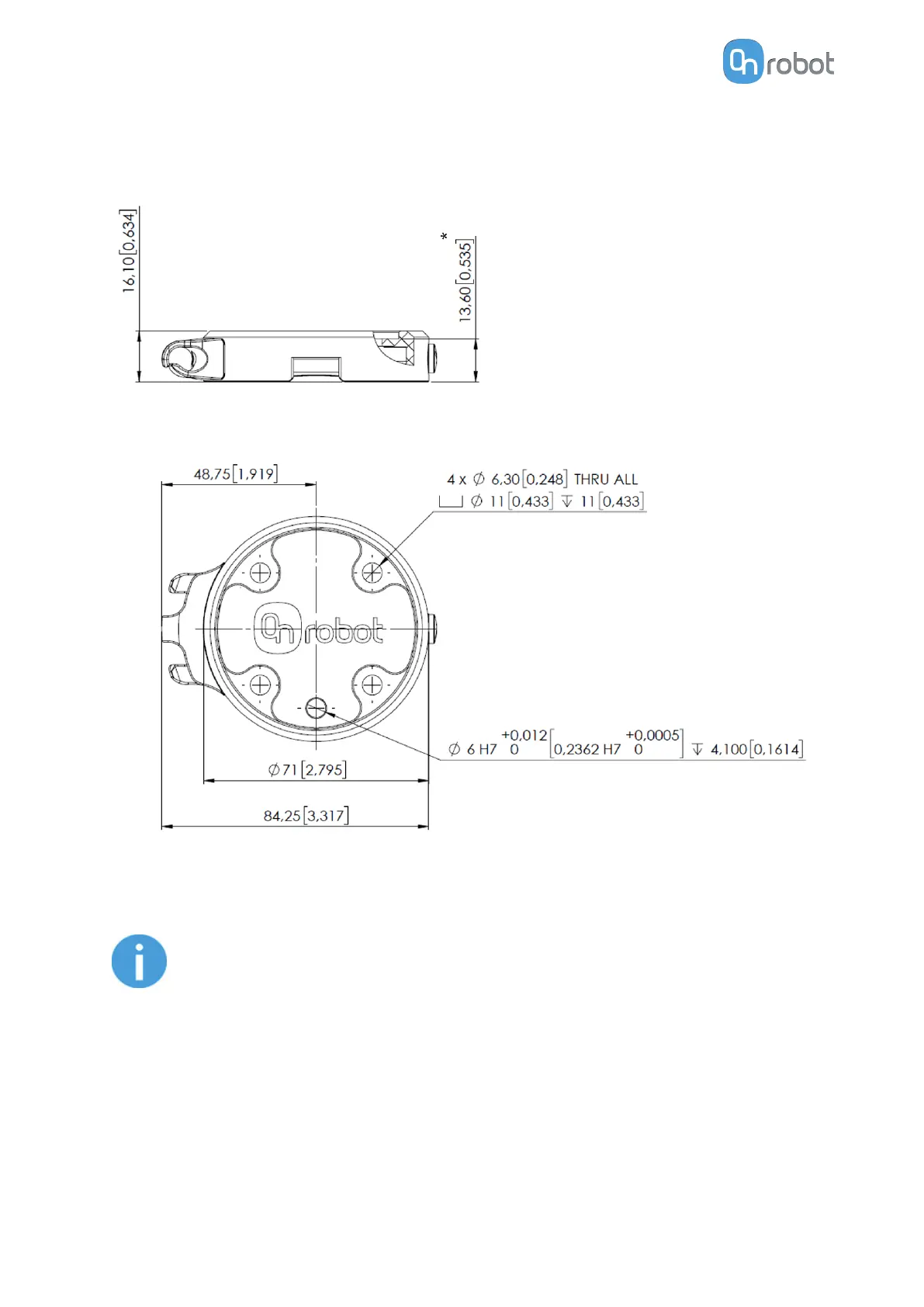

8.2.3.1. Quick Changer - Robot Side
* Distance from Robot flange interface to OnRobot tool.
All dimensions are in mm and [inches].
NOTE:
The cable holder (on the left side) is only required with the long (5 meter)
cable.
HARDWARE SPECIFICATION
231
