Table 2 describes the reasons for envelopes and documents to be outsorted. Keep in
mind that this information is based on the default settings and may change slightly
depending on your job.
NOTE: See Appendix B: “Outsorts, Reunites and Rejects” for detailed information on
the individual messages.
Stacker bins
The stacker modules contain the documents and checks extracted from the
envelopes. Depending on the configuration of the job, certain documents and checks
will go to certain bins.
Each Eagle stacker houses eight bins, and a machine can have up to four stacker
modules installed. Figure 14 shows the stacker modules and how the bins are
numbered.

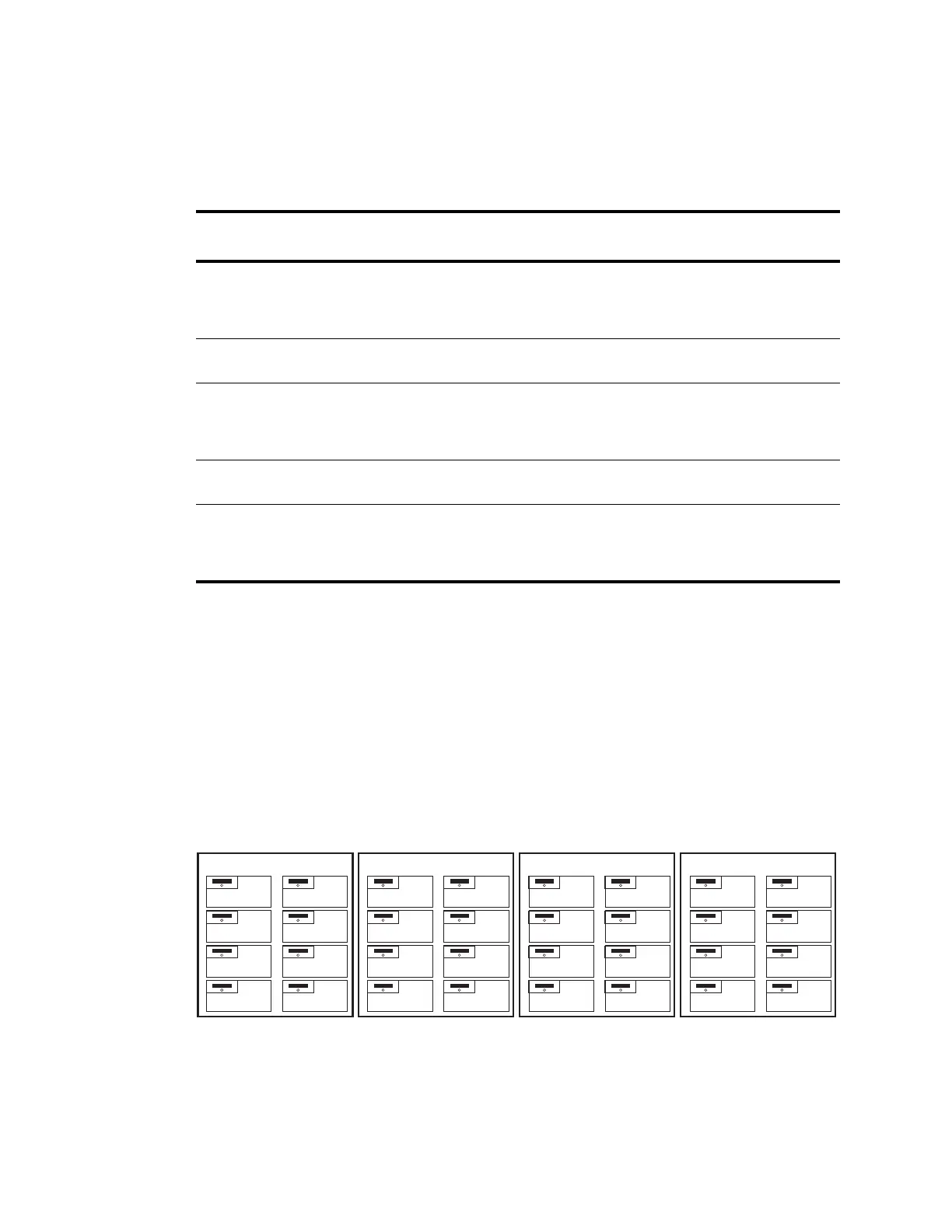

FIGURE 14: Stacker bin numbering
TABLE 2:
Outsorts, rejects and reunites
Outsort
destination
Reason for outsorting What to do with it
Outsort bins
(Bin 1, Bin 2)
Envelopes that do not meet the job’s
expectations
Envelopes sent to Bin 1 cannot be run
through the machine again; envelopes
sent to Bin 2 may be placed back onto
the main feeder
Extract pit
Envelopes that were cut open but the
documents were not extracted properly
Remove the contents and prepare them
for the refeeder
Reunite pit
Envelopes and contents that were
reunited. Could be due to the envelope
and check or document sticking
together.
Separate the envelope and contents
and prepare the contents for the
refeeder
Singulator pit
Contents were extracted but not
separated enough to be imaged
Prepare for the refeeder
Bin 0
Reject bin(s)
Stubs and checks that were not imaged
properly; MICR or OCR information was
not read properly; could not orient items,
etc.
Prepare for the refeeder or transport
Stacker 3
bin 5
LED
bin 6
LED
bin 7
LED
bin 8
LED
bin 1
LED
bin 2
LED
bin 3
LED
bin 4
LED
bin 13
LED
bin 14
LED
bin 15
LED
bin 16
LED
bin 9
LED
bin 10
LED
bin 11
LED
bin 12
LED
bin 21
LED
bin 22
LED
bin 23
LED
bin 24
LED
bin 17
LED
bin 18
LED
bin 19
LED
bin 20
LED
bin 29
LED
bin 30
LED
bin 31
LED
bin 32
LED
bin 25
LED
bin 26
LED
bin 27
LED
bin 28
LED
