Optimum S210G - 2 Technical Data; Characteristics Plates; Power Connection; Cutting Field

Technical data
OPTIMUM
MASCHINEN - GERMANY
© 2008
GB
Page 14 Metal belt saw S210G; S275G; S210G Vario; S275G Vario version 1.3.1 4 February 2008
2 Technical data

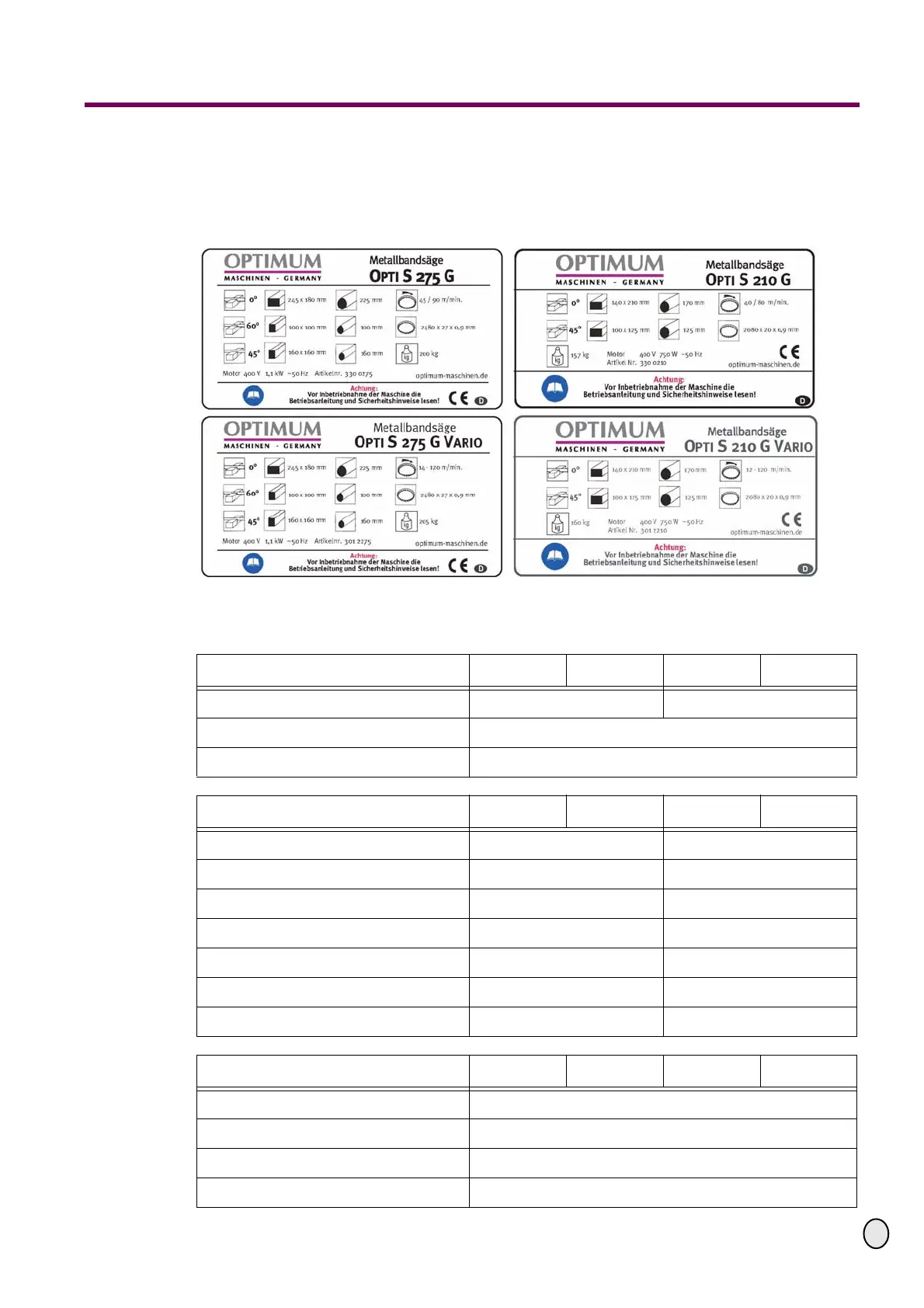

2.1 Characteristics plates
Illustr.2-1: Characteristics plates
The following information gives the dimensions and weight and is the manufacturer's authorised
machine data.
Power connection
S275G S275G Vario S210G S210G Vario
Total connection rate 3 x 400 V; 50 Hz; 1,1 KW 3 x 400 V; 50 Hz; 0,75 KW
Permitted voltage tolerance 380 V - 420 V
Protection mode IP 54
Cutting field
S275G S275G Vario S210G S210G Vario
90° round, max. (mm) 225 170
90° rectangular, max. (mm) 245 x 180 170 x 210
45° round, max. (mm) 160 125
45° rectangular, max. (mm) 160 x 160 100 x 125
60° round, max. (mm) 100 -
60° rectangular, max. (mm) 100 x 100 -
Cutting angle 0
0
- 60
0
0
0
- 45
0
General
S275G S275G Vario S210G S210G Vario
Cutting angle adjustment Using the rotating saw arch
Saw belt guide Inversion pulleys supported on ball bearings
Raising the saw arm Manually
Feed Adjustable with continuous feed
