Page 294 February 2008 version 1.3.1 S210G; S275G; S210G Vario; S275G Vario Metal belt saw
5.2.1 Control panel

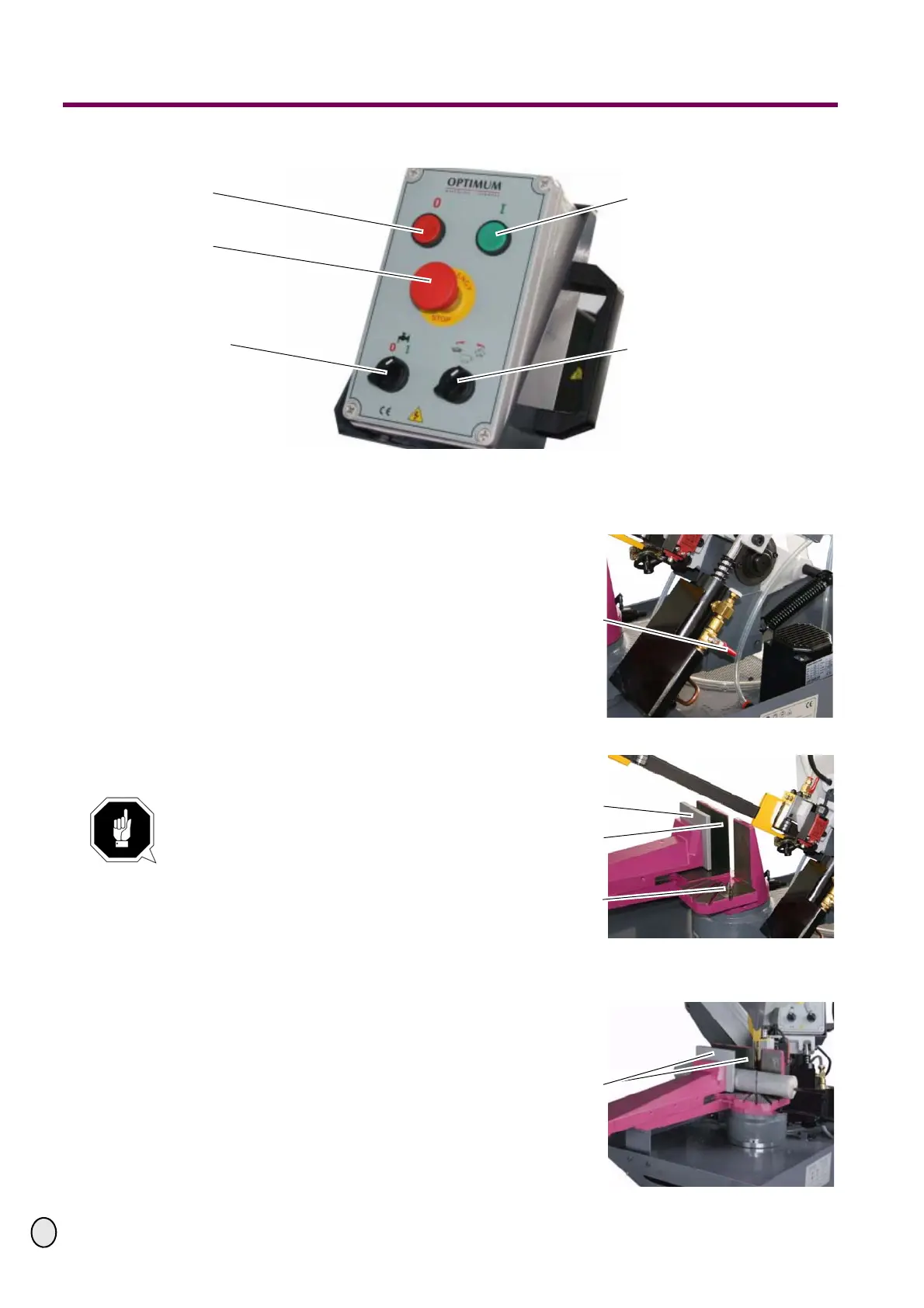

Illustr.5-2: Control panel of the metal belt saw
5.3 Inserting the work piece
 Raise the saw arch.
 Place the closing tap in vertical position
to secure the arch in a given position.
Illustr.5-3: Hydraulic feed
 Place the piece to be cut in the work-
holder vice.
ATTENTION!
Danger of overturning of the metal belt
saw. Support long work pieces before
pushing the piece to be cut into the
work-holder vice.
Illustr.5-4: Work-holder vice
The saw arch can be regulated with contin-
uous advance for angular cuts.
Illustr.5-5: Angular cut
Metal belt saw "ON"
Speed selector "Slow / Fast"
Metal belt saw "OFF"
EMERGENCY button
Cooling pump "ON/OFF"
Shut-off tap
Front clamp
Rear clamp
Work table
Clamps
