Handling
OPTIMUM
MASCHINEN - GERMANY
© 2008
GB
Page 30 Metal belt saw S210G; S275G; S210G Vario; S275G Vario version 1.3.1 4 February 2008
Position the clamp approximately 4 mm
in front of the piece by turning the hand
wheel.
Secure the piece using the tightening
lever.

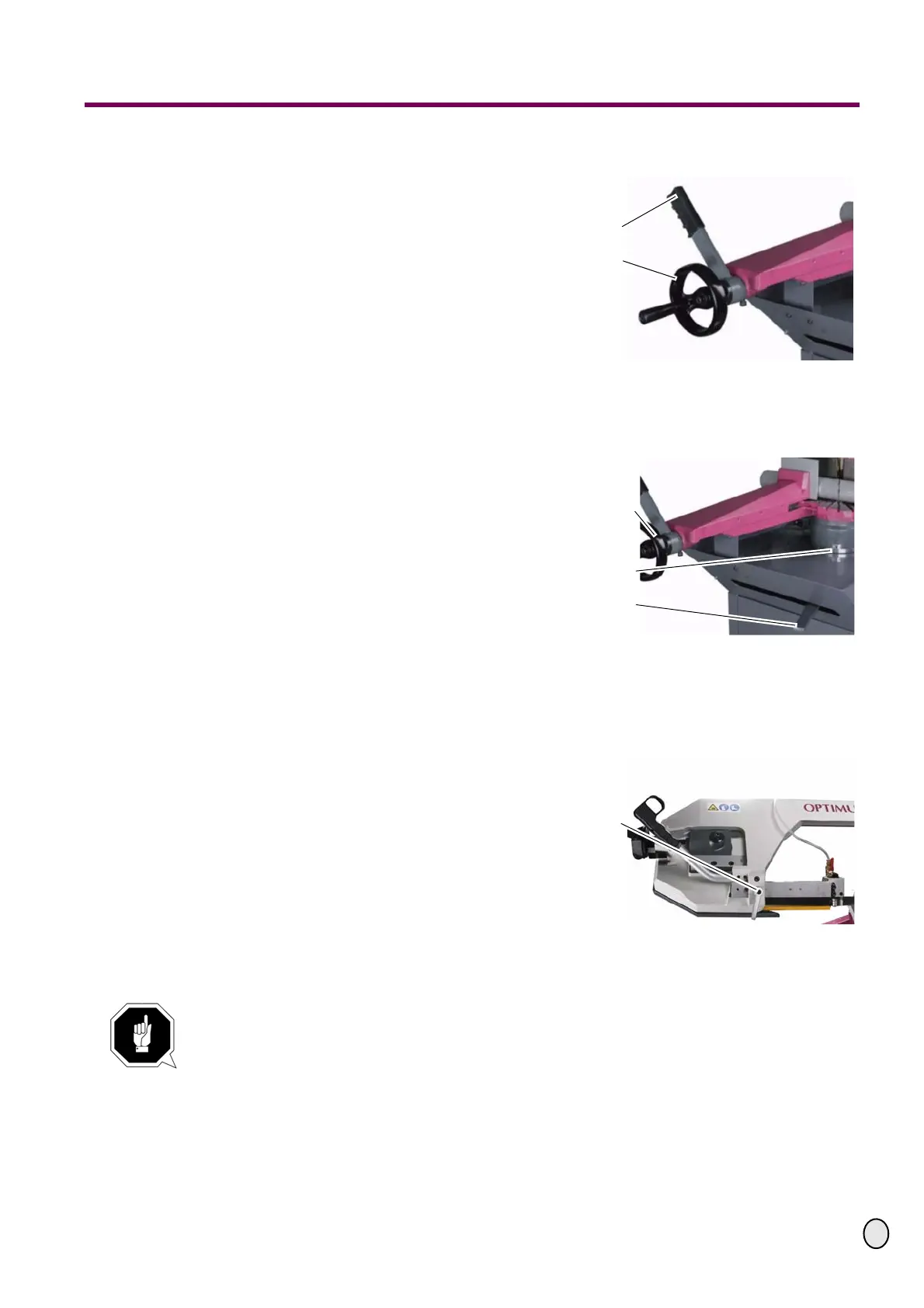

Illustr.5-6: Hand wheel and tightening
lever
5.4 Adjusting the angular cut
To adjust angular cuts, place the locking
bar of the saw arch in the left-hand posi-
tion.
Turn the saw arch to the required cutting
position.
There is a scale for adjusting the angle
on the bearing support.
Illustr.5-7: Locking bar
Lock the adjustment by moving the locking bar to the right.
5.5 Adjusting the saw belt guide
Change the position of the saw belt guide
depending on the size of the pieces to be
cut.
Loosen the setscrew.
Place the saw belt guide near the work
piece without affecting or hindering the
sawing process.
Illustr.5-8: Setscrew
Re-tighten the setscrew.
ATTENTION!
An unnecessarily wide space between the work piece and the saw belt guide, in combina-
tion with a high feed rate very quickly causes the saw belt to wear down.
Tightening lever
Hand wheel
Hand wheel
Angular scale
Locking bar
Setscrew
