Design and function
OPTIMUM
MASCHINEN - GERMANY
© 2008
GB
Page 24 Metal belt saw S210G; S275G; S210G Vario; S275G Vario version 1.3.1 4 February 2008

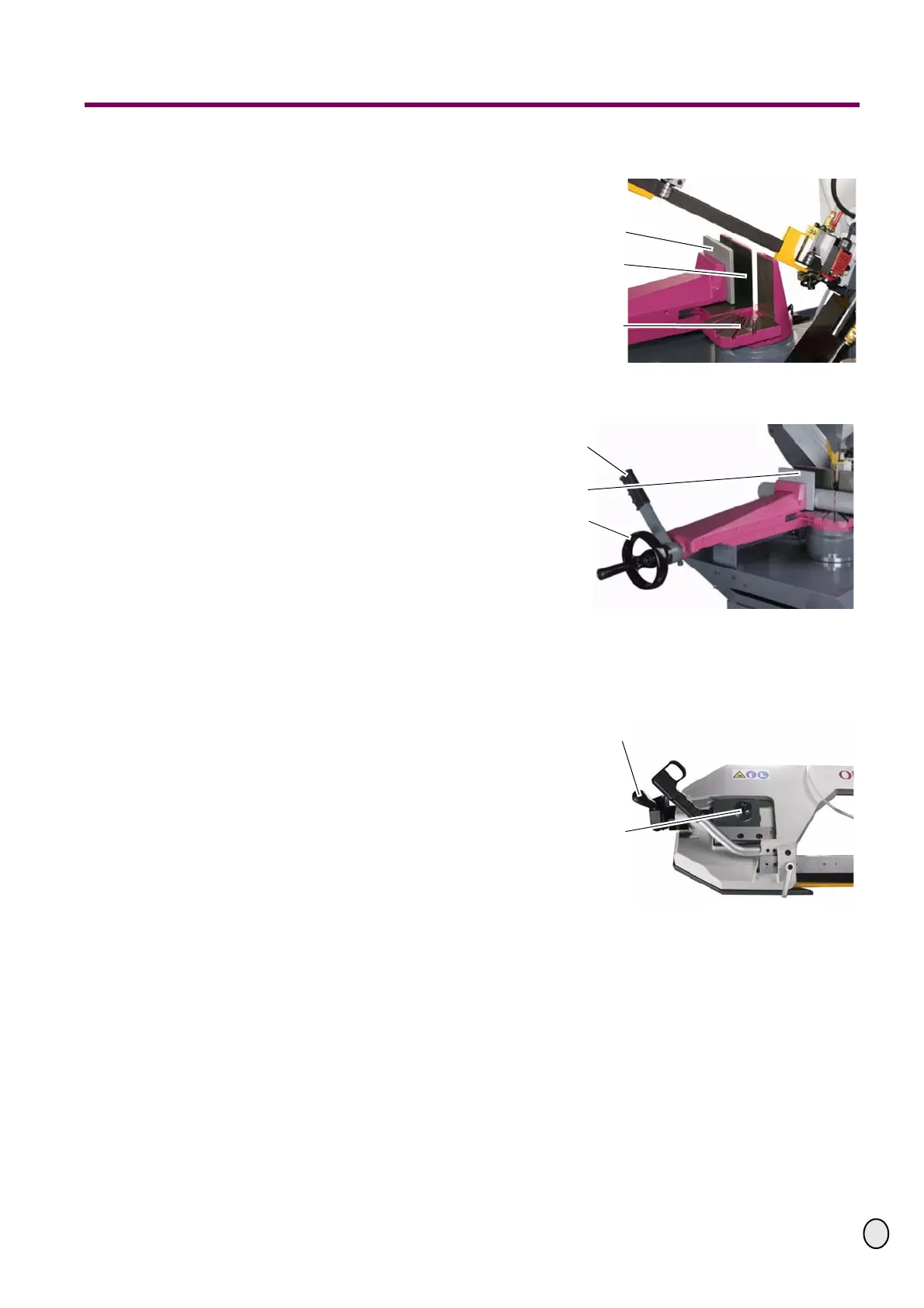

4.3 Work-holder vice
The work-holder vice is used for securing
the work piece.
The work-holder vice consists of
• the work table,
• the clamps,
• the rapid-securing device with hand
wheel.
Illustr.4-3: Work-holder vice
Regulate the required distance of the
clamps by turning the hand wheel.
Secure the piece with the tightening lever.
Illustr.4-4: Front clamp
4.4 Tension of the saw belt
The tension in the saw belt can be adjusted
by means of the hand wheel.
Illustr.4-5: Tension of the saw belt
Front clamp
Rear clamp
Work table
Tightening
lever
Front clamp
Hand wheel
Hand wheel
Locking screw
