Page 234 February 2008 version 1.3.1 S210G; S275G; S210G Vario; S275G Vario Metal belt saw
4 Design and function
It is possible to saw multiple materials with the metal belt saw.
The speed of the saw belt can be changed using a speed selector on the control panel.
Two speeds may be selected which allow a wide range of materials to be sawed on metal belt
saw S210G and S275G. The metal belt saws S210G Vario and S275G Vario allows an variable
speed.
The arch of the OPTI S210 G metal belt saw can be turned 45° to allow angular cuts.
With the OPTI S275 G metal belt saw, you can make angular cuts in a range of 0º - 60º.
A hydraulic cylinder with a manually adjustable feed regulation valve acts as the feed adjust-
ment system for the saw arch.
The tension of the saw blade is regulated using a hand wheel.

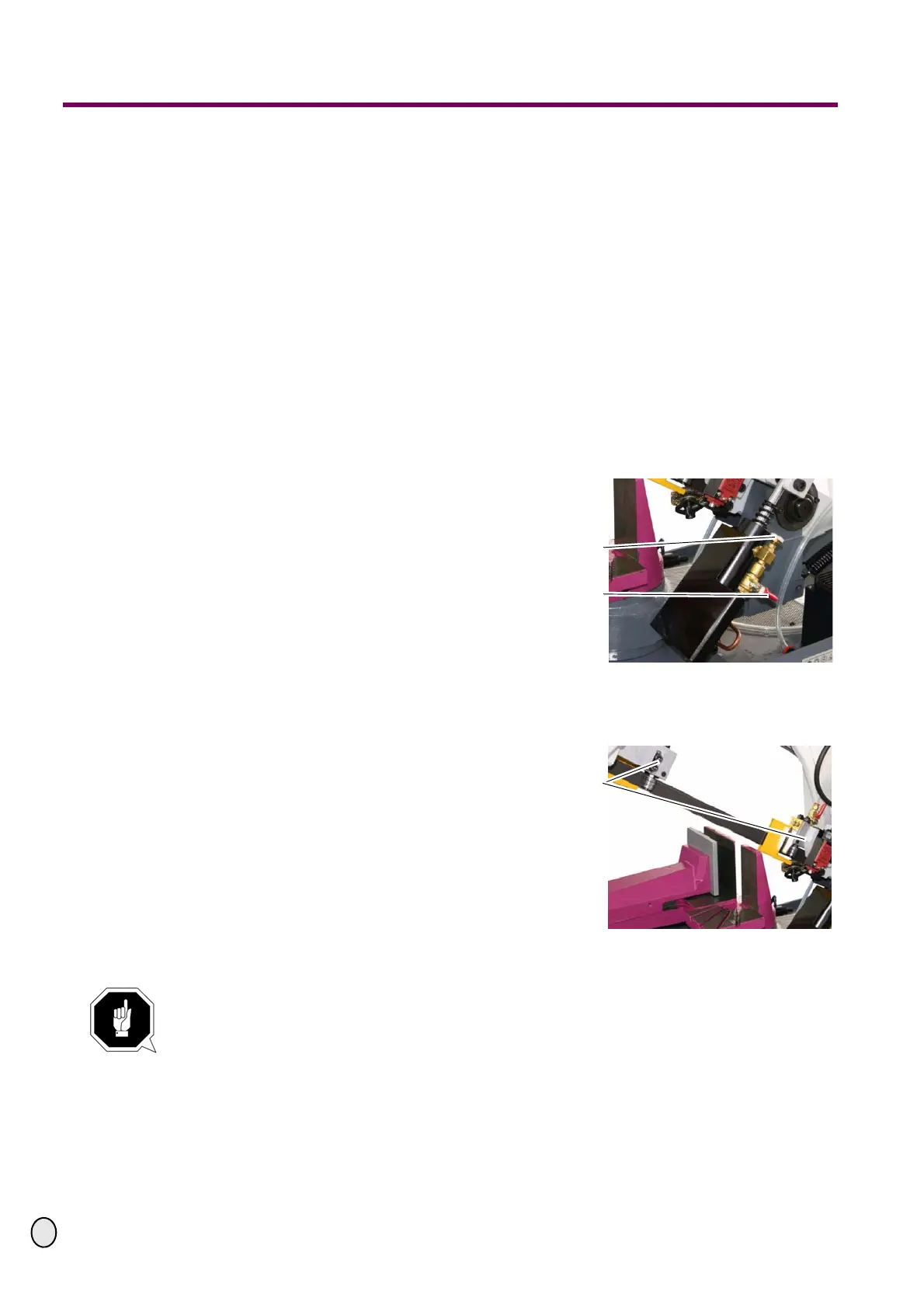

4.1 Hydraulic feed
The saw arch is advanced by means of the
hydraulic cylinder.
Illustr.4-1: Hydraulic feed
4.2 Saw belt guide
The adjustable guide for the saw belt and
flexible tube for the cooling agent can be
used to adjust the free distance when saw-
ing small parts.
Illustr.4-2: Saw belt guide
ATTENTION!
An unnecessarily wide space between the work piece and the saw belt guide, in combina-
tion with a high feed rate very quickly causes the saw blade to wear down.
Feed regulation valve
Stop valve
Saw belt guide
