Assembly
OPTIMUM
MASCHINEN - GERMANY
© 2008
GB
Page 18 Metal belt saw S210G; S275G; S210G Vario; S275G Vario version 1.3.1 4 February 2008
Assembling the machine stand
 Fit the side panels of the machine stand with the fitting tools supplied.
 Place the machine stand on a suitable base. Compensate for any unevenness in the base.
 Secure the machine stand on the ground.
 Place the metal belt saw on the machine stand.
 Screw the metal belt saw to the machine stand.
 Screw the drip pan to the machine stand.

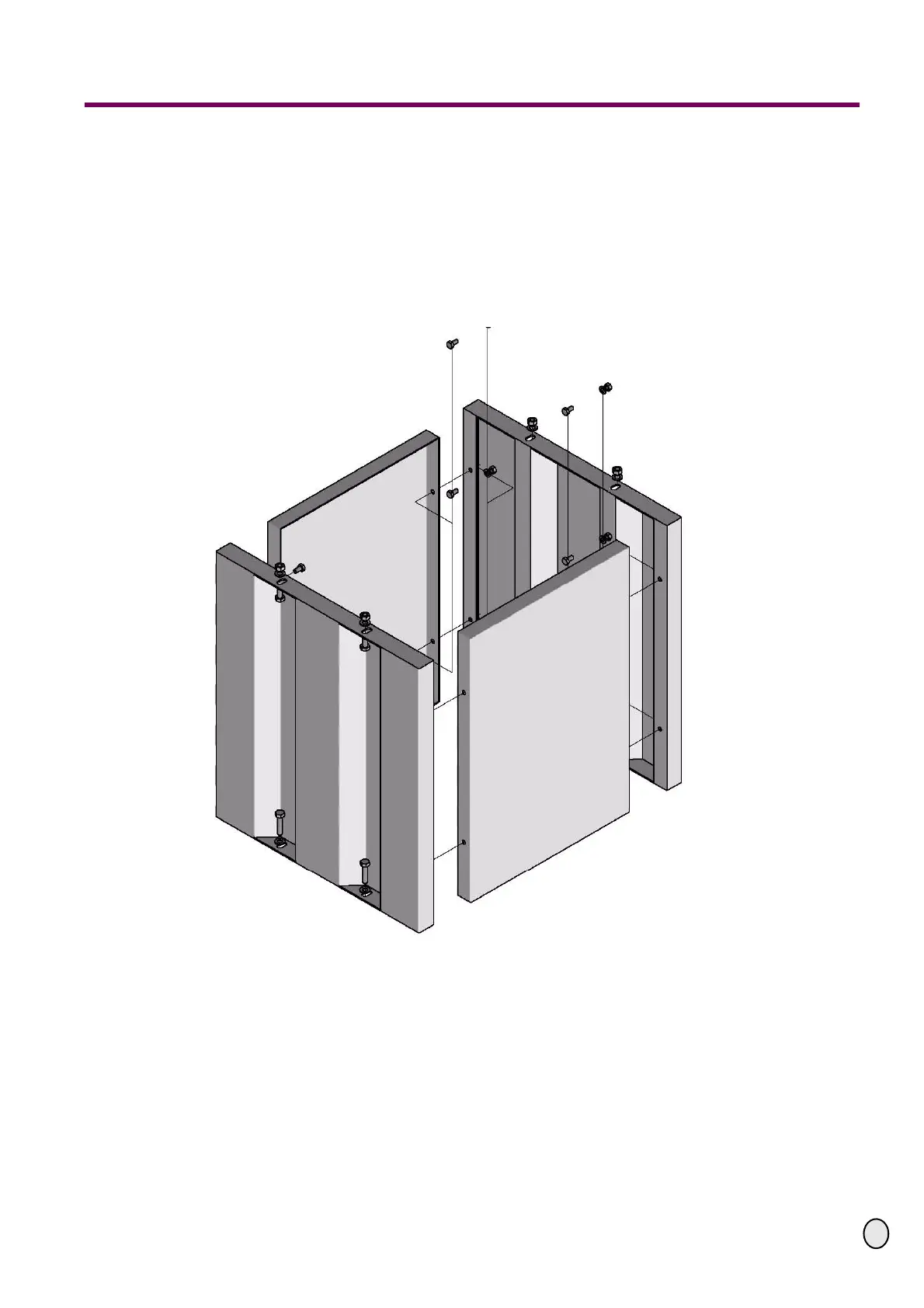

Illustr.3-1: Machine stand assembly diagram
