DC-600ETH version 1.4
10
Control central and
paging desk
DC-600ETH

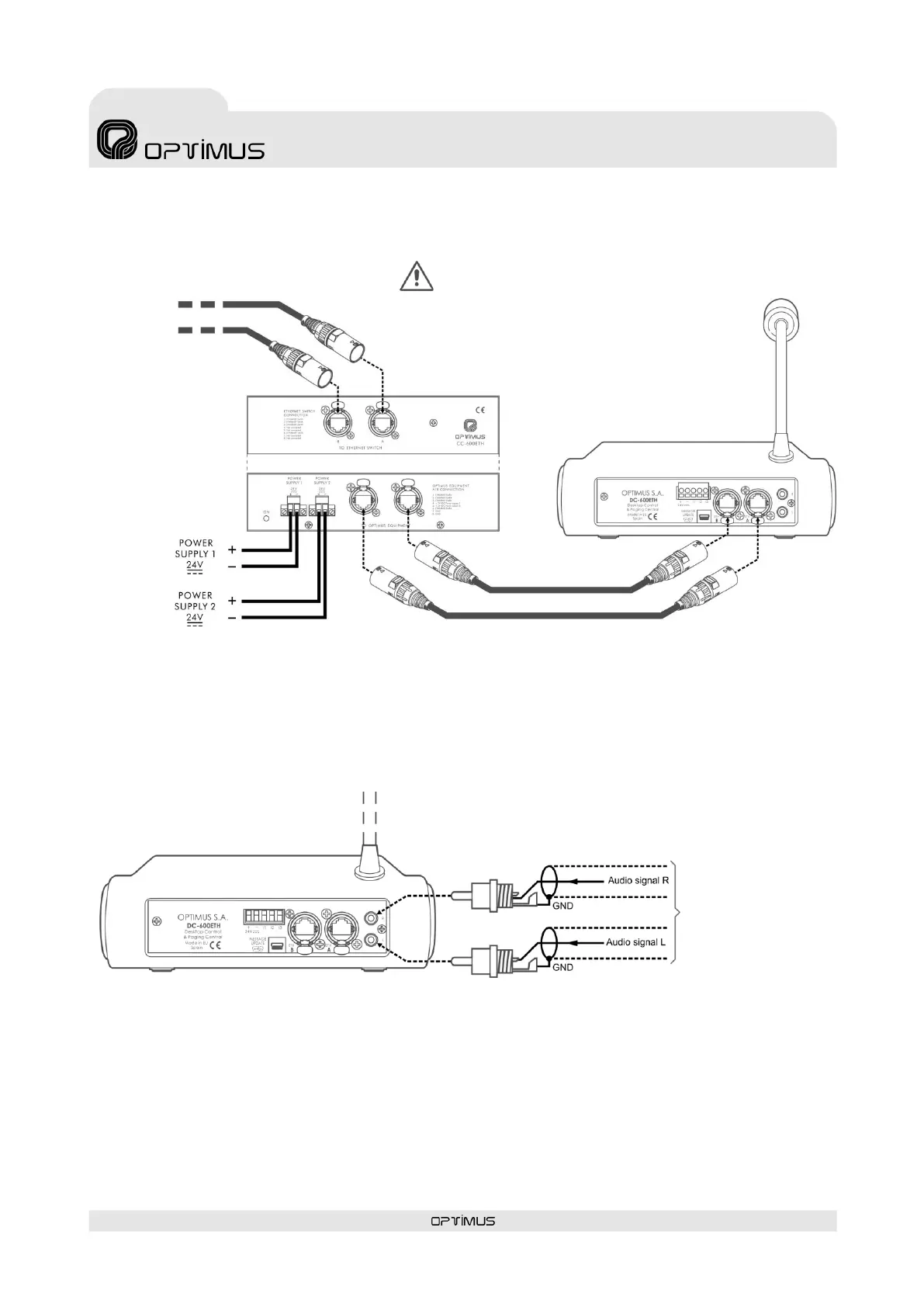

4.2. Connection in installations with redundant Ethernet network and
double power supply
4.3. Connection of a music source to the desk
Connection
to the
Ethernet
switch
Music
source
Figure 4
Figure 5
ATTENTION: WHEN CONNECTING THE CC-600ETH BOX
TO THE IP NETWORK, ENSURE THAT THE CONNECTORS MARKED
“TO SWITCH” ARE USED. IF THE CONNECTORS MARKED “TO
OPTIMUS EQUIPMENT” ARE USED BY ERROR, THE SWITCH OR
ROUTER IN THE INSTALLATION MAY BE DAMAGED
