Optimus DC-600ETH - 3 Rear View; 4 Connections; Standard Connection

DC-600ETH version 1.4
9
Control central and
paging desk
DC-600ETH

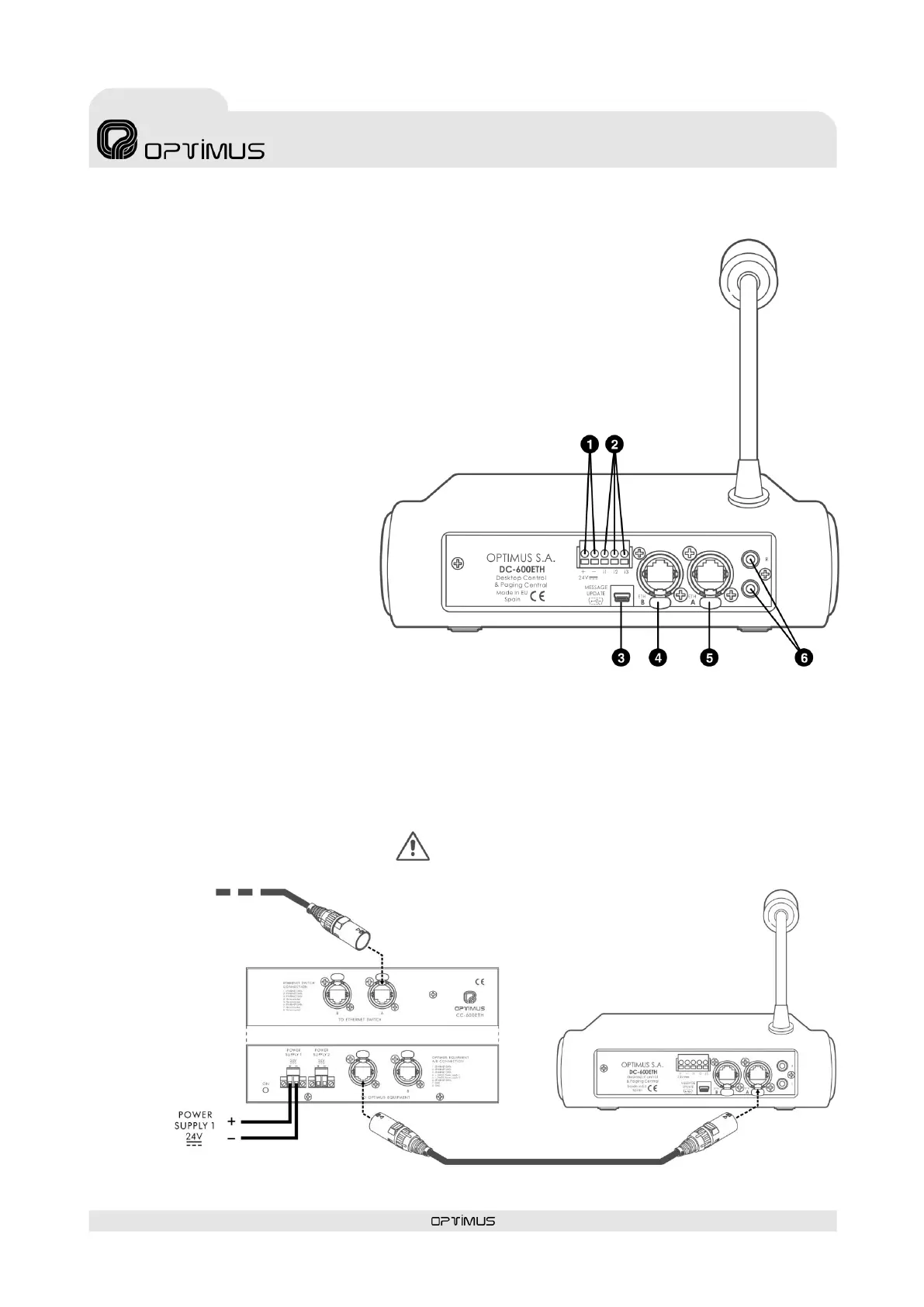

3. REAR VIEW
(1) 24 V DC power supply input
It can be used to power the desk
without the CC-600ETH connection
box.
(2) I1, I2 and I3
Configurable input contacts.
(3) MESSAGE UPDATE connector
USB connector. Through this
connector, pre-recorded messages can
be copied into the internal MP3
memory of the desk, where up to 16
Mb of audio files in MP3 format can be
stored.
(4) ETH B connector
Used, in a redundant network, as a
secondary connection to the IP
network.
(5) ETH A connector
Used for connection of the desk to the
IP network.
(6) RCA connectors R and L
They support the connection of a music source, sending the music program via IP.
4. CONNECTIONS
4.1. Standard connection
Connection
to the
Ethernet
switch
Figure 3
Figure 2
ATTENTION: WHEN CONNECTING THE CC-600ETH BOX
TO THE IP NETWORK, ENSURE THAT THE CONNECTORS MARKED
“TO SWITCH” ARE USED. IF THE CONNECTORS MARKED “TO
OPTIMUS EQUIPMENT” ARE USED BY ERROR, THE SWITCH OR
ROUTER IN THE INSTALLATION MAY BE DAMAGED.
