Name and function of your
Y
projector

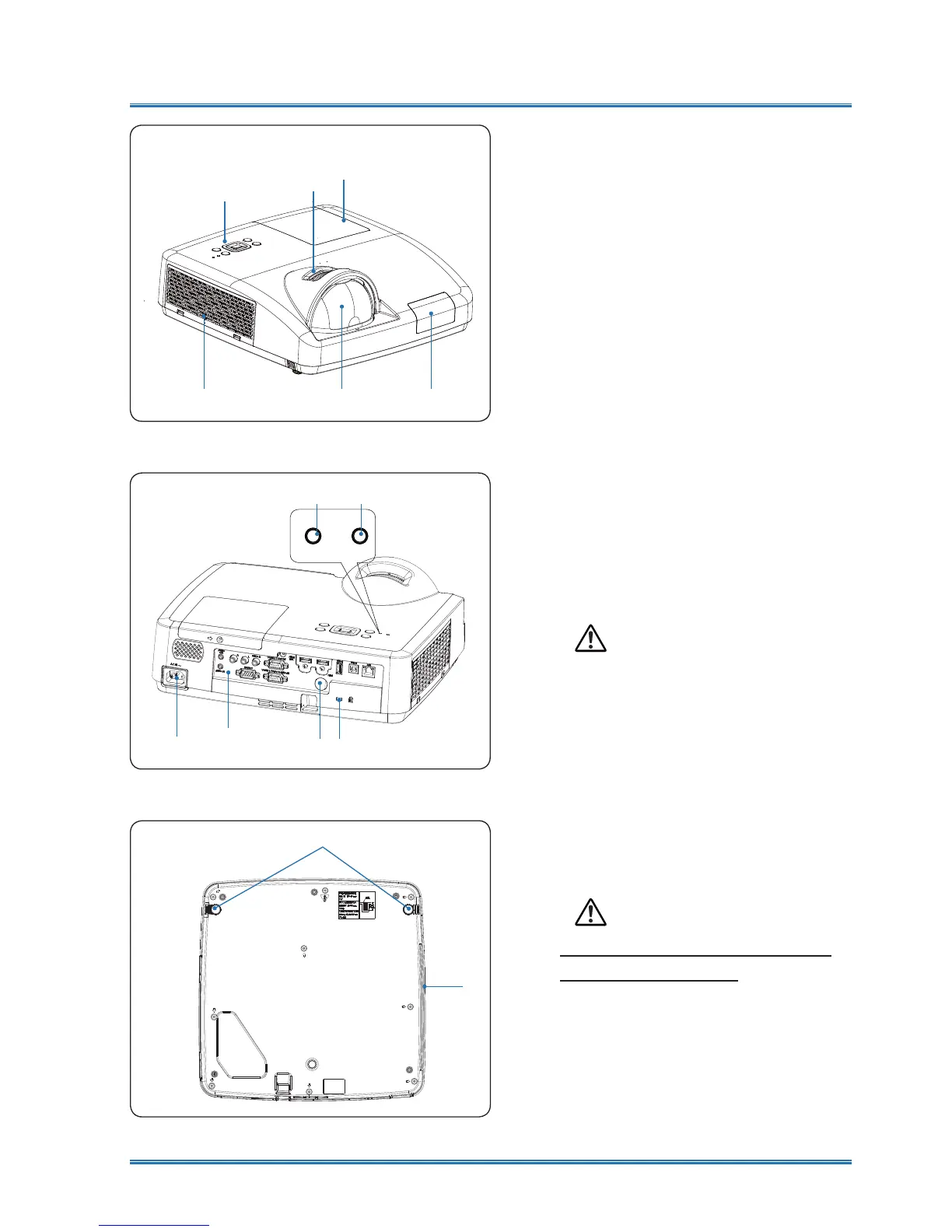

Front/Top
①
Top control panel
②
Focus
③
Lamp Cover
④
FILTER
⑤
Projection lens
⑥
Remote Receiver (Front)
Rear
⑦
AC Power Cord port
⑧
Terminal
⑨
Remote receiver (back)
⑩
Kensington Security Slot
⑪
WARNNING indicator
⑫
POWER indicator
Bottom
⑬
Adjustment pad
⑭
Air exhaust
Note:
Ɣ Kensington Security Slot is for a
Kensington lock used to deter theft
of the projector.
Ɣ Kensington is a registered trade-
mark of ACCO Brands Corporation.
①
②
③
④⑤⑥
⑦
⑧
⑨⑩
⑪⑫
⑬
⑭
Note:
Donot place your hands or other
objects near the vent:
Ɣ Vent will shed heat. Do not put
your hands or face, or thermolabile
objects placed near the outlet . You
need keep at least a distance of 3"
δ
1m
ε
away, or it may cause it
burnning or damage.
To Next Page
