Set up your projector
Ɣ Ambient brightness may affect your projection image quality. For the optimal image effect, it is
recommended to control brightness in your environment.
Ɣ 9DOXHVVKRZQLQ¿JXUHEHORZDUHDSSUR[LPDWHVRQO\7KH\PD\GLIIHUIURPWKHDFWXDORQHV

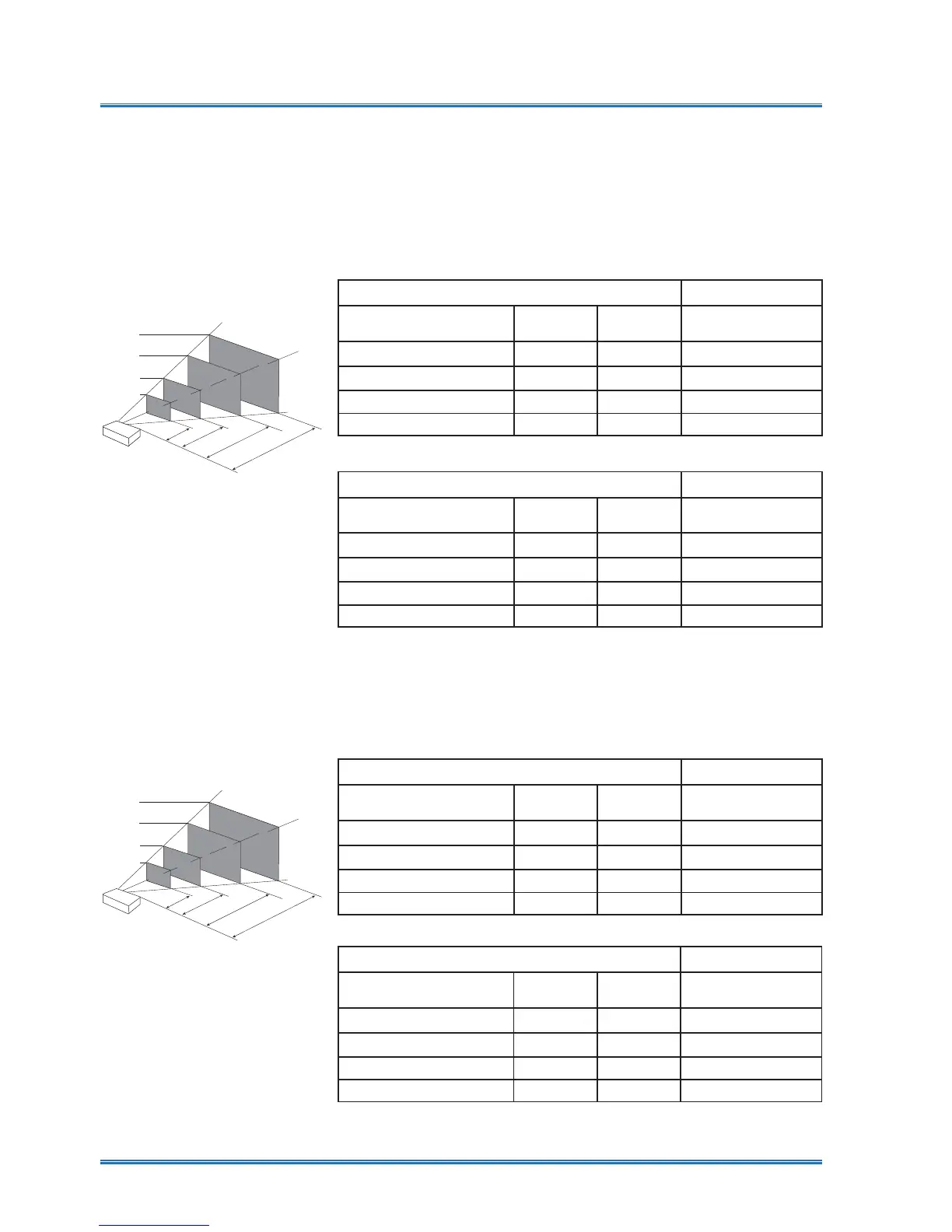

Screen size 4:3 Aspect
Dlag.[X] Width Height Distance
50" 1.016m 0.762m 0.455m
60" 1.219m 0.914m 0.552m
80" 1.626m 1.219m 0.748m
100" 2.032m 1.524m 0.943m
Screen size 16:9 Aspect
Dlag.[X] Width Height Distance
50" 1.107m 0.623m 0.498m
60" 1.328m 0.747m 0.605m
80" 1.771m 0.996m 0.817m
100" 2.214m 1.245m 1.030m
Screen size 16:10 Aspect
Dlag.[X] Width Height Distance
50" 1.077m 0.673m 0.484m
60" 1.292m 0.808m 0.587m
80" 1.723m 1.077m 0.796m
100" 2.154m 1.346m 1.004m
Screen size 16:9 Aspect
Dlag.[X] Width Height Distance
50"
1.107m 0.623m 0.498m
60" 1.328m 0.747m 0.605m
80" 1.771m 0.996m 0.817m
100" 2.214m 1.245m 1.030m
XGA series
3
NOTE
φ

ƔChart above shows about
the data of 4: 3.
50
Ý
1016×762mm
60 Ý
1219×914mm
80 Ý
1626×1219mm
100Ý
2032×1524mm
0.455m
0.552m
0.748m
0.943m
WXGA series
3
NOTE
φ

ƔChart above shows about
the data of16:10.
50
Ý
1077×673mm
60 Ý
1292×808mm
80 Ý
1723×1077mm
100 Ý
2154×1346mm
0.484m
0.587m
0.796m
1.004m
