The symbols on the housing have the following meaning:
X SF/ Crosshair laser • CF/ Two point laser
D:S (focus point) = 75:1/ 16mm@1200mm D:S (focus point) = 62:1/ 1mm@62mm
D:S (far field) = 36:1 D:S (far field) = 4:1

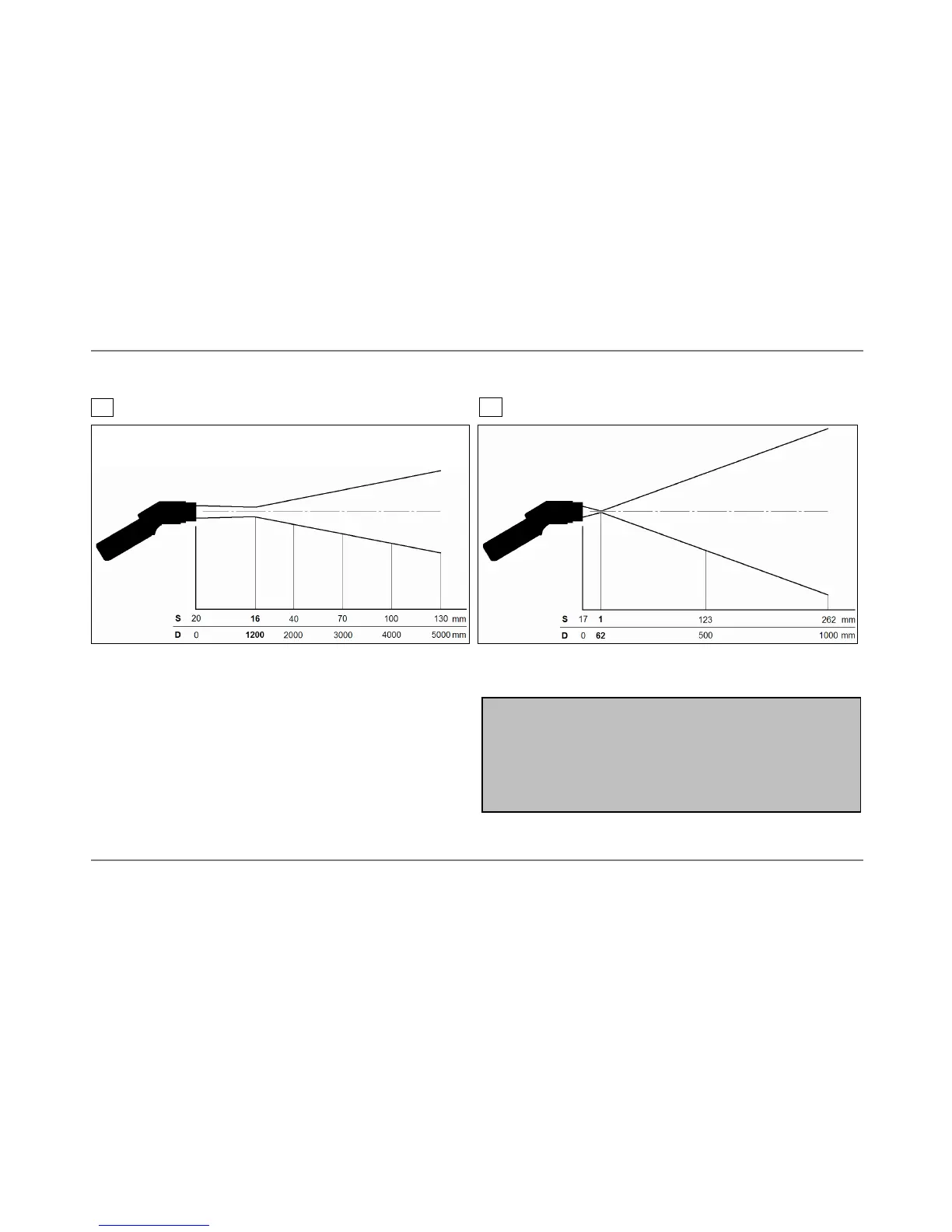

The measured area of the object (spot size)
depends on the distance. For a correct
measurement the spot size should have at least
the same size like the object or should be
smaller than that at all times.
D = Distance from front of the unit to the object
S = Spotsize
