optris LS – E2006-01-A
9
WARNING: Do not point the laser directly at the eyes of persons or animals! Do not
stare into the laser beam. Avoid indirect exposure via reflective surfaces!

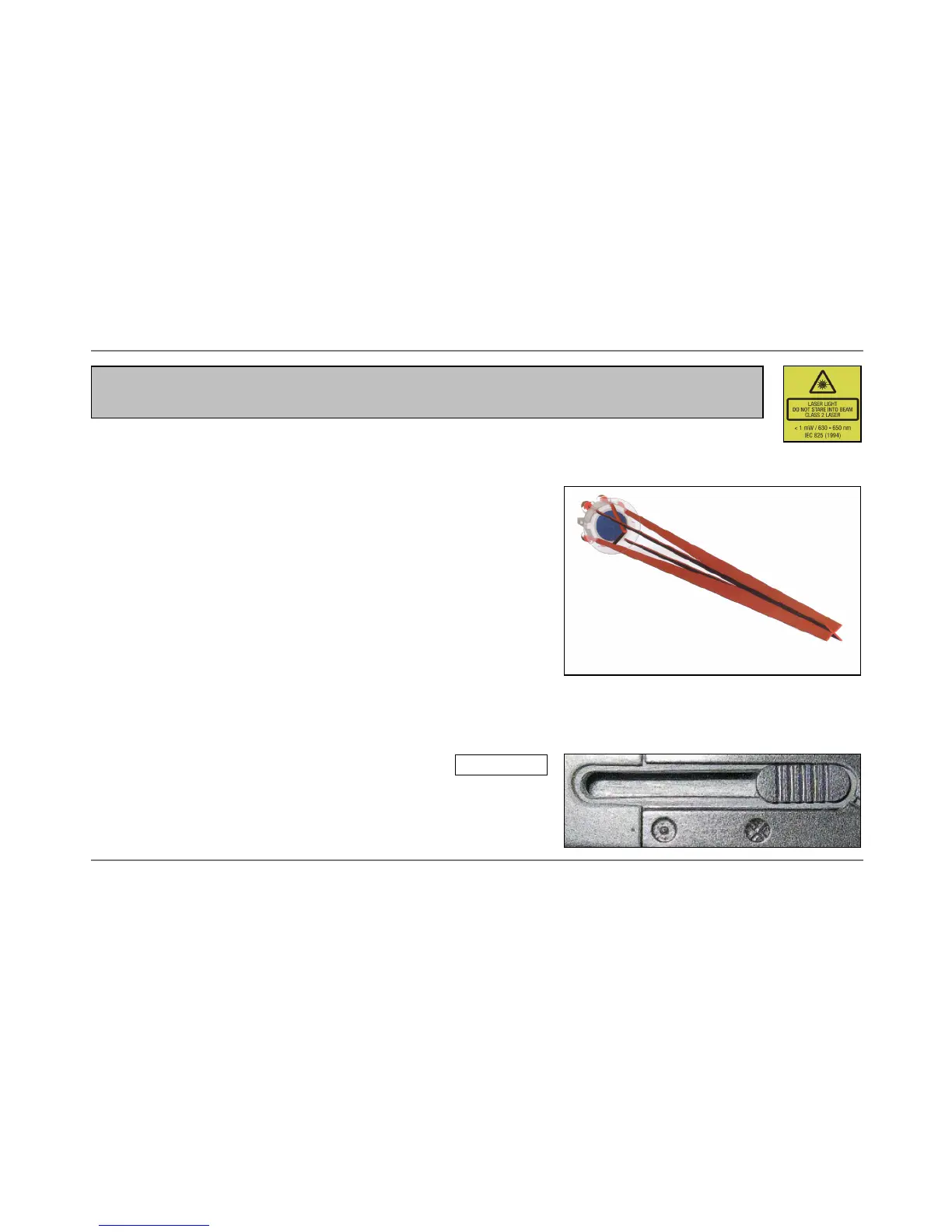

Optics
The LS has switchable optics. The two possible operating modes
are indicated as SF mode (Standard Focus) and CF mode
(Close Focus).
In the SF mode (standard operating mode) objects ≥ 16mm can
be measured. The measurement spot will be exactly marked with
the patented crosshair laser, i.e. the real size and location of the
spot is shown on the object – independently from the distance
and with no optical offset (see right figure).
In the CF mode objects ≥ 1mm (e.g. electronic components) can be measured. In this operating mode a two
point laser shows the spot on the target. Both laser beams cross at the focus distance (62mm from front of
housing) and indicate the minimum spot size at this distance (Diameter: 1mm).
To switch between SF and CF mode please shift the Optic switch
which is located beside the display, to the corresponding position
(see right figure).
