Measurement
Handling

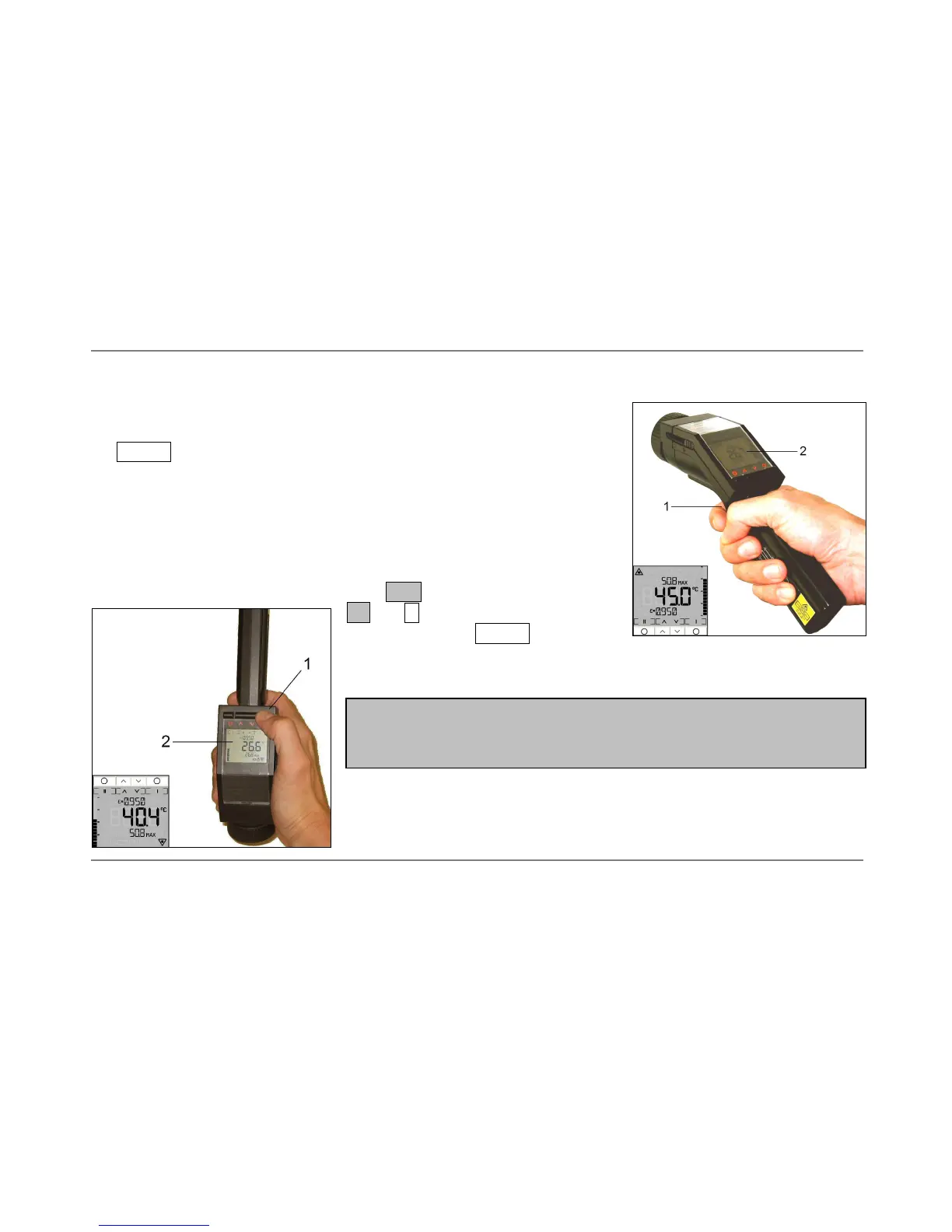

Please hold the unit as shown in the right figure and aim at the target. Pull
the Trigger [1] and keep it pressed – if the laser is activated the true size
and location of the measurement spot will be shown on the object surface.
The temperature of the object is shown in the display [2].
optris LS – E2006-01-A
6
The LS can also be used in vertical position (measurement downwards).
With this handling small objects like electronic SMD components can easily
be aimed and measured. For this purpose please hold the unit as shown in
the left figure. If the display switch is set to Auto (default setting) or set to
On, the I -button automatically gets
the function of the Trigger [1] and the
readings in the display [2] are turned by 180°
[► Flip-Display].
Please note, that at vertical use (Flip mode) in context with a
switched display also the assignment of the Mode buttons (I and II)
will chan
