Install Boot Disk Backplane
104 Oracle Database Appliance Service Manual • February 2016
a.

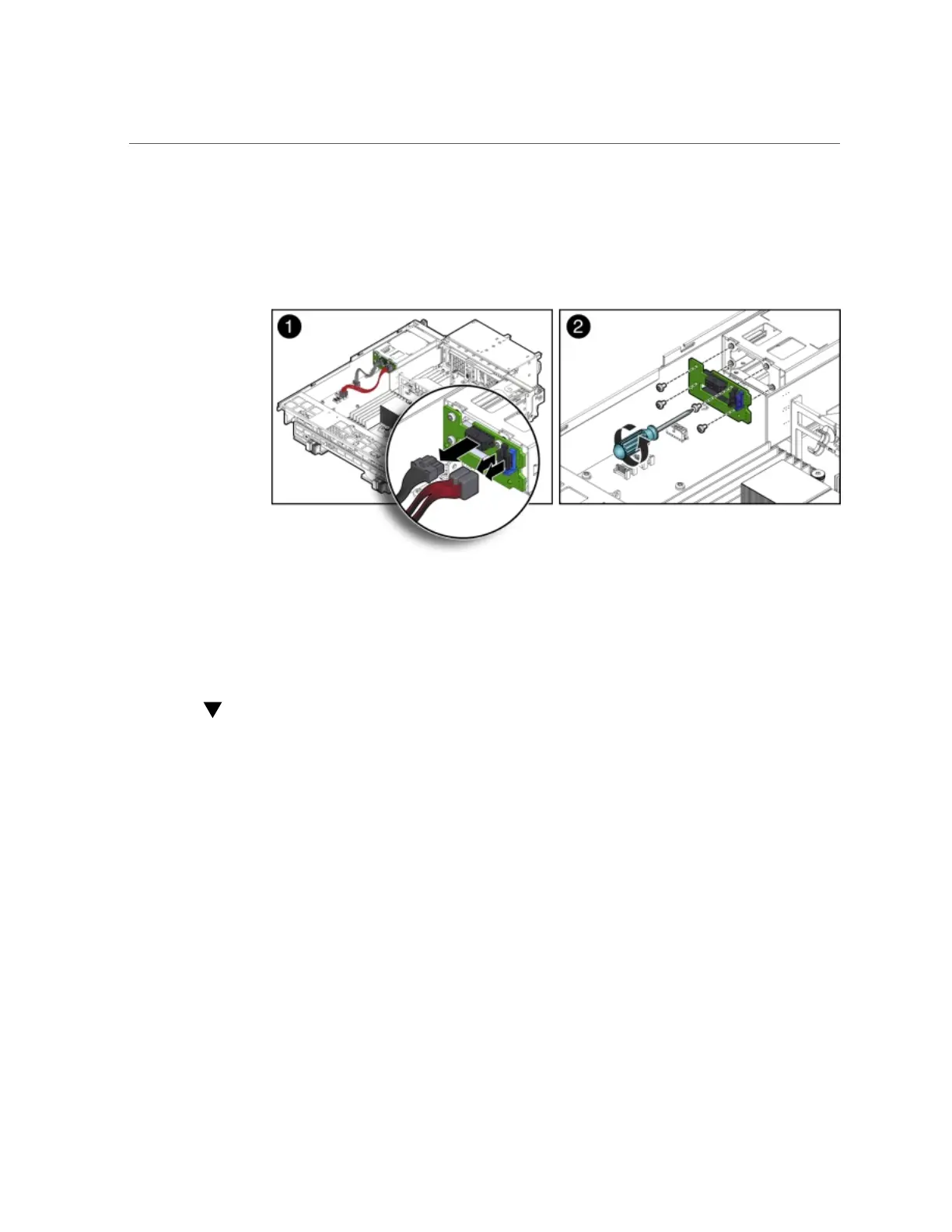

Disconnect the power and data cables [1].
b.
Remove the four Phillips screws that secure the boot disk backplane to the
rear-mounted disk drives assembly and remove the backplane [2].
4.
Place the boot disk backplane on an antistatic mat.
Install Boot Disk Backplane
1.
Install the boot disk backplane.
a.
Position the boot disk backplane on the rear-mounted disk drives assembly
and install and tighten the four Phillips screws to secure the backplane [2].
b.
Reconnect the power cable and the data cables [1].
2.
Return the server node to operation.
a.
Re-seat the boot disk drives.
See “Install a Boot Drive” on page 53.
b.
Install the server node top cover.
See “Install Server Node Top Cover” on page 139.
