Oracle Database Appliance X5-2 Status Indicators
12 Oracle Database Appliance Service Manual • February 2016
Note - The links below take you to topics outside of the Oracle Database Appliance library to
the Oracle Server X5-2 documentation library. Use your browser's Back button to return to the
Oracle Database Appliance library.
■
Server Node General Status Indicators
■
Server Node Fan Status Indicators
■
Server Node Storage Drive Status Indicators
■
Server Node Power Supply Status Indicators
■
Server Node Motherboard Status Indicators
Storage Shelf Status Indicators
Storage shelves are supported with Oracle Database Appliance X5-2. They include controls and
indicators on the front panel, hard drives, SSD drives, power supplies, and SAS I/O modules.
Storage Shelf Front Panel and Drive Indicators

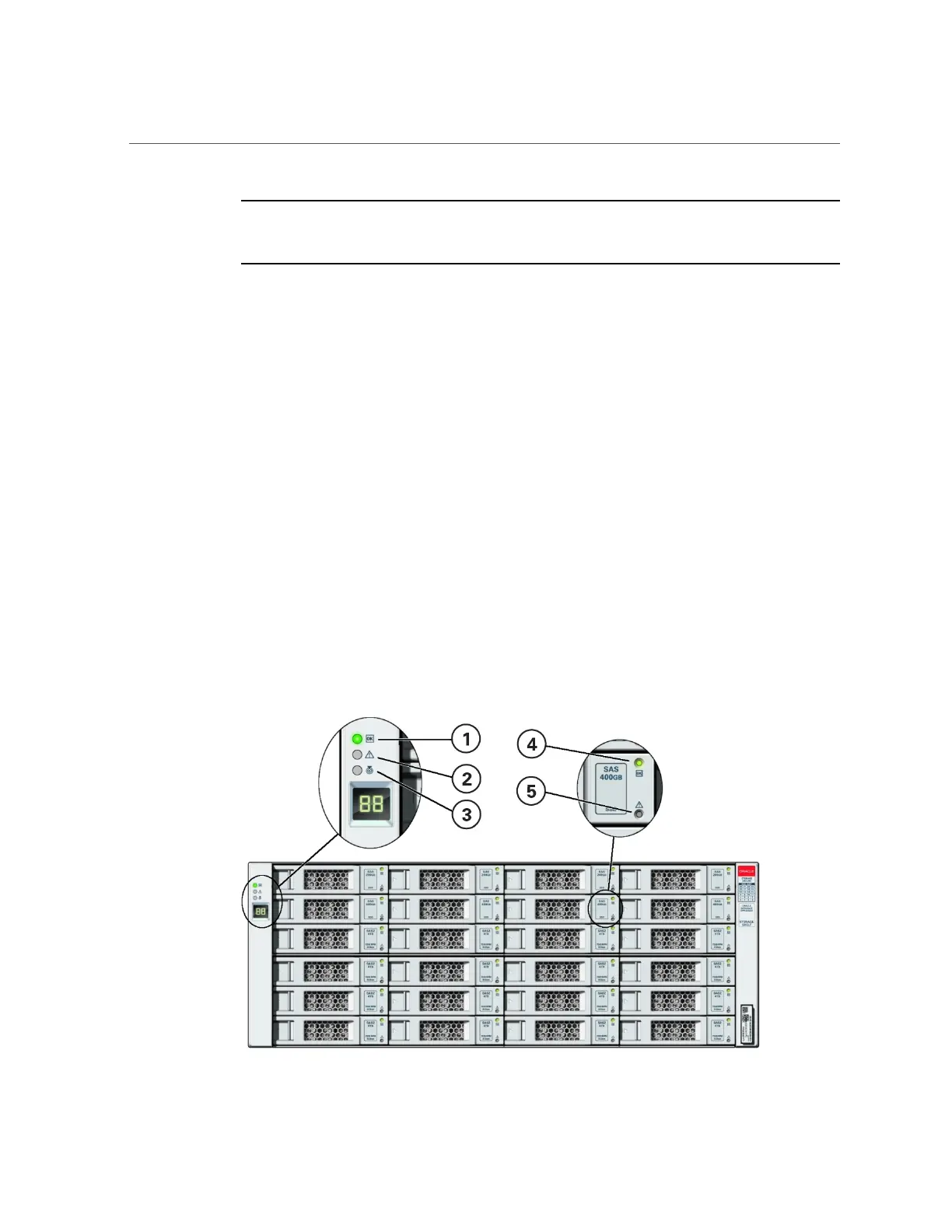

The following figure shows the controls and indicators on the storage shelf front panel and
drives.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
