Oracle Database Appliance (Original Version) Status Indicators
22 Oracle Database Appliance Service Manual • February 2016

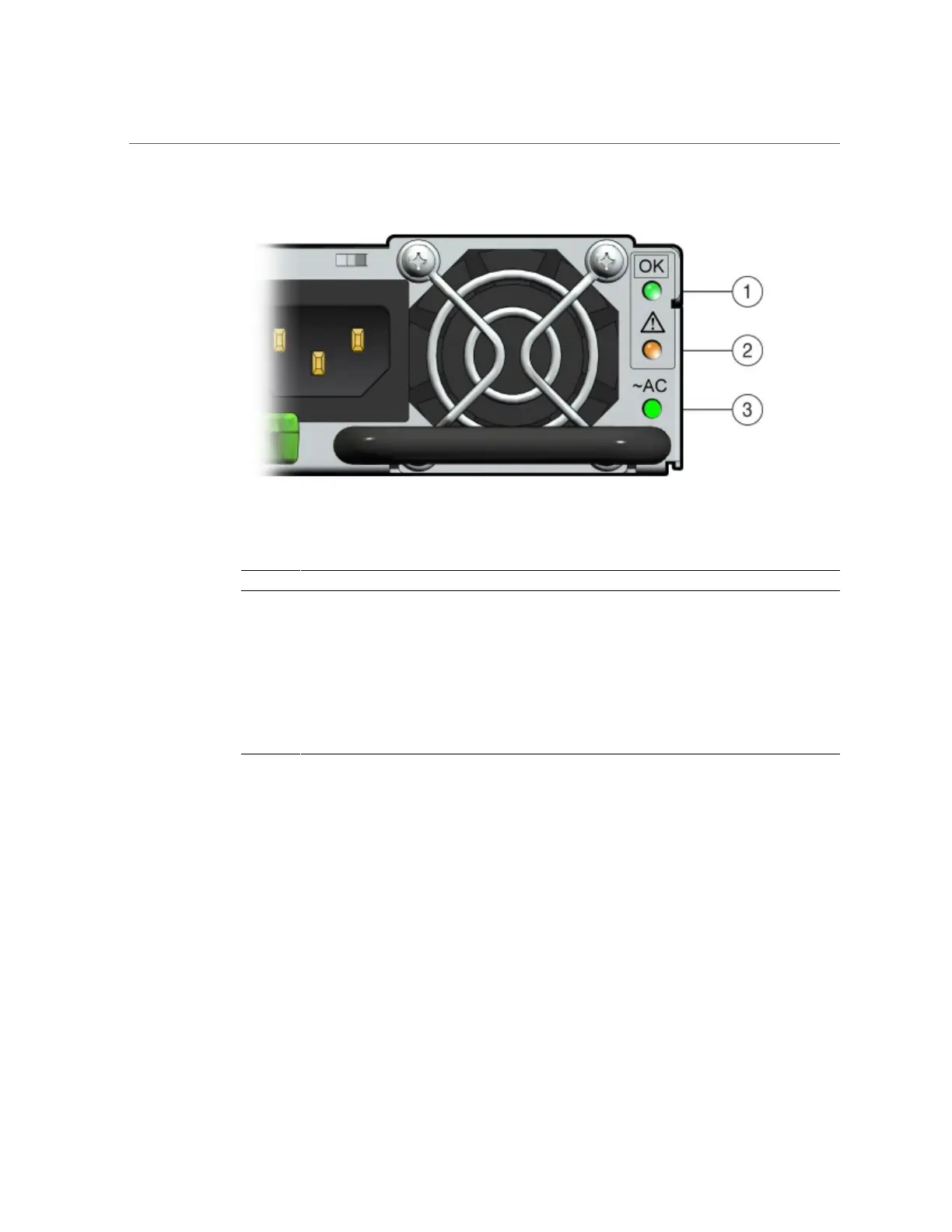

Callout Indicator/LED: Color State Meaning
1 OK: green ■ On – The power supply is operating normally.
■ Off – The power supply is unplugged or turned off.
2 Service Required: amber ■ On – The power supply is faulty. The front REAR PS LED and
the front and rear panel Service Required LEDs are also lit if the
system detects a power supply fault.
■ Off – Normal operation.
3 AC Present: green ■ On – The power supply is plugged in and AC power is available,
regardless of system power state.
■ Off – The power supply is unplugged or turned off.
Rear Server Node Status Indicators
Each server node in Oracle Database Appliance (original version) has four summary status
LEDs that are located on its back panel, as shown in the following table.
