Oracle Database Appliance (Original Version) Status Indicators
Chapter1 • Overview of System Status Indicators and LEDs 23

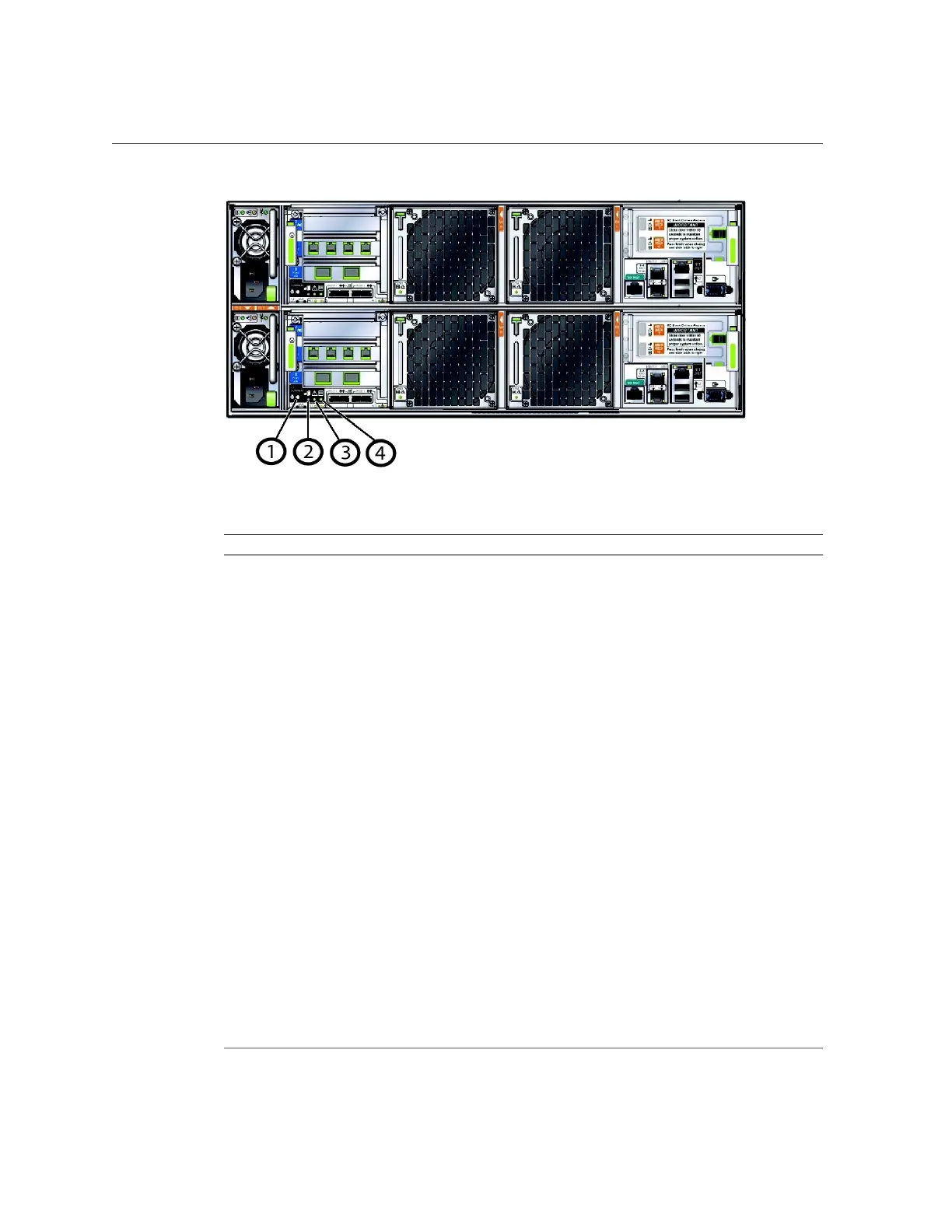

Callout Indicator/LED: Color State Meaning
1 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
■ Indicator Test Mode – Push and hold the Locate button for 5
seconds to activate the push to test feature, which causes all
LEDs except disk activity and power supply LEDs to light for 15
seconds.
2 Ready to Remove: blue ■ Off – Normal operation.
■ Fast Blink – The system is preparing a customer-replaceable
unit (CRU) (disk drive, fan module, or power supply) for safe
removal but it is not ready yet.
■ Steady on – The CRU can be safely removed.
3 Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in system or a subsystem within the
chassis.
4 Power/OK: green This LED indicates the operational state of the chassis. This LED can
be in the following states:
■ Off – AC power is not present or the Oracle ILOM boot has not
completed.
■ Standby blink – Standby power is on and Oracle ILOM can be
accessed, but full chassis power is off. The LED blinks at a 10
percent duty cycle (0.1 second on, 2.9 seconds off), that is, the
light is on for a very short period of time.
■ Slow blink – The startup sequence has been initiated on the host.
The LED blinks at a 50 percent duty cycle, which is noticeably
longer than the STANDBY BLINK. This pattern should begin
immediately following powering on the system. This status
indicates either 1) power-on self-test (POST) diagnostics running
