Oracle Database Appliance User Manual

Enable or Disable Option ROM Settings
166 Oracle Database Appliance Service Manual • February 2016
Configuring Option ROM Settings in BIOS
The Oracle Database Appliance (original version) BIOS Option ROM space is 128 Kbytes. Of
these 128 Kbytes, approximately 80 Kbytes are used by the VGA controller, the disk controller,
and the network interface card. Approximately 48 Kbytes remain to be shared by the Option
ROMs on all bootable PCI-Express plug-in cards.
Enable or Disable Option ROM Settings
1.
Access the BIOS Setup Utility menus.
For instructions, see “Accessing the BIOS Setup Utility Menus” on page 167.
2.
In the BIOS Setup Utility menus, use the arrow keys (or Tab key) to navigate to
the Boot menu.
The Boot menu appears.
3.
In the Boot menu, highlight the Option ROM setting, and then press Enter.
4.

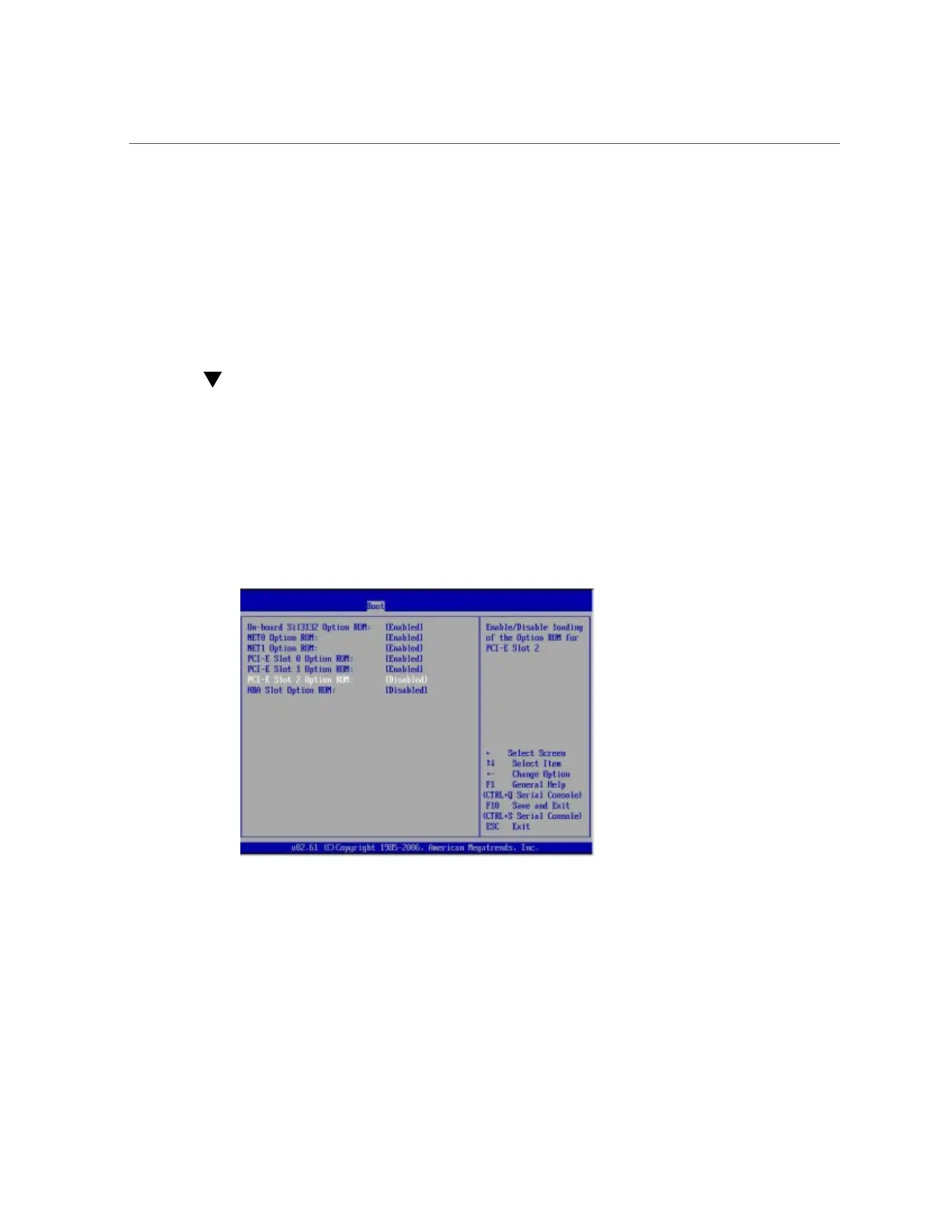

Check whether the settings in your screen output match what is shown above. If
they do not match, proceed to the next step. If they match, proceed to Step 5 and
exit BIOS.
5.
To change the settings, in the Boot menu listing the Option ROM settings,
highlight the applicable Option ROM setting to modify, then press Enter.
A dialog box appears listing the available settings.
