Oracle Database Appliance X5-2 Status Indicators
Chapter1 • Overview of System Status Indicators and LEDs 13
Callout Indicator/LED: Color State Meaning
1 OK: green ■ On – The storage shelf is powered on and operating normally.
■ Off – The storage shelf is unplugged or turned off.
2 Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the storage shelf.
3 Locate: white ■ Off – Normal operation.
■ Fast blink – This LED blinks to help locate the system. Operators
can turn this indicator on and off remotely using Oracle ILOM.
■ Pressing this button toggles the fast blink on or off.
4 Drive Service Required: amber ■ Off – Normal operation.
■ Steady on – A fault is present in the disk drive.
5 Power/Activity: green ■ On – The drive is installed and recognized by the system but
there is no drive activity.
■ Blink – The LED blinks randomly in response to data being
written to or read from the drive.
■ Off – The drive is powered off or the installed drive is not
recognized by the system.
Storage Shelf Back Panel Indicators

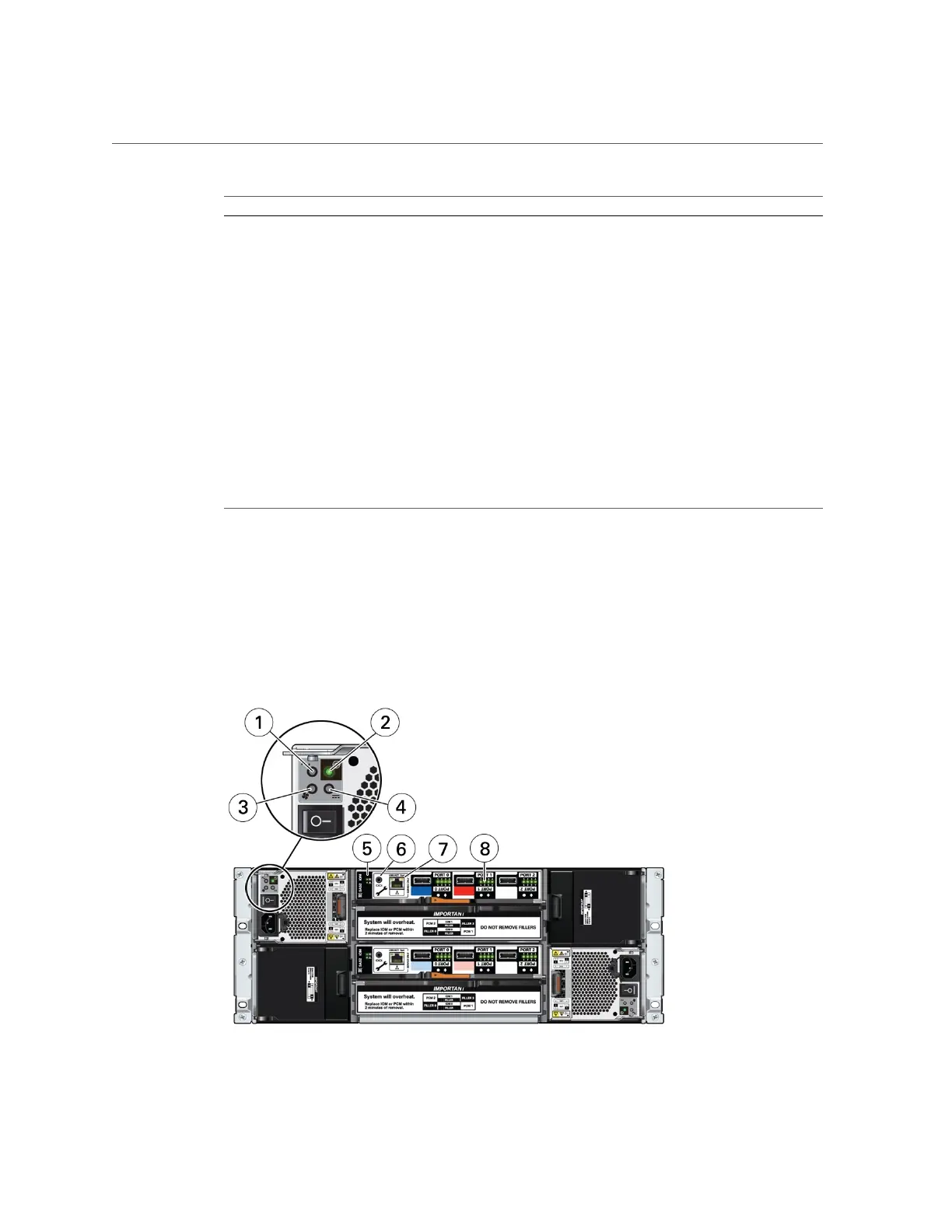

The following figure shows the controls and indicators on the storage shelf back panel and
drives.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
