Install Power Distribution Board
108 Oracle Database Appliance Service Manual • February 2016
b.

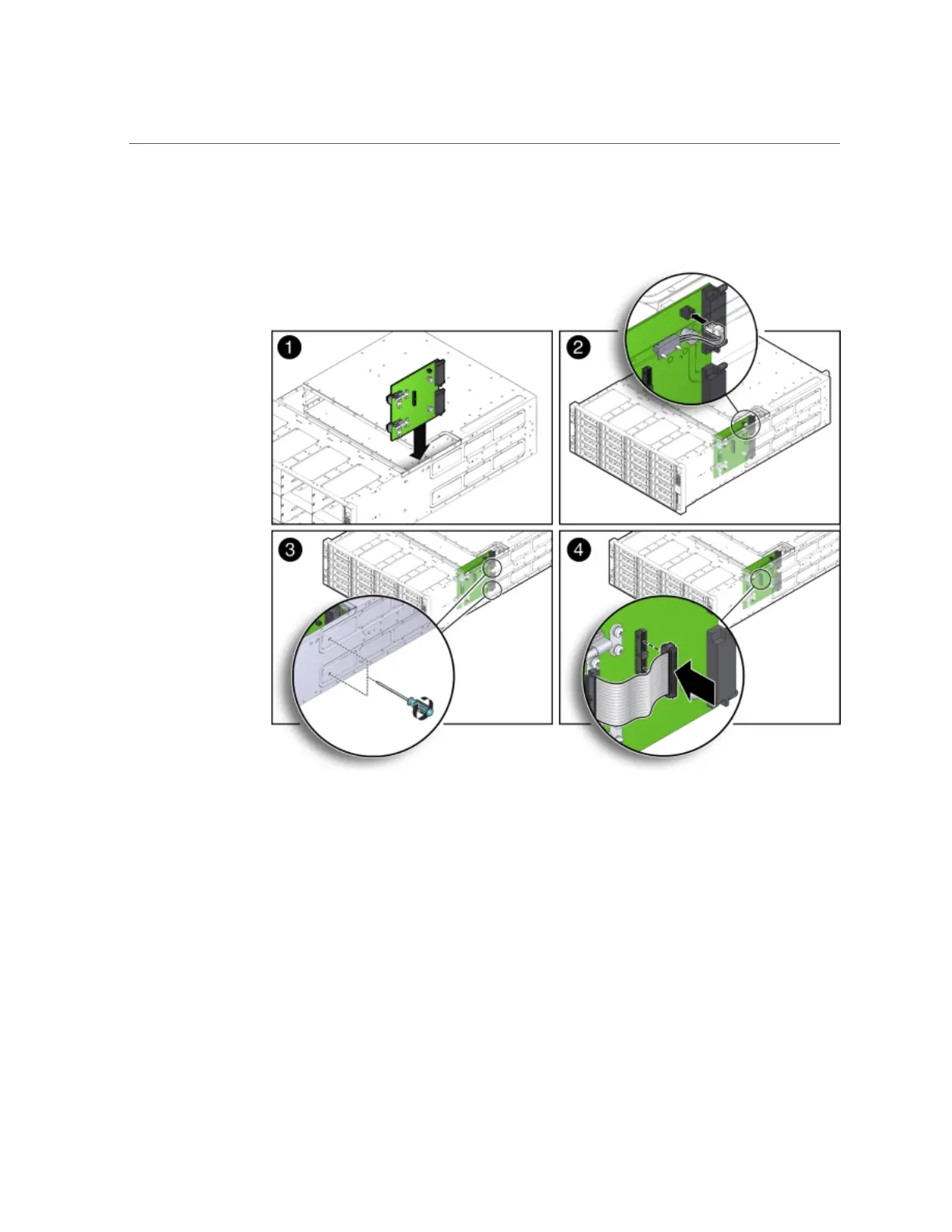

Reconnect the chassis interlock switch cable [2].
c.
Align the power distribution board with the two power connectors on the
disk midplane module and slide the power distribution board forward until
the connectors seat.
d.
To secure the power distribution board to the system, use the holes in the
system side wall to access and tighten the two Phillips screws [3].
e.
Reconnect the power distribution board ribbon cable [4].
2.
Return the system to operation.
a.
Install both server nodes into the system.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
