Install Disk Midplane Module HDD Cable
116 Oracle Database Appliance Service Manual • February 2016
See “Shutting Down a Server Node and Powering Off the System” on page 31.
b.
Disconnect the power cords from the system.
c.
If the system is installed in a rack, remove it.
See the Oracle Database Appliance Owner's Guide for instructions.
d.
Attach an antistatic wrist strap.
See “Performing Electrostatic Discharge and Antistatic Prevention Measures” on page 34.
2.
Remove the middle section of the system top cover.
See “Removing the Middle Section of the System Top Cover” on page 36.
3.

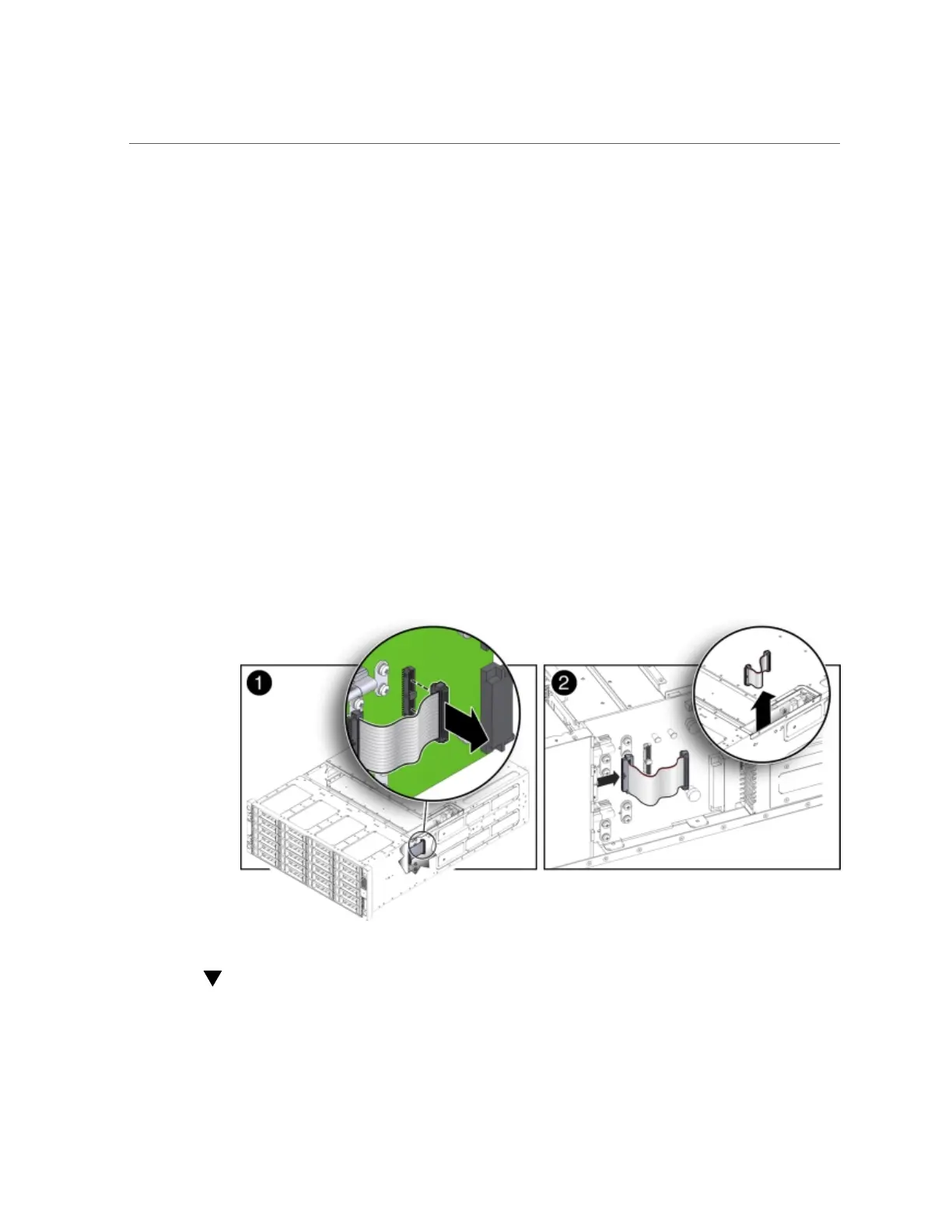

Disconnect the HDD ribbon cable connector located on the power distribution
board [1]).
4.
Disconnect the HDD ribbon cable connector located on the disk midplane
module [2].
Install Disk Midplane Module HDD Cable
1.
Reconnect the HDD ribbon cable connector located on the disk midplane module
[2]).
