Oracle Database Appliance User Manual

Access BIOS Setup Utility Menus
168 Oracle Database Appliance Service Manual • February 2016
■
Connect to the server node using the Oracle ILOM Remote Console.
The following procedure describes the steps for accessing the BIOS Setup Utility menus.
Access BIOS Setup Utility Menus
1.
Power-on or power-cycle the server node.
2.

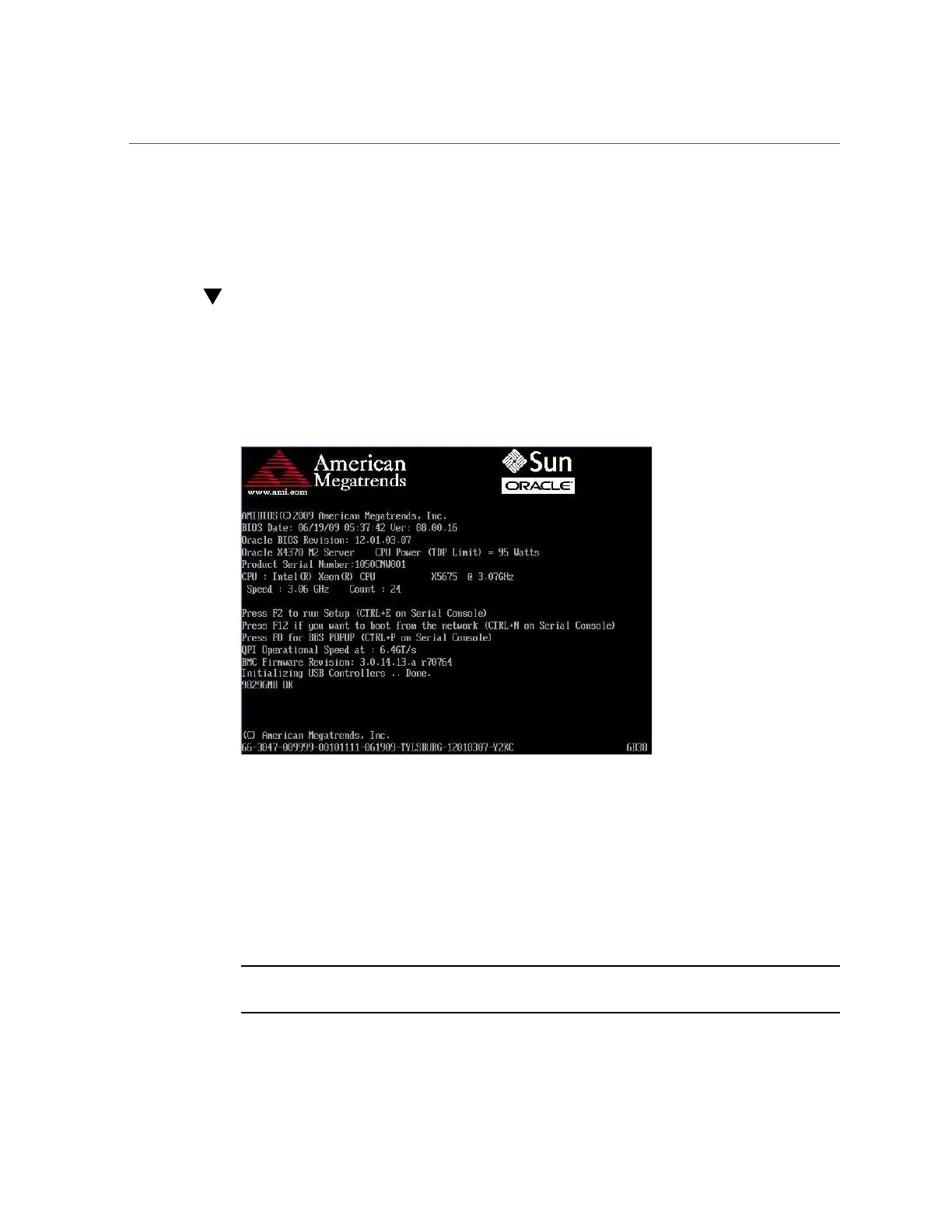

The following information appears on the screen:
3.
To enter the BIOS Setup Utility, do the following:
a.
Wait for the last line of the screen output to change to Initializing USB
Controllers..Done
This will take several seconds.
b.
When Done appears, press the F2 key immediately.
Note - If there is an error during the boot process, you can press F1 to access the BIOS Setup
Utility.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
