Oracle Database Appliance User Manual

Shut Down a Server Node
32 Oracle Database Appliance Service Manual • February 2016

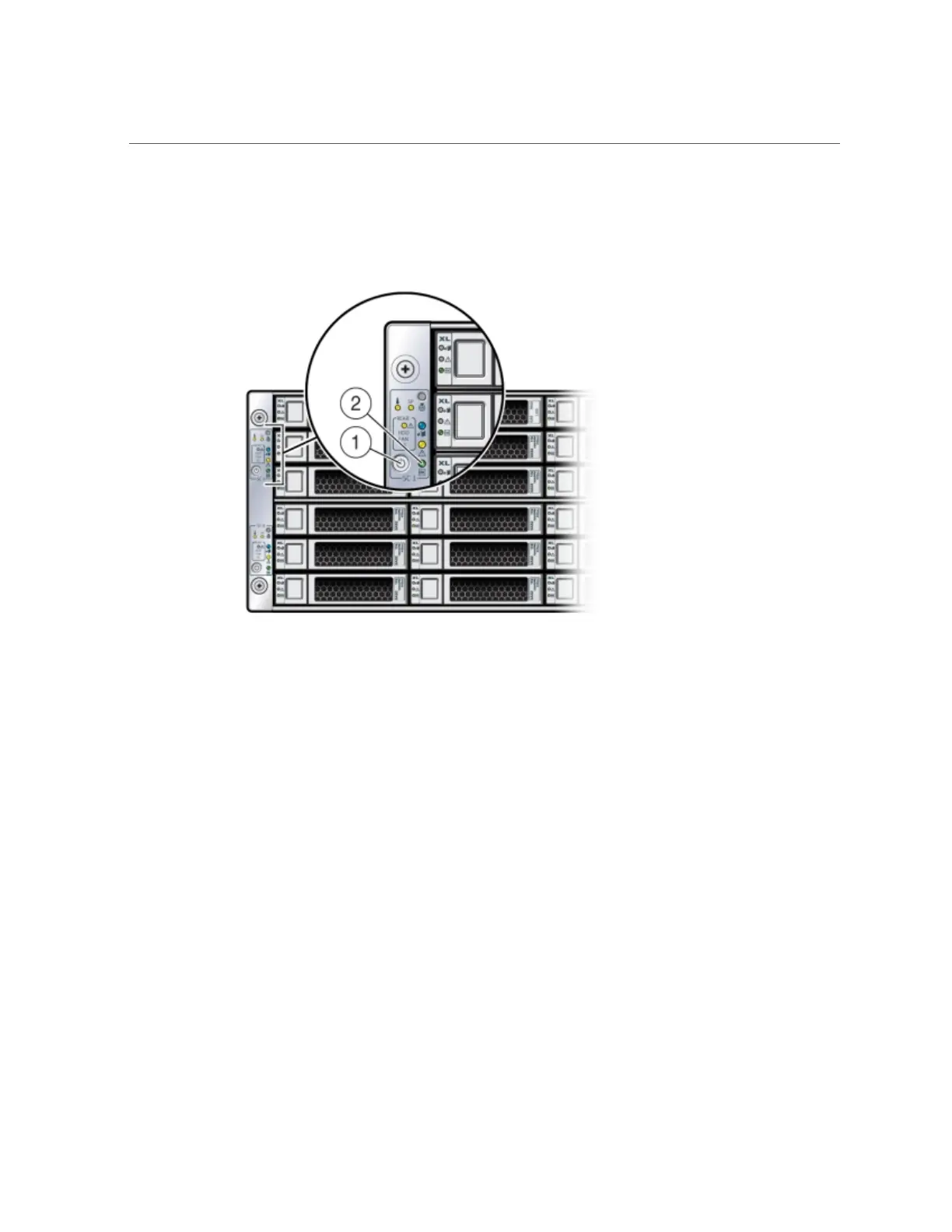

When the server node is shut down, the Power/OK LED [2] on the server node's front panel
flashes, indicating that the server node is in standby power mode.
2.
To shut down a server node using the Oracle ILOM, perform one of the following:
■
Using the Oracle ILOM web interface:
a.
Open a browser and enter the server node's service processor IP
address in the browser's address field.
b.
At the log in page, type a user name (the account must have Reset and
Host Control (r) privileges) and password, and click the Log In button.
c.
Go to Remote Power Control and do one of the following:
■
Select Graceful Shutdown and Power Off from the Select Action list box and
then click Save and OK.
The server node shuts down gracefully.
■
Select Immediate Power Off from the Select Action list box and then click Save
and OK.
The server node shuts down immediately.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
