Oracle Database Appliance User Manual

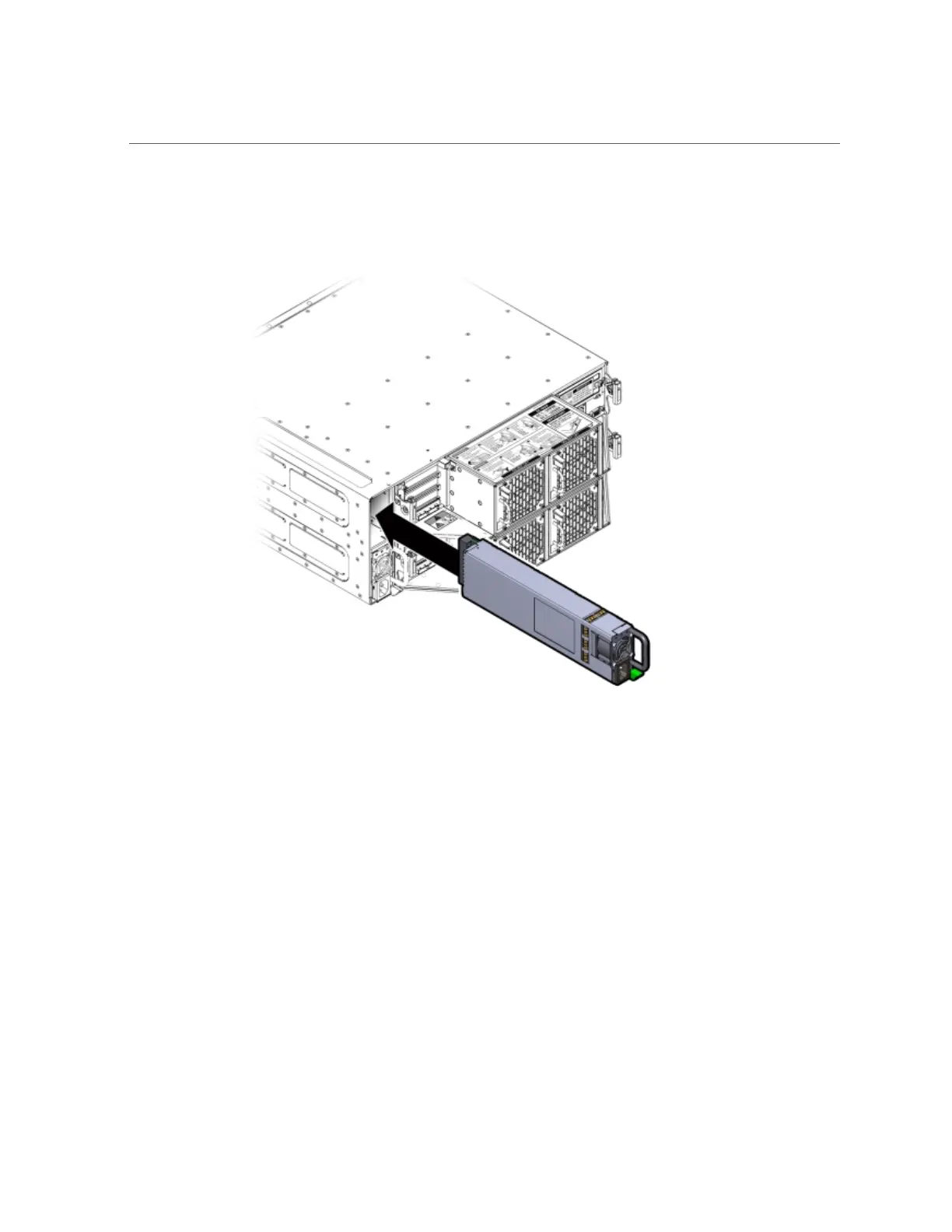

Install a Power Supply
60 Oracle Database Appliance Service Manual • February 2016
The release latch engages when the power supply is fully seated.
3.
Reconnect the power cord to the power supply and verify the following:
■
The power supply AC Present LED is lit
■
The power supply Service Required LED is off.
4.
Verify that the following LEDs are off:
■
Service Required LEDs located on the front of both server nodes
■
REAR HDD/PS/FAN LED located on the front of both server nodes
See “Storage and Boot Drive Locations” on page 48 for more information about system
LEDs.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
