Oracle Database Appliance User Manual

Install DIMMs
70 Oracle Database Appliance Service Manual • February 2016

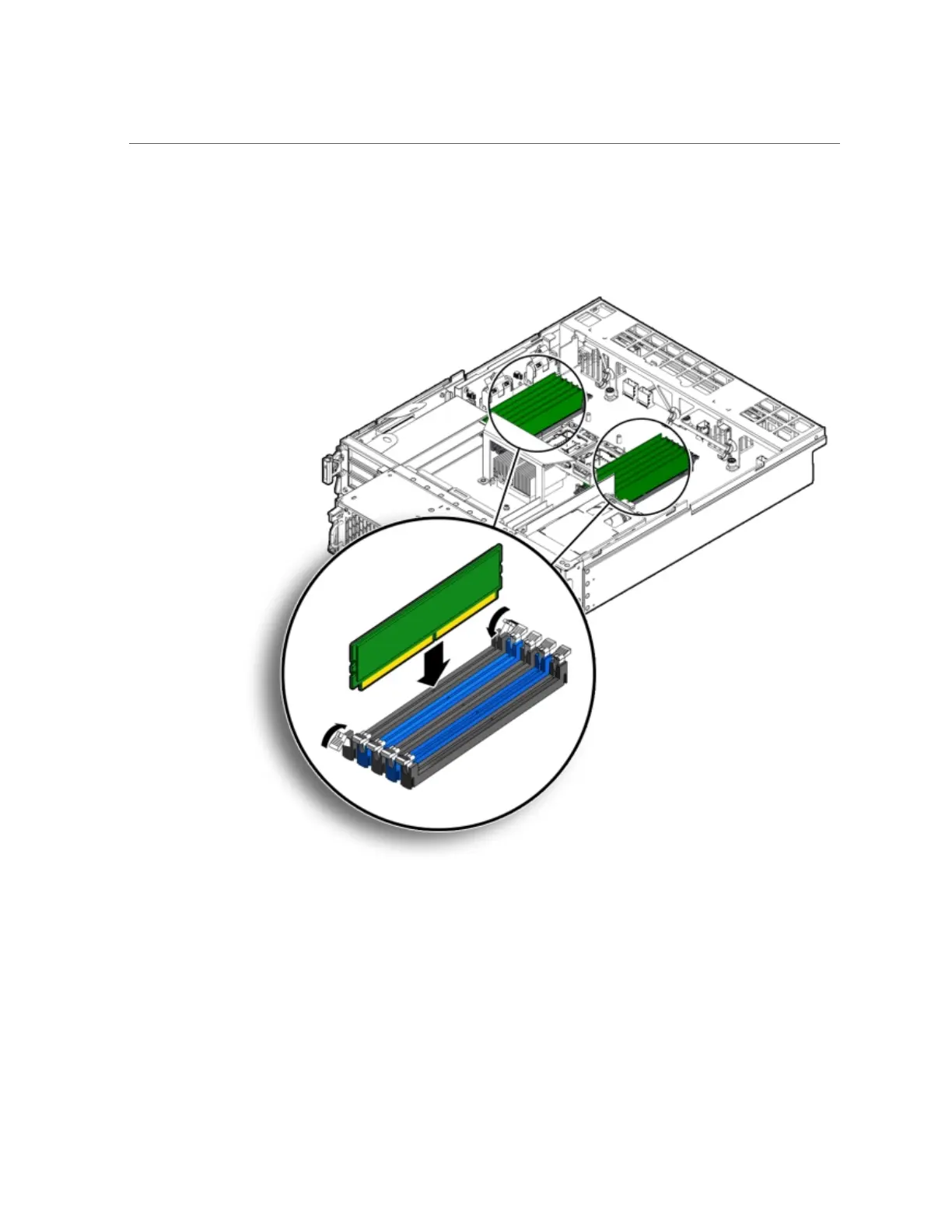

Align the notch in the DIMM with the key in the connector. The notch ensures that the DIMM
is oriented correctly.
5.
Push the DIMM into the connector until the ejector tabs lock the DIMM in place.
If the DIMM does not easily seat into the connector, verify that the notch in the DIMM is
aligned with the key in the connector as shown above. If the notch is not aligned, damage to the
DIMM might occur.
6.
Repeat Step 3 through Step 5 until all replacement DIMMs are installed.
7.
Return the server node to operation.

Oracle Database Appliance Specifications

General

Product Type	Database Appliance
Form Factor	Rack-mountable
Storage Type	SSD
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Storage Expansion	Yes
Maximum Disk Drives	Varies by model (e.g., 12, 18, 36)
