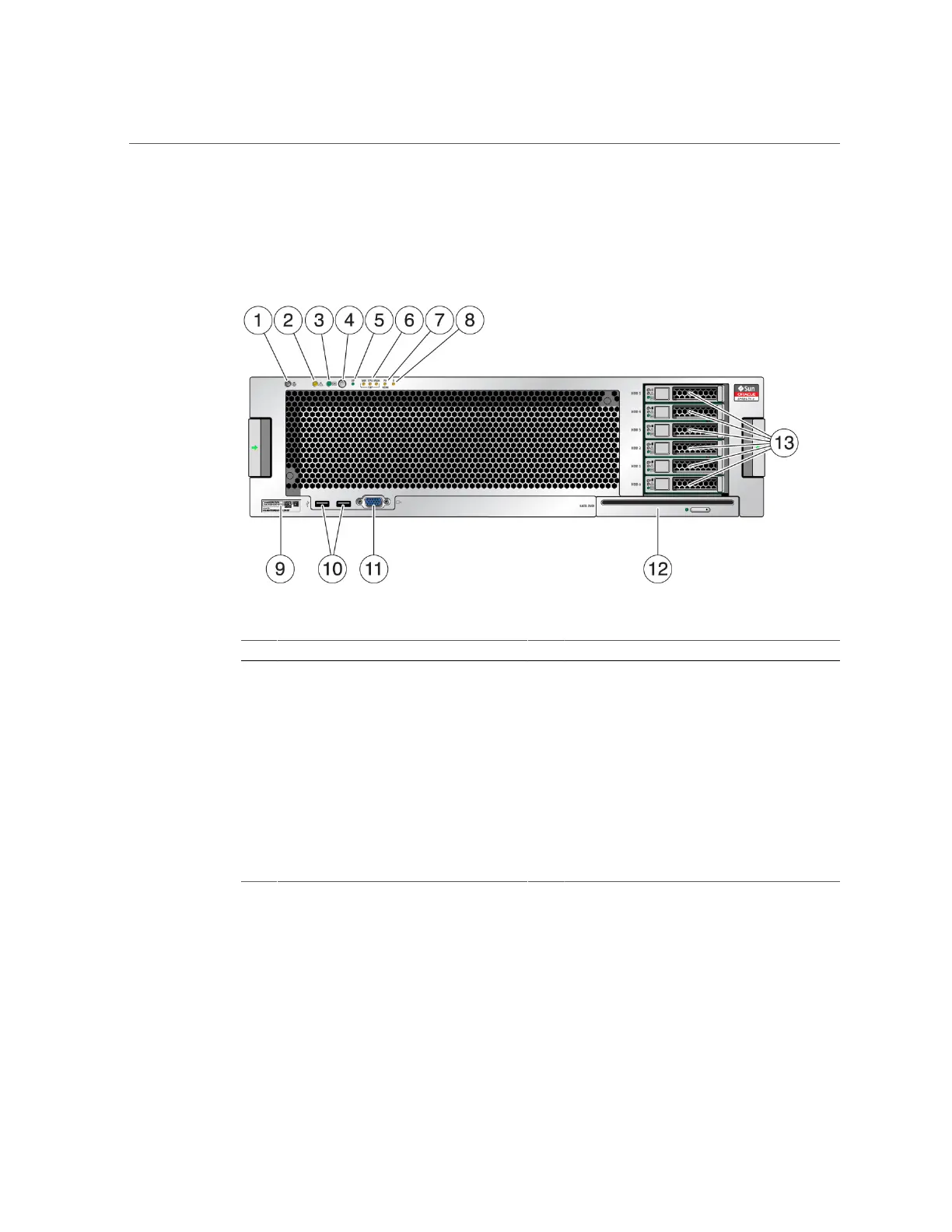

Front Panel Components (Installation)
Front Panel Components (Installation)
No. Description No. Description
1 Locate LED/Locate button (white) 10 USB 2.0 connectors (2)
2 Service Required LED (amber) 11 HD-15 video connector
3 Main Power/OK LED (green) 12 SATA DVD drive
4 Power button 13 HDD Drive 0
5 SP OK/Fault LED (green/amber) 14 HDD Drive 1
6 Service Required LEDs (3) for Fan Module
(FAN), Processor (CPU) and Memory (amber)
15 HDD Drive 2/NVMe 0
7 Power Supply (PS) Fault (Service Required)
LED (amber)
16 HDD Drive 3/NVMe 1
8 Overtemperature LED (amber) 17 HDD Drive 4/NVMe 2
9 Serial number/RFID tag 18 HDD Drive 5/NVMe 3
Related Information
■
“Server Overview” on page 10
■
“Rear Panel Components (Installation)” on page 13
■
“Cabling Requirements” on page 41
12 SPARC T7-2 Server Installation Guide • March 2016
