Identifying Ports
Pin Signal Description Pin Signal Description
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
Related Information
■
“Rear Panel Components (Installation)” on page 13
■
“Connect Ethernet Network Cables” on page 50

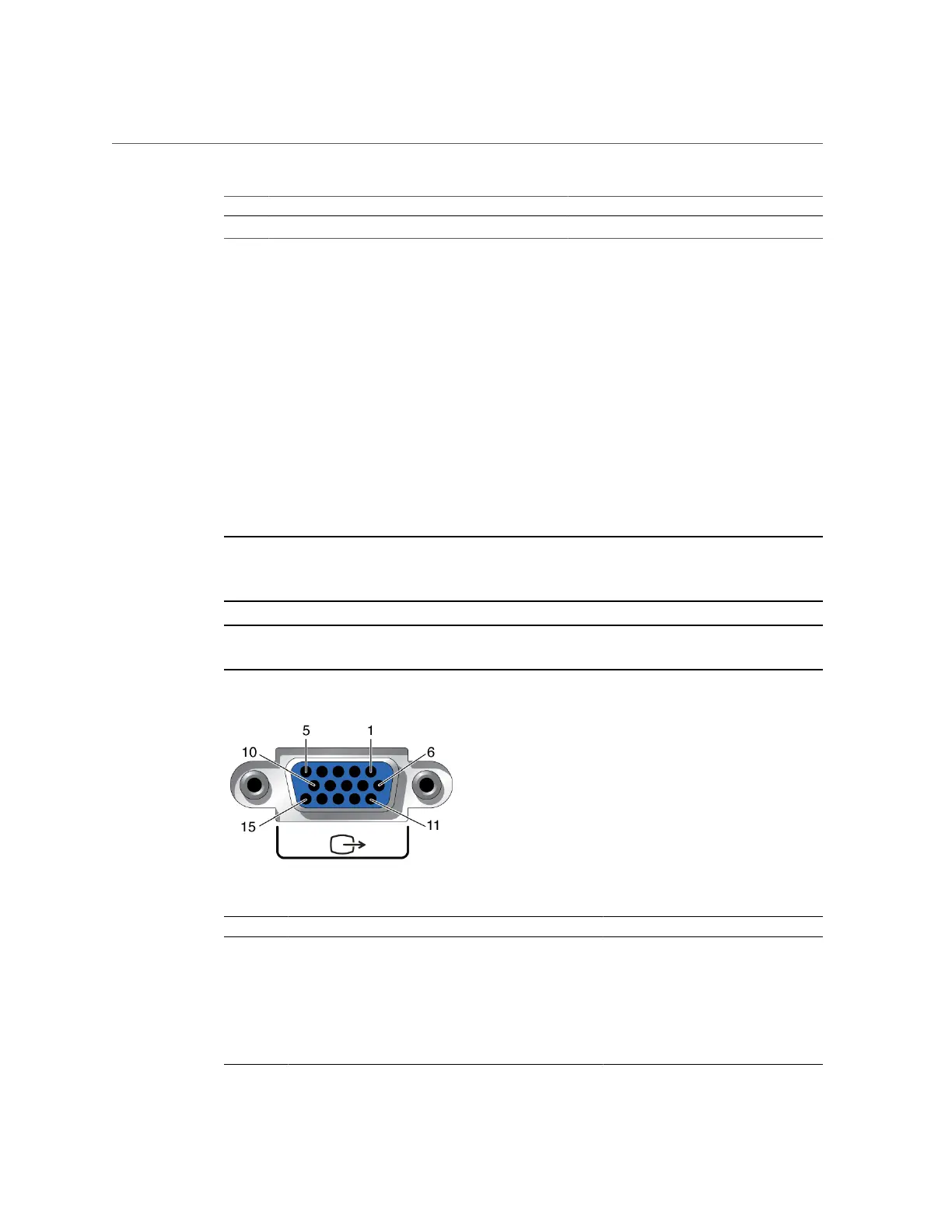

VGA Port
The server has two VGA video ports, one port on the front and one on the rear panel.
See “Front Panel Components (Installation)” on page 12 and “Rear Panel Components
(Installation)” on page 13.
Note - Only one of the two ports can be used at a time. The rear VGA port is disabled by
default. To enable the rear port and disable the front port, you must enable the Oracle ILOM
VGA_REAR_PORT policy: -> set /SP/policy VGA_REAR_PORT=enabled.
Note - The cable length used to connect between the monitor and the VGA port should not be
over 6 meters.
Pin Signal Description Pin Signal Description
1 Red Video 9 [KEY]
2 Green Video 10 Sync Ground
3 Blue Video 11 Monitor ID - Bit 1
4 Monitor ID - Bit 2 12 VGA 12C Serial Data
5 Ground 13 Horizontal Sync
6 Red Ground 14 Vertical Sync
Connecting the Server Cables 47
