Connect the NET MGT Cable
Use an RJ-45 cable that is set up for a null modem configuration, in which the transmit and
receive signals cross over. You can use a crossover adapter with a standard RJ-45 cable to
achieve the required null modem configuration. See “RJ-45 Crossover Pinouts” on page 44.
Note - To achieve 1-GbE network speeds, use Category 6 (or better) cables and network devices
that support 1000BASE-T networks.
Related Information
■
“Connect the NET MGT Cable” on page 49
■
“Connect a Terminal or Emulator to the SER MGT Port” on page 54
■
“SER MGT Port” on page 43

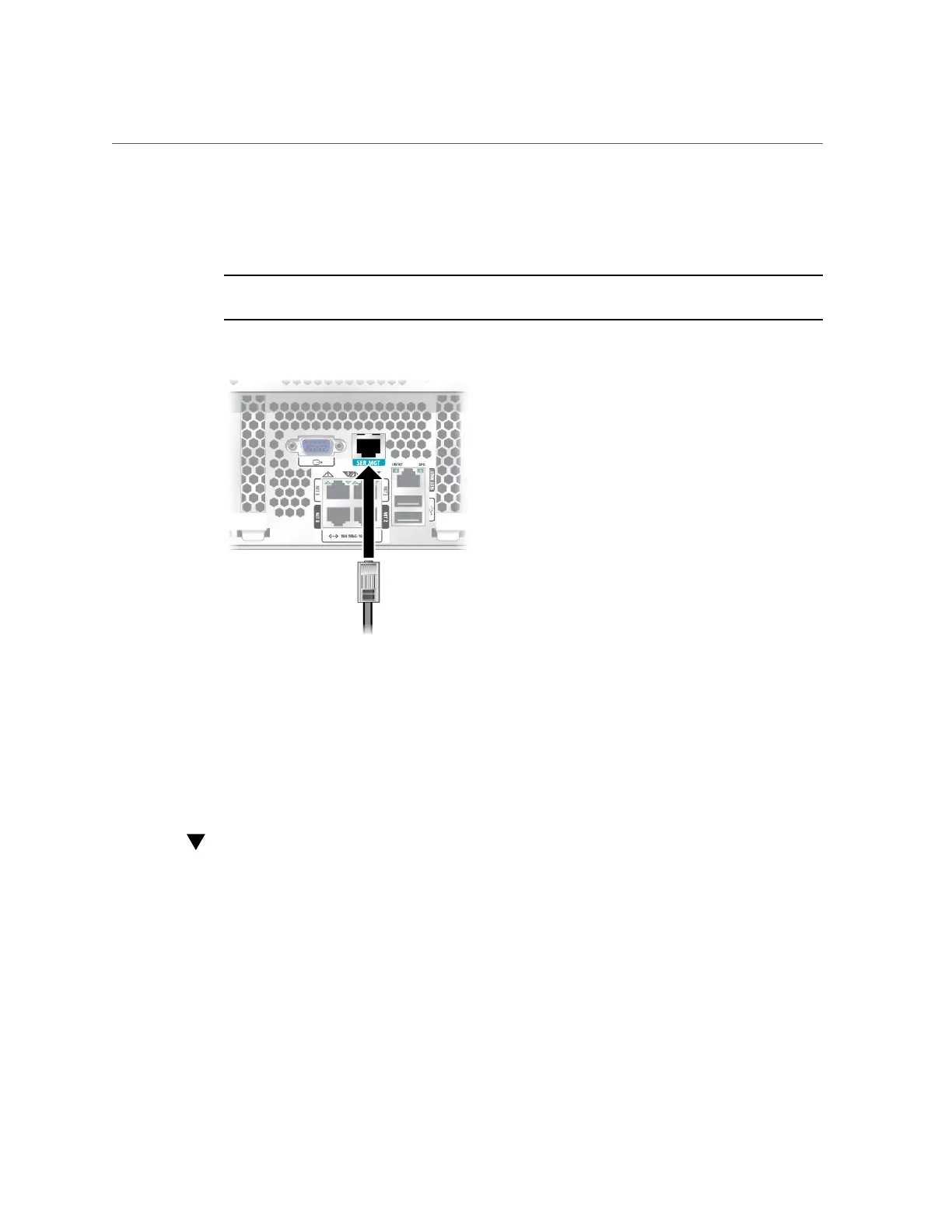

Connect the NET MGT Cable
The SP network management port is labeled NET MGT. After the initial server configuration,
you can connect to the SP over an Ethernet network using this NET MGT port.
If your network uses a DHCP server to assign IP addresses, the DHCP server will assign an IP
address to this NET MGT port. With this IP address, you can connect to the SP using an SSH
connection. If your network does not use DHCP, this NET MGT port will not be accessible
until you configure the network settings through the SER MGT port. For instructions, see
“Assign a Static IP Address to the NET MGT Port” on page 66.
Connecting the Server Cables 49
