Identifying Ports
RJ-45 Crossover Pinouts

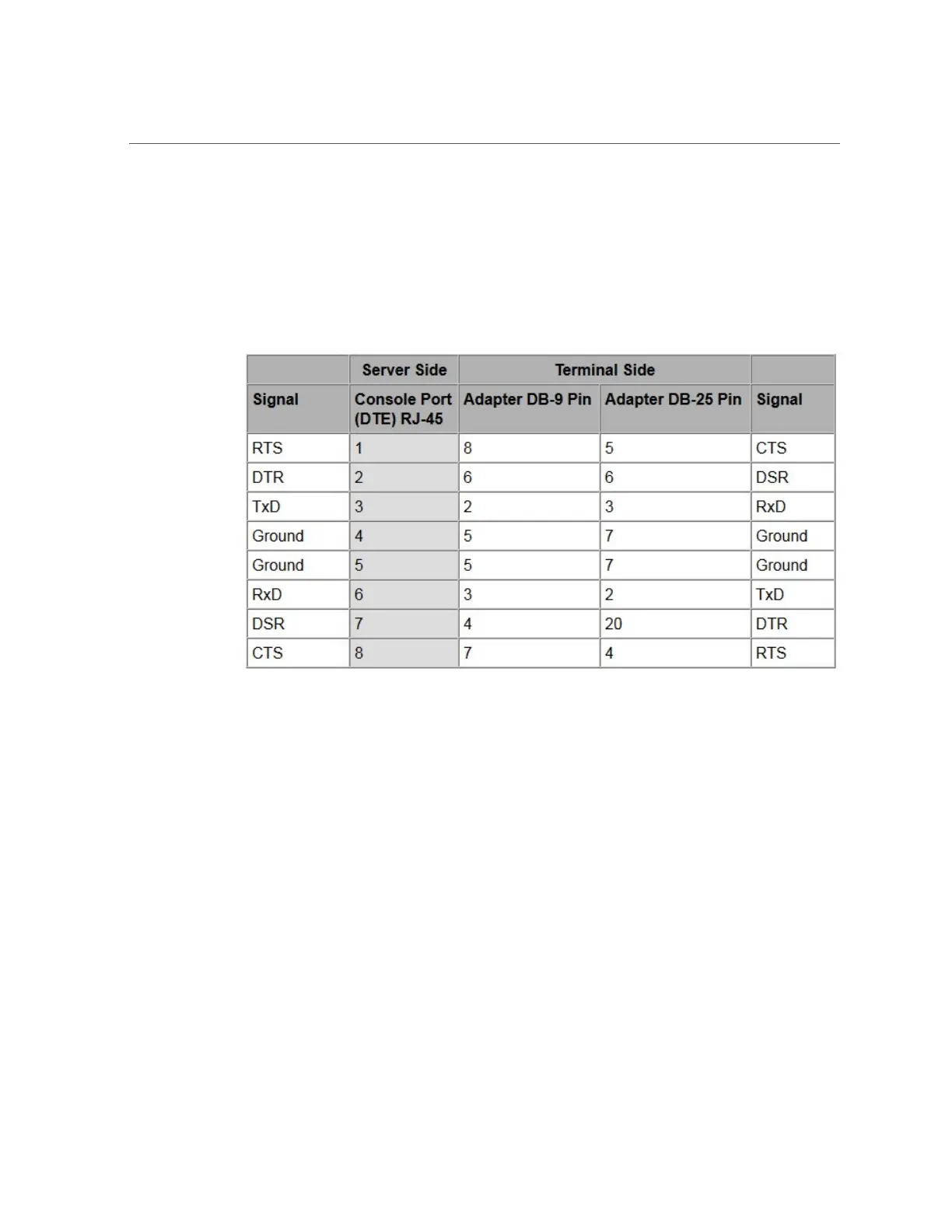

Use this table to identify the appropriate crossover cable or adapter. In this table, the RJ-45
column represents the connector on the system and the DB-9 and DB-25 columns refer to the
connector on the terminal side.
This example shows a diagram of an RJ-45 to DB-9 conversion.
44 SPARC T7-2 Server Installation Guide • March 2016
