Install the Rackmount Hardware
Note - The mounting brackets are identical and can be installed on either side of the chassis.
2.

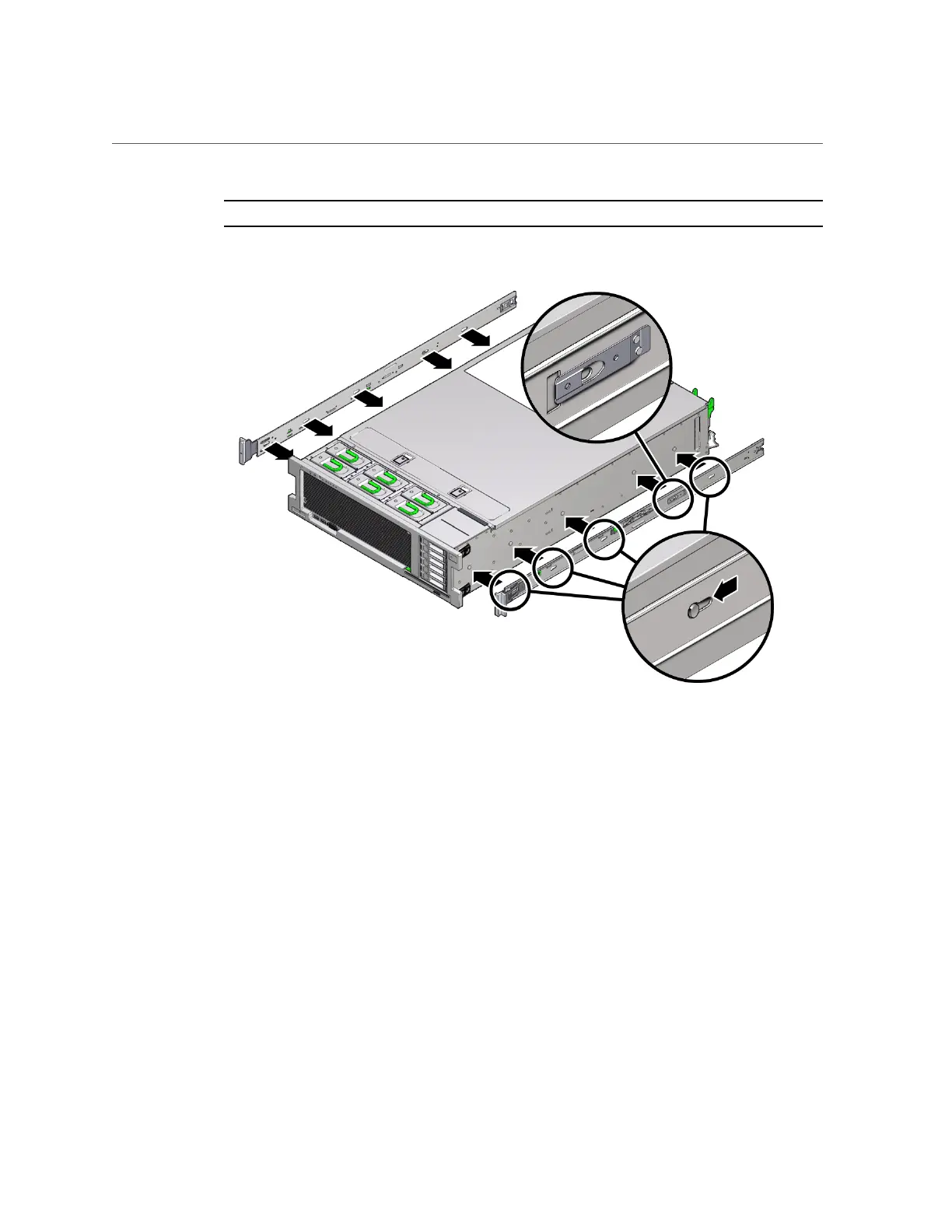

With the heads of the five chassis locating pins protruding though the five
keyhole openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click.
3.
Verify that the rear locating pin has engaged the mounting bracket clip.
4.
Repeat to install the remaining mounting bracket on the other side of the server.
Related Information
■
“Disassemble Slide Rails” on page 27
■
“Attach Slide Rail Assemblies to the Rack” on page 30
■
“Install the Server” on page 33
Installing the Server 29
