You can also access the "Settings" panel and the "Statistics" panel for each port (see
below).
The PTP Settings Panel
The Settings Panel provides access to the configuration settings, divided into three tabs,
which are described below. Each tab allows you to Restore defaults.
Note: The Restore Defaults button in each PTP Settings panel will restore
ALL the factory defaults for ALL Ethernet ports.
Settings changed by the user will be maintained when the PTPdaemon is stopped and star-
ted, and between reboots and powercycles.

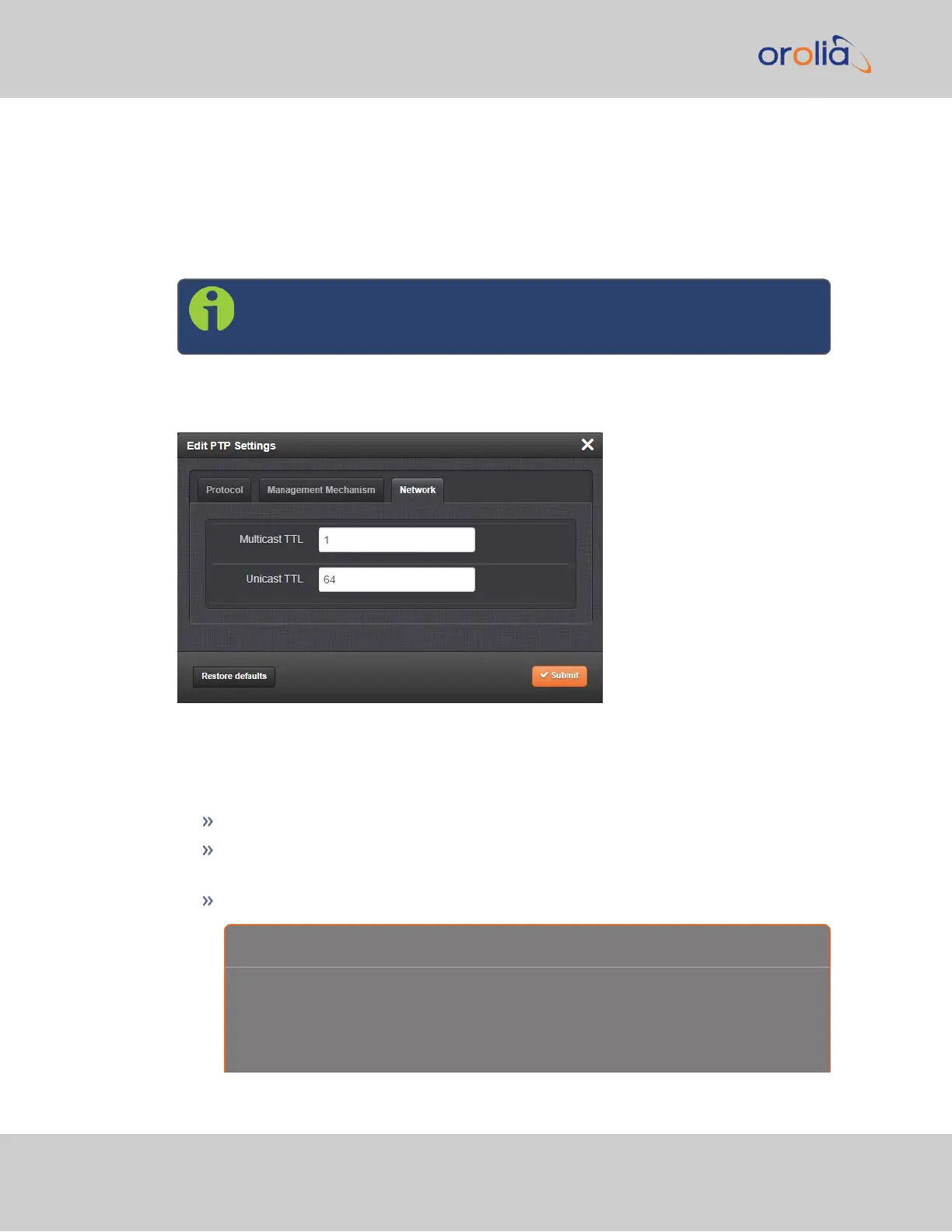

Figure 2-7: Edit PTP Settings panel
Protocol tab
PTP version: [1, 2] Select Version 1 or Version 2.
Domain: [1 through 127] Sets the current PTP Domain Number, as defined in IEEE
Std 1588-2008 Section 7.1
Communication Mode: Select multicast, hybrid, or unicast mode.
A b o u t … P T P T r a n s m i s s i o n M o d e s
The PTP Card is able to transmit the PTP packets in three transmission modes:
• Multicast Mode: PTP packets are transmitted to all PTP Clocks by means of Mult-
icast IP addresses dedicated to the PTP protocol (224.0.1.129, 224.0.0.107). PTP packets
received by the PTP Clocks are then filtered from the Domain Number, the Port
130
CHAPTER 2 • VersaSync User Manual Rev. 7.0
