1.3 Status LEDs

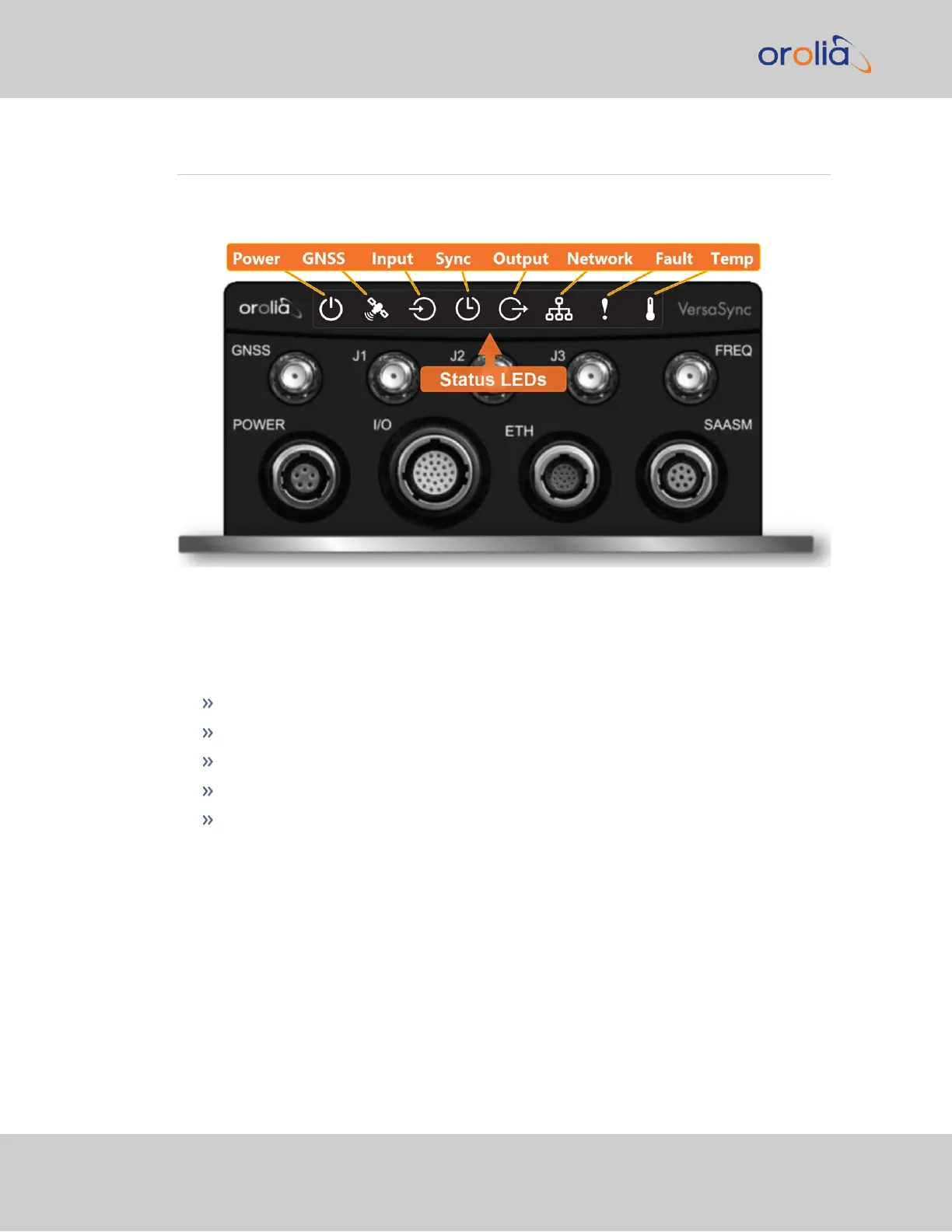

VersaSync's front panel status LEDs provide a real-time status overview: Eight (8) LEDs
indicate the unit's current operating state:
The LEDs can be disabled, see "Blackout Mode" on page6.
1.3.1 Blinking Intervals
The status LEDs can communicate five different operating states:
"OFF"
"ON"
"FAST": blinking interval @ 8Hz
"SLOW": blinking interval @ 2Hz
"HEARTBEAT": sinus-shaped interval @ 1Hz
1.3.2 LED Lighting Patterns
The table below indicates LED status light patterns for common VersaSync operating
statuses.
